Samples

20 designs that show what the generator can do

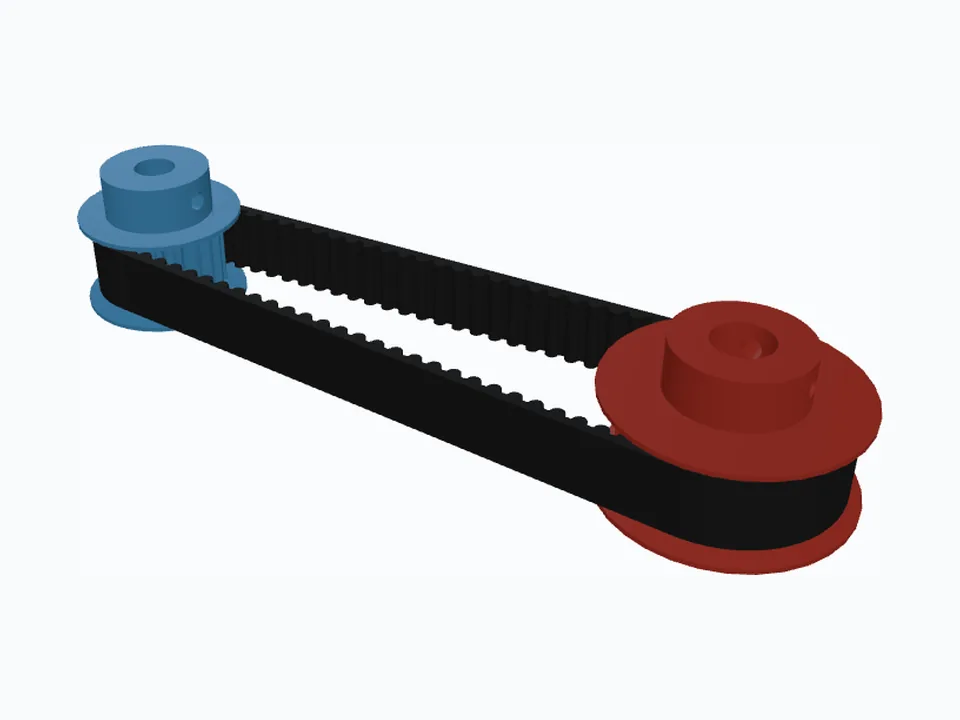

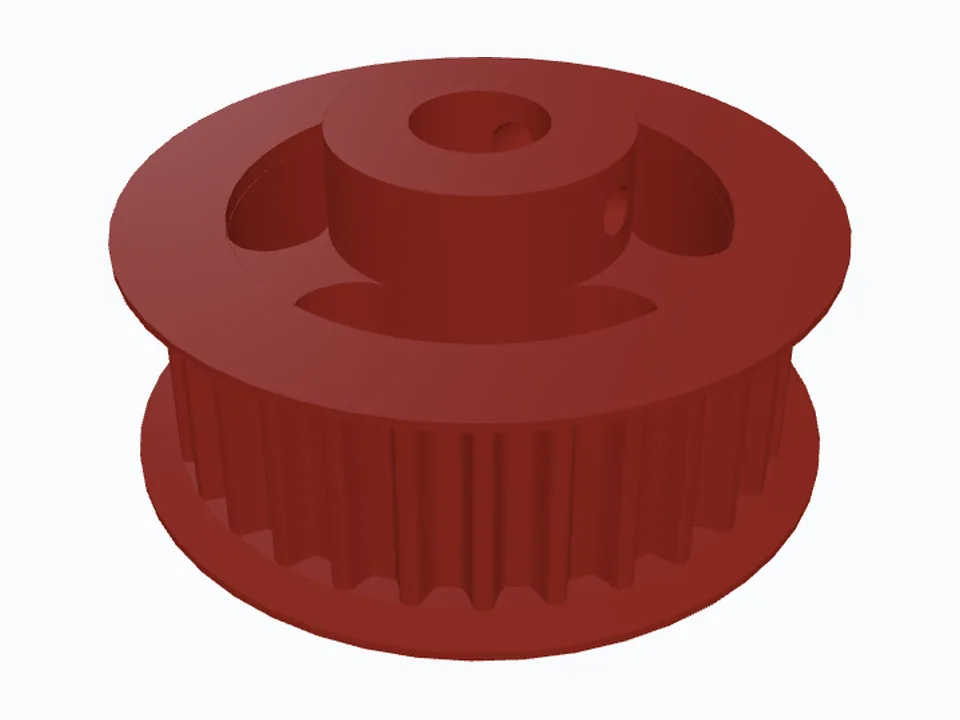

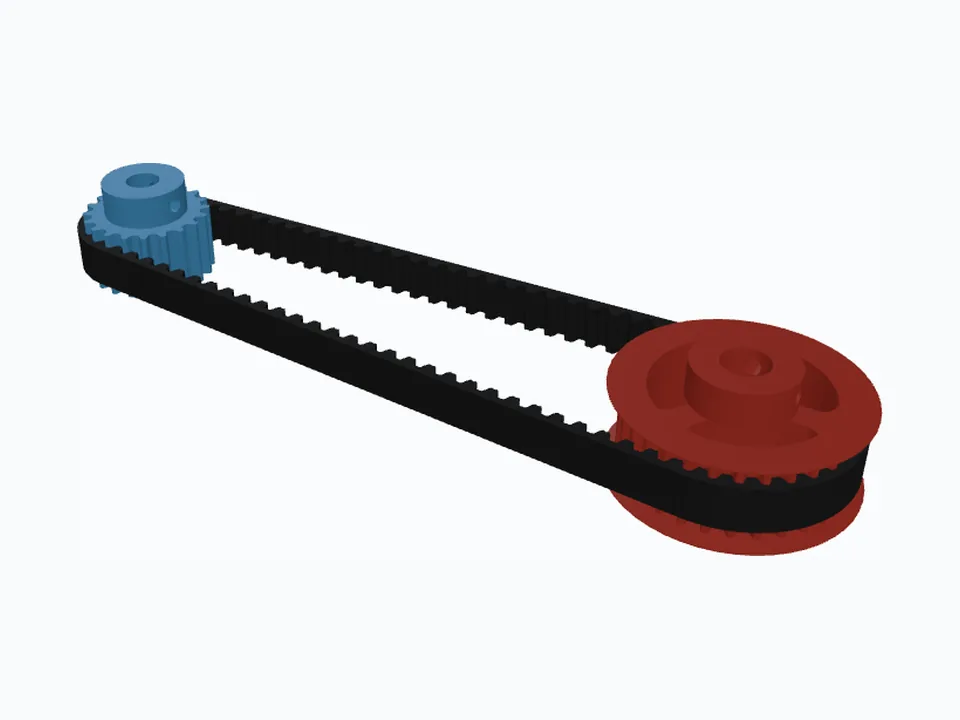

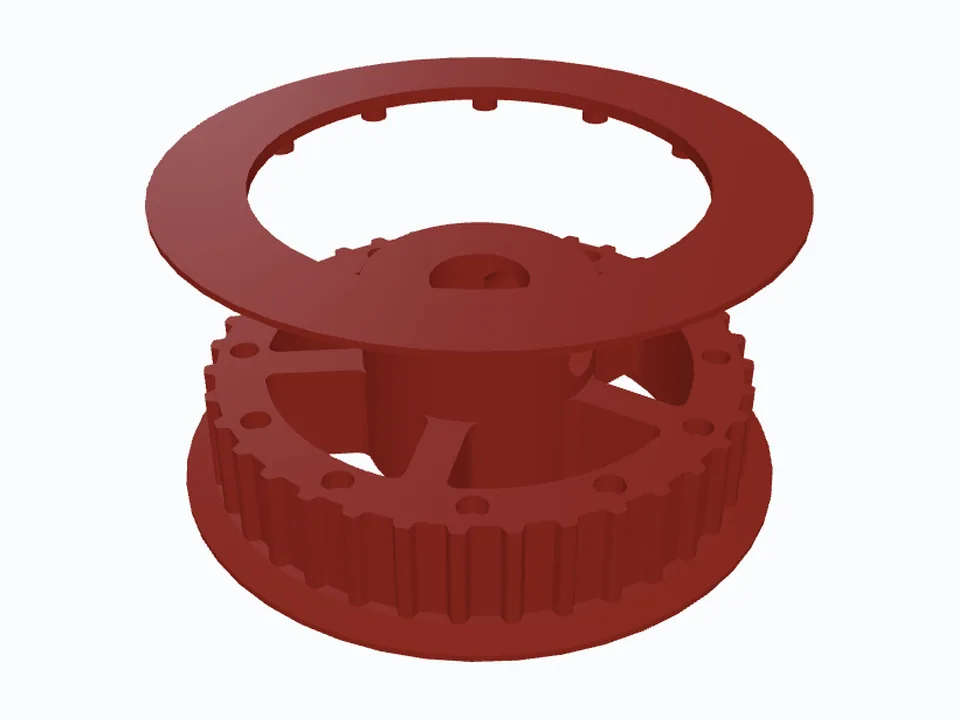

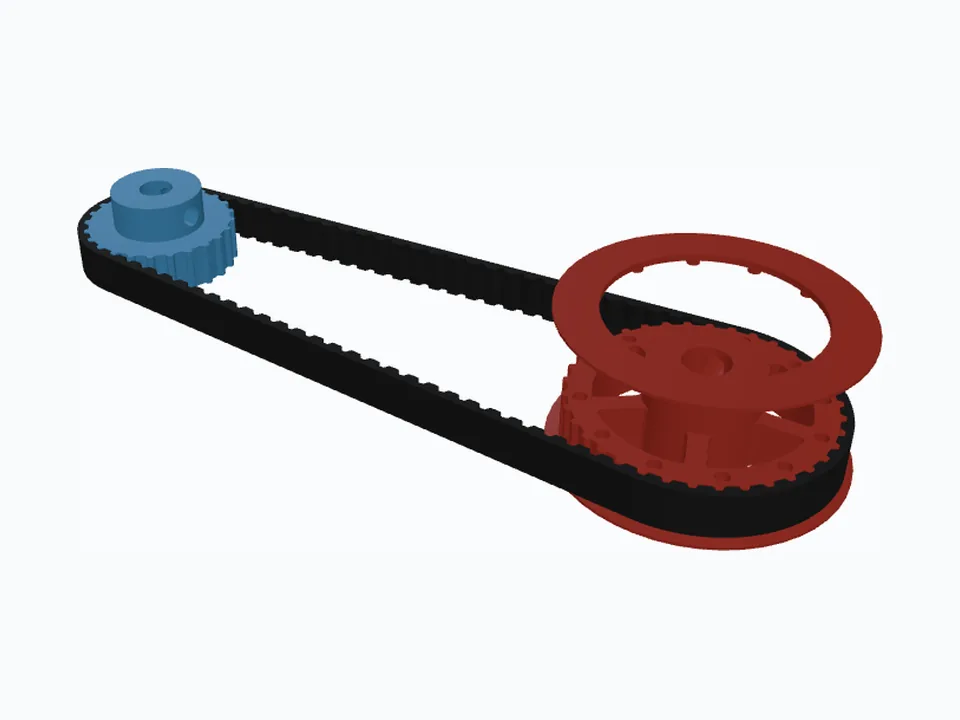

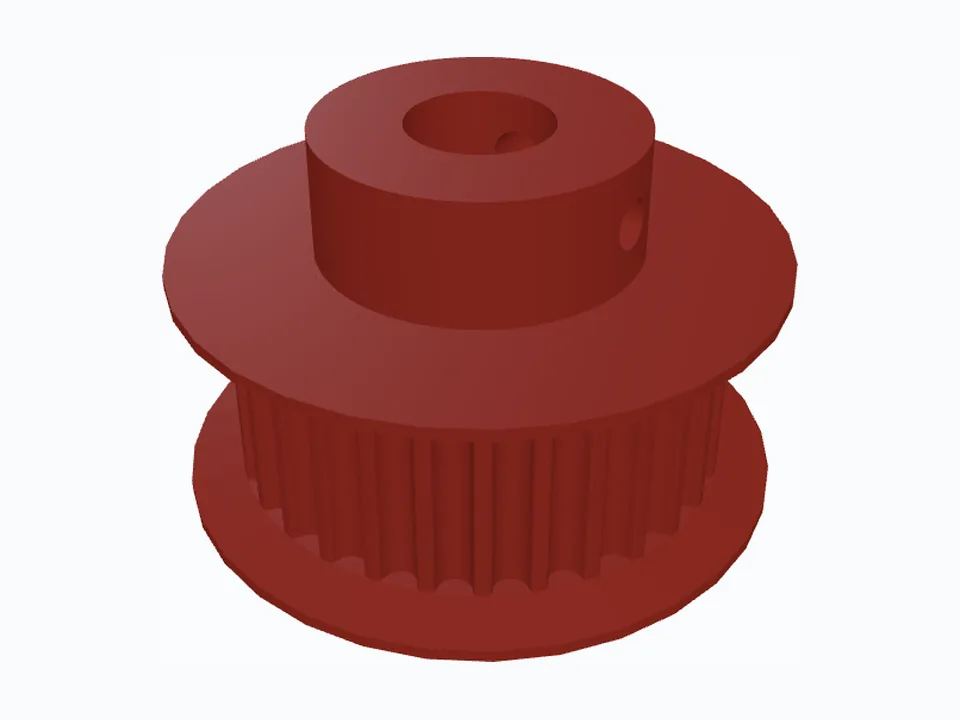

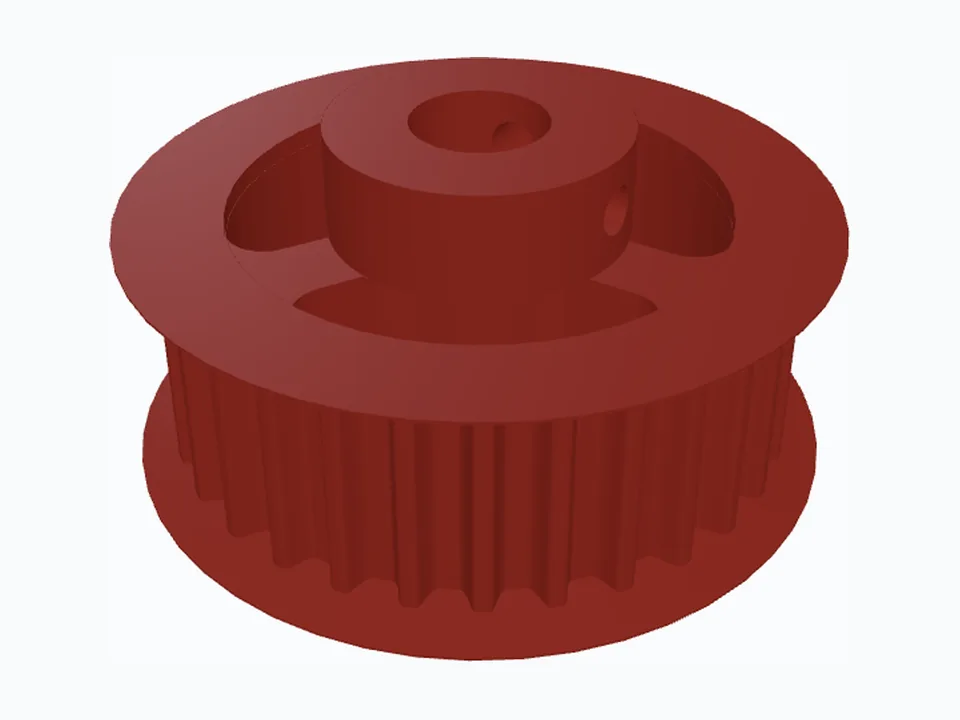

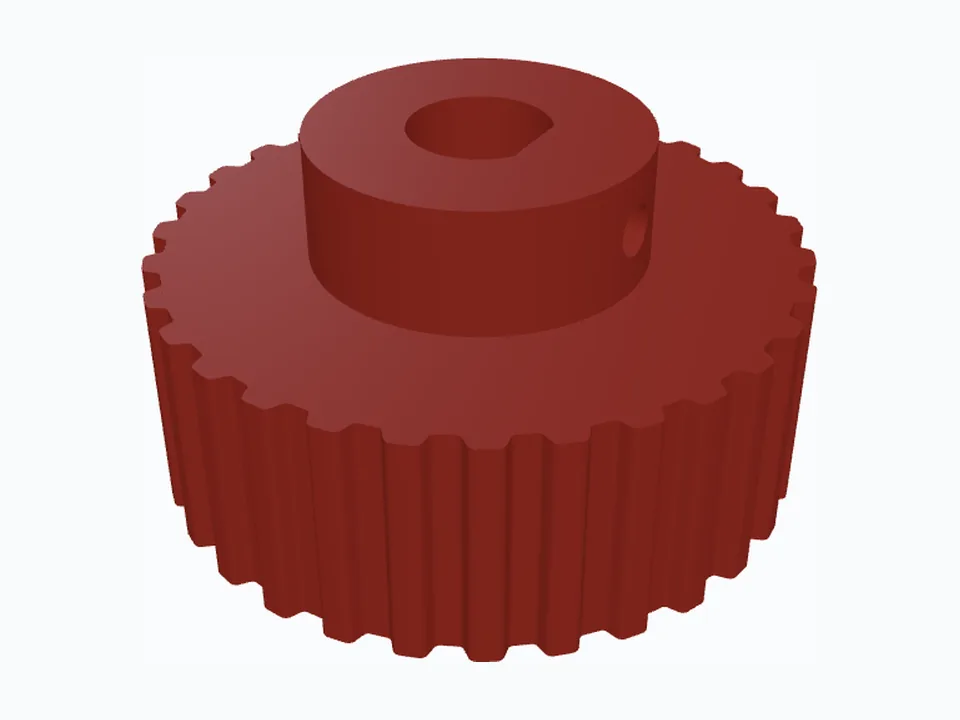

Every sample is a complete two-pulley drive with its belt, and each one shows off something different: splined and hex bores, keyways, captured nuts and heat-set inserts, spokes, metal or printed-in-place flanges, a tuned fit. Four of them we printed and ran on a real belt; their cards show the photos. Click one and it opens in the generator with every setting in place, ready to change. The STLs are free to download, and each sample's AI prompt builds it in your AI app. Chain drives or gears? See the 28 sprocket samples, the 25 gear samples, the 18 worm gear samples, the 30 bevel gear samples and the 31 planetary gear samples.

Belt
Feature
40 : 60 · 1 : 1.5 Printed & tested The printed HTD 3M drive from above: the six-spoke 60-tooth pulley and the 40-tooth pulley, each with a D-flat bore and one M4 set screw

HTD 3M 40T & 60T, Printed: D-Flat Bores & Six Spokes

Printed and run on an HTD 315-3M belt: both 5 mm bores carry a D-flat under one M4 set screw in a captured nut, the 60-tooth pulley runs on six spokes, and both print their flanges in place.

HTD 3MD-flatCaptured nutThin-web spokesFlanges printed in place
Open in app → Free STL
30 : 45 · 1 : 1.5 Printed & tested The printed XL drive from above: the five-spoke 45-tooth pulley and the 30-tooth pulley, M5 set screws threaded into the hubs

XL 30T & 45T, Printed: M5 Set Screws Threaded Into the Hub

Printed and run on a 150XL belt: two M5 set screws per hub thread straight into hex-shaped holes in the plastic, with no nut or insert, on 8 mm bores; the 45-tooth pulley has five spokes and both print their flanges in place.

XL (0.200″ pitch)Hex tapped holesThin-web spokesFlanges printed in placePrint supports
Open in app → Free STL
30 : 45 · 1 : 1.5 Printed & tested The printed GT2 30- and 45-tooth pulleys on their belt, tensioned with string and a spring clamp, two M3 set screws in each hub

GT2 30T & 45T, Printed: Three-Spoke Pulley

Printed and run on a GT2 belt: the 45-tooth pulley is cut down to three spokes on a 1 mm web, both pulleys print their flanges in place on breakaway supports, and two M3 set screws per hub bite into captured nuts.

GT2 (2GT)Captured nutThin-web spokesFlanges printed in placePrint supports
Open in app → Free STL
20 : 30 · 1 : 1.5 GT2 20T & 30T, 5 mm D-Flat Stepper Pulley — 3D view

GT2 20T & 30T, 5 mm D-Flat Stepper Pulley

The 3D-printer classic done properly: a D-flat that keys onto the motor shaft, a set screw that bites into a captured nut instead of the plastic, and a 30-tooth partner held by two heat-set inserts.

GT2 (2GT)D-flatCaptured nutHeat-set insertFlanges printed in place
Open in app → Free STL
24 : 36 · 1 : 1.5 FRC HTD 5M 24T & 36T, ½" Rounded Hex — 3D view

FRC HTD 5M 24T & 36T, ½" Rounded Hex

Ready for an FRC robot: the bore fits REV ½" rounded hex shaft, with SH-50 retaining-ring grooves on both faces and a splined washer under each ring so nothing walks along the shaft.

HTD 5MRounded hexRetaining ringsSeparate top flange
Open in app → Free STL
40 : 60 · 1 : 1.5 GT2 40T & 60T, Spoked Thin-Web Pulleys — 3D view

GT2 40T & 60T, Spoked Thin-Web Pulleys

Big printed pulleys don't need to be solid: five and six spokes on a thin centre web cut plastic and print time, while the toothed rim stays full width for the belt.

GT2 (2GT)Thin-web spokesFlanges printed in place
Open in app → Free STL

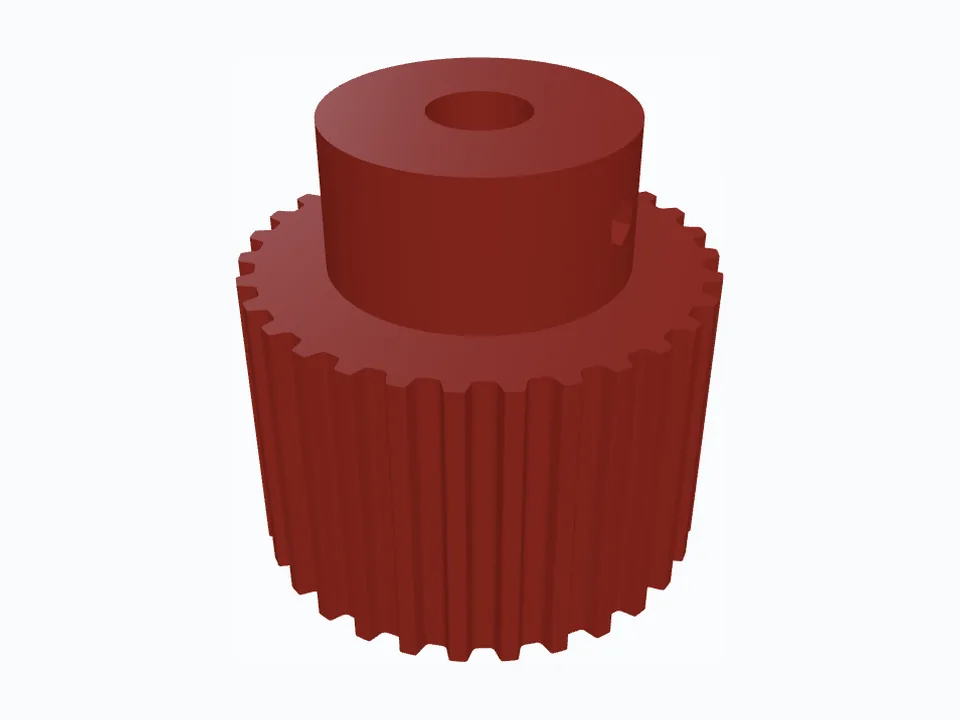

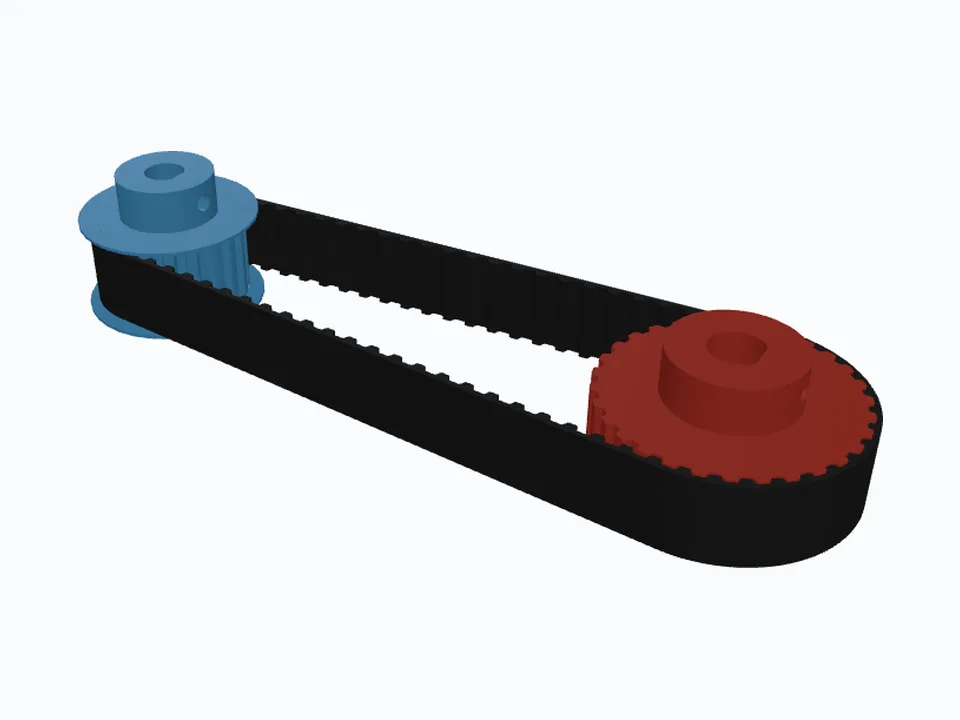

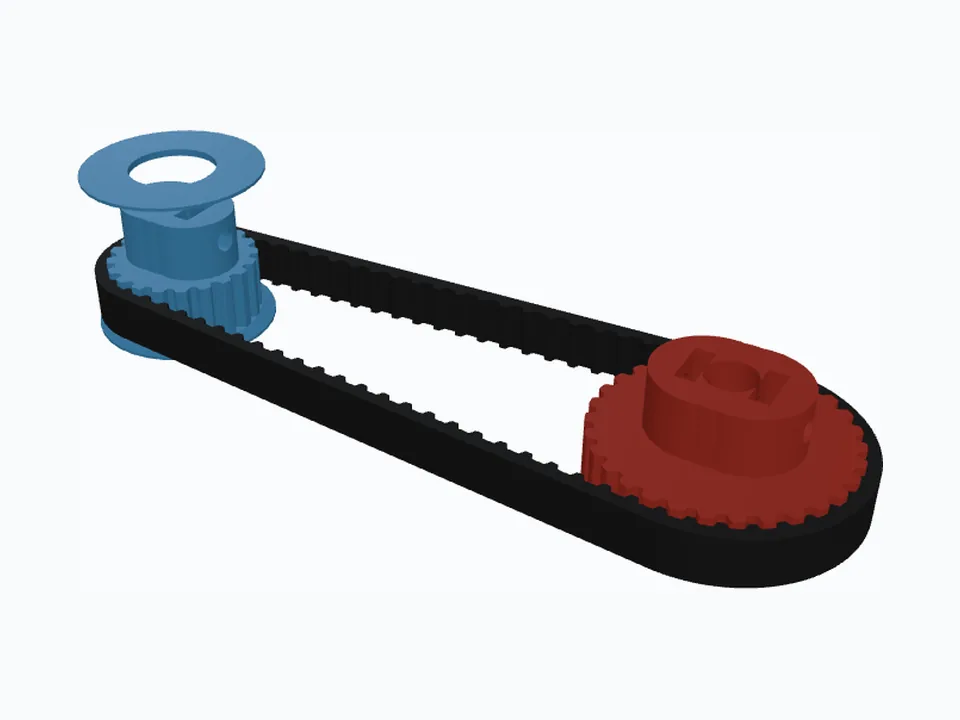

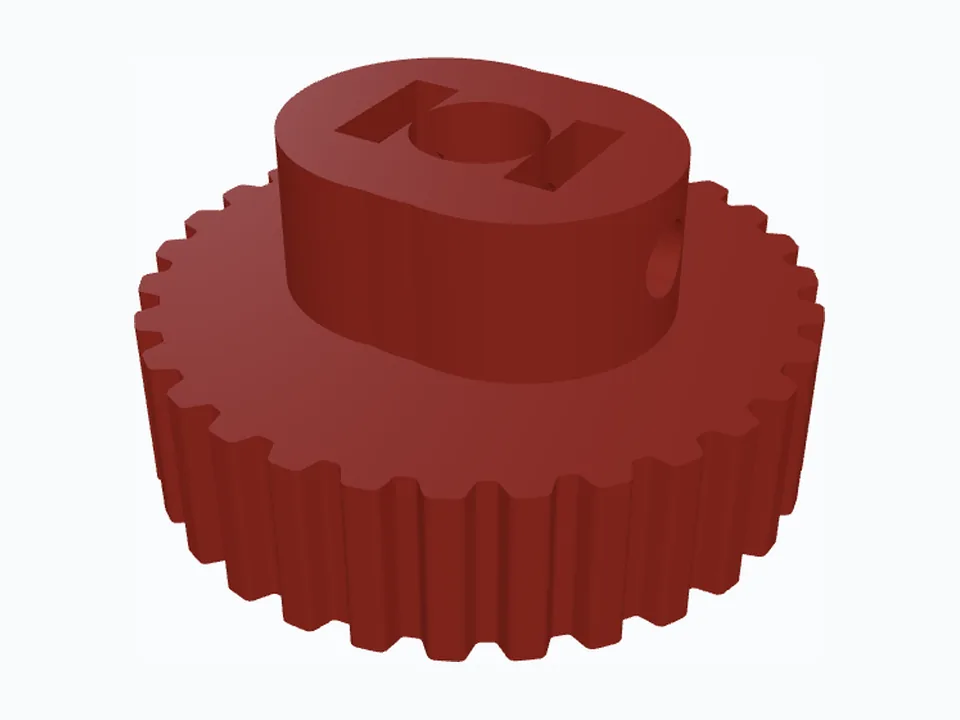

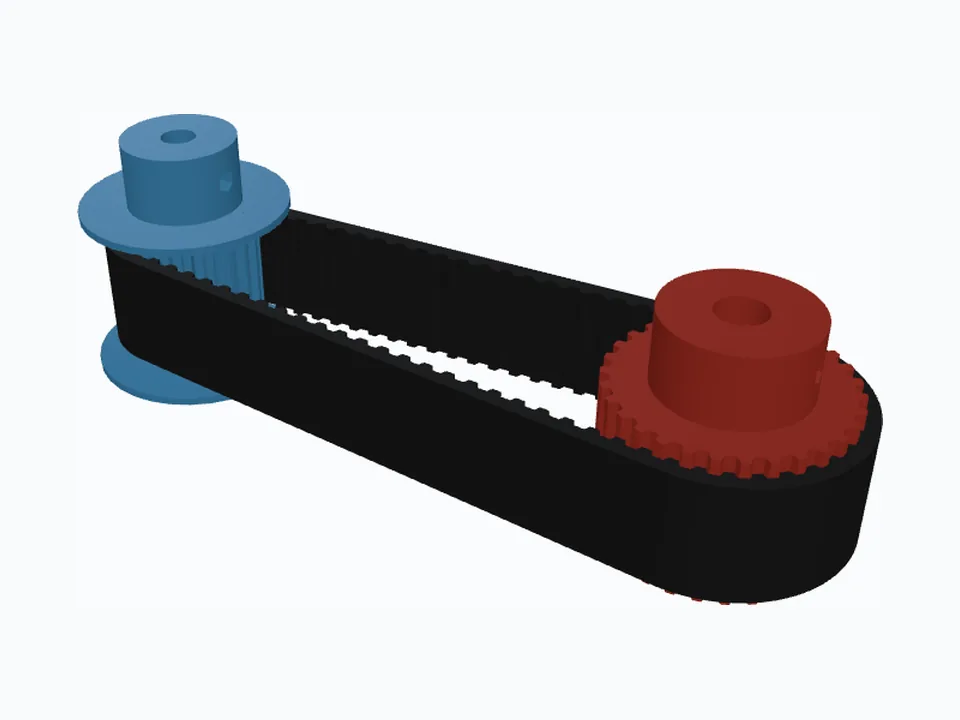

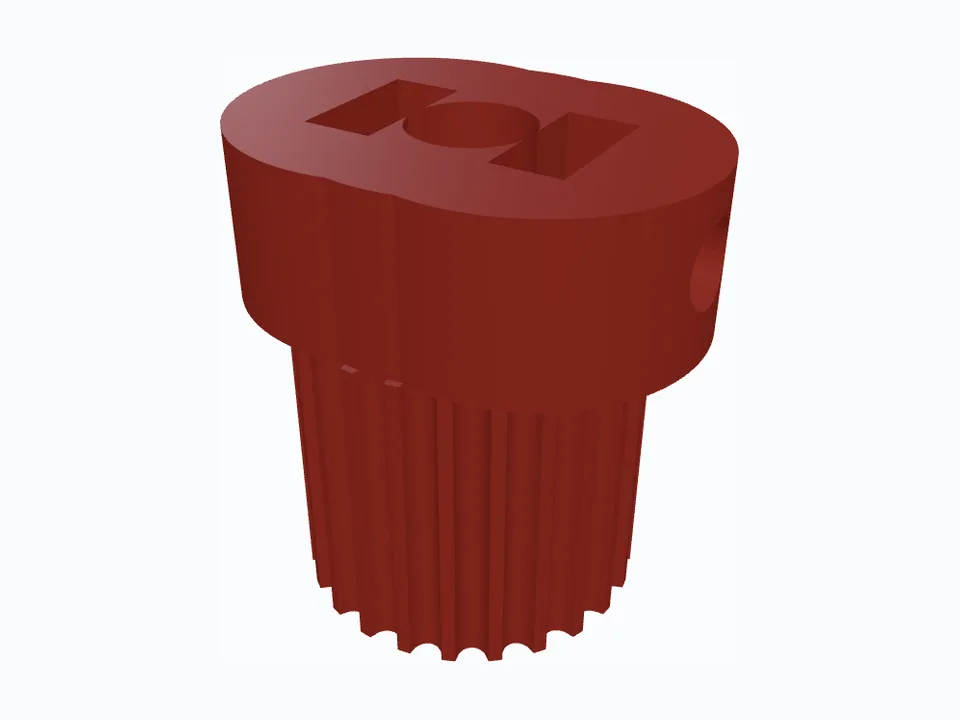

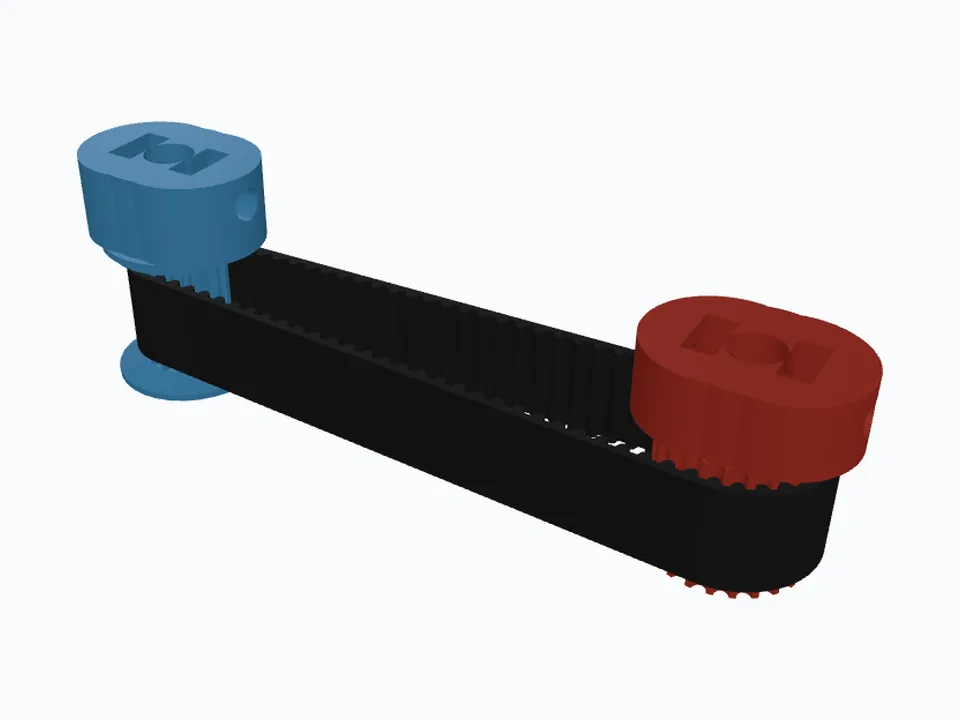

16 : 24 · 1 : 1.5 GT2 16T & 24T, Zero-Backlash Fit — 3D view

GT2 16T & 24T, Zero-Backlash Fit

Tuned for positioning rather than power: tight tooth clearance, no backlash allowance and 0.1 mm of print compensation, so the printed teeth hold the belt without slop.

GT2 (2GT)Captured nutFlanges printed in placeZero backlashPrint compensation
Open in app → Free STL

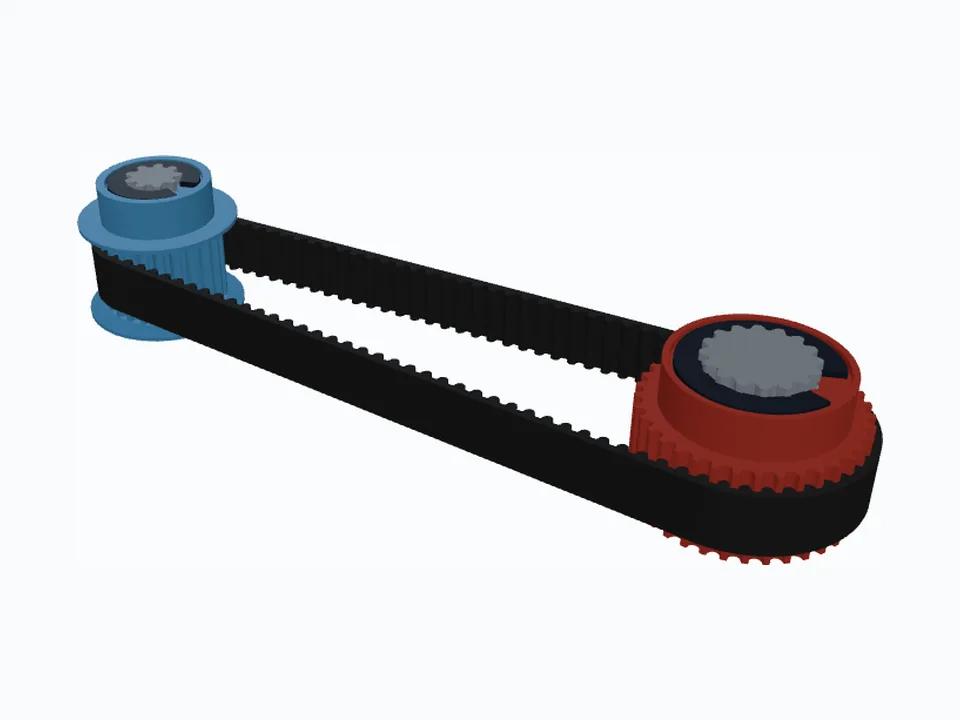

24 : 36 · 1 : 1.5 HTD 3M 24T & 36T, ISO 4156 Involute Splines — 3D view

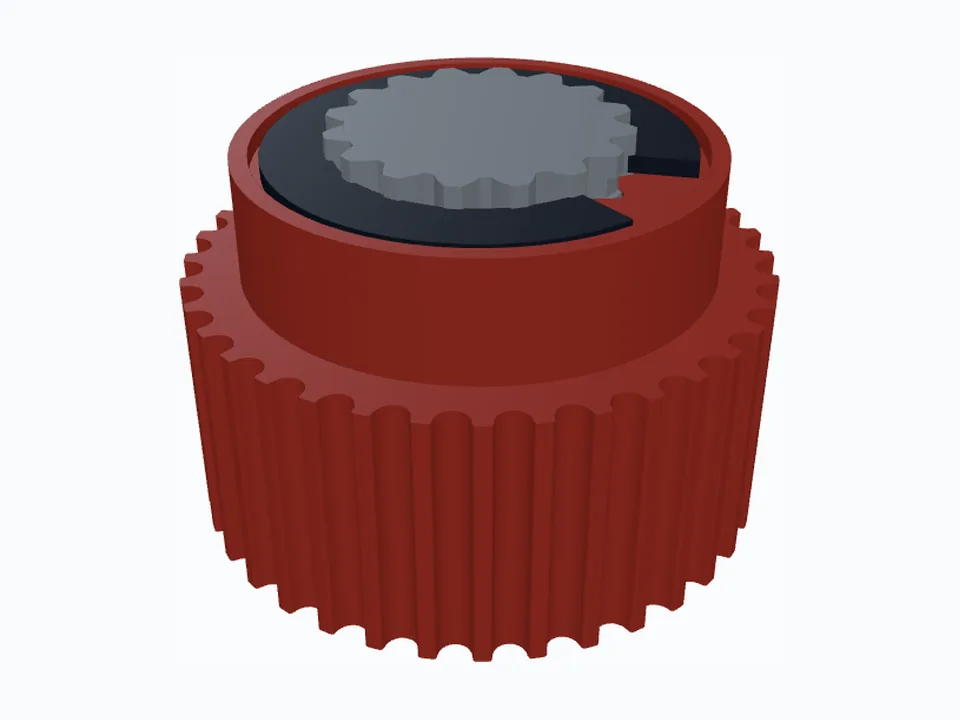

HTD 3M 24T & 36T, ISO 4156 Involute Splines

Splined like a gearbox shaft: ISO 4156 involute splines in module 1, with a flat root at 30° on the small pulley and a fillet root at 37.5° on the large one.

HTD 3MInvolute splineRetaining ringsFlanges printed in placePrint supports
Open in app → Free STL

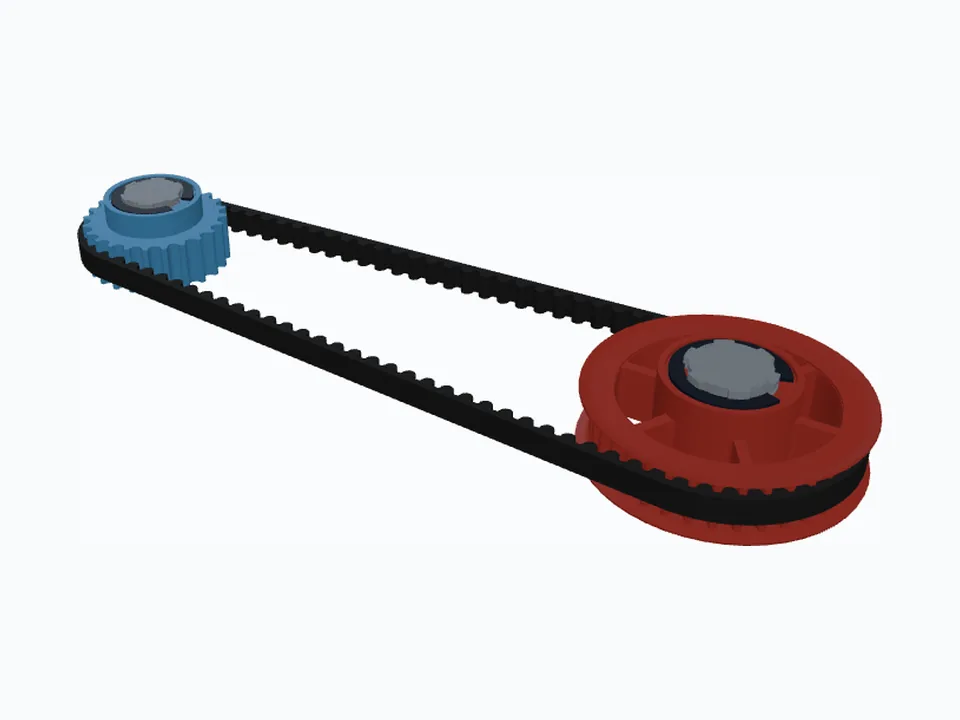

24 : 36 · 1 : 1.5 HTD 8M 24T & 36T, ISO 14 Splined Bores — 3D view

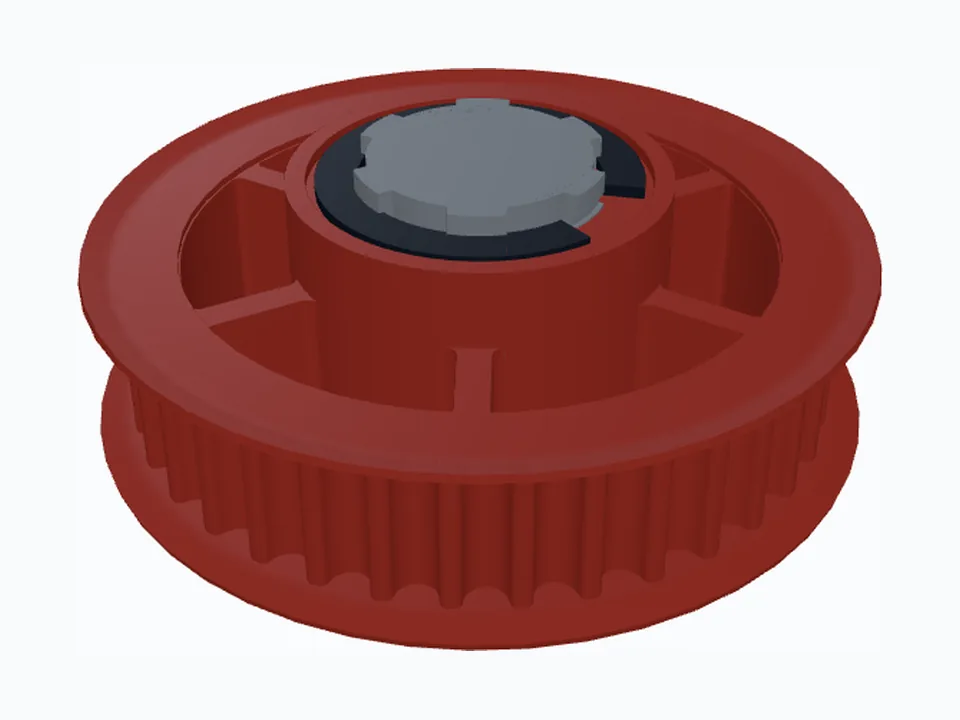

HTD 8M 24T & 36T, ISO 14 Splined Bores

Heavy-duty HTD 8M on splined shafts: straight-sided ISO 14 splines carry torque no set screw could, and the 36-tooth pulley is spoked around its spline hub.

HTD 8MISO 14 splineRetaining ringsSpokesMetal flanges
Open in app → Free STL

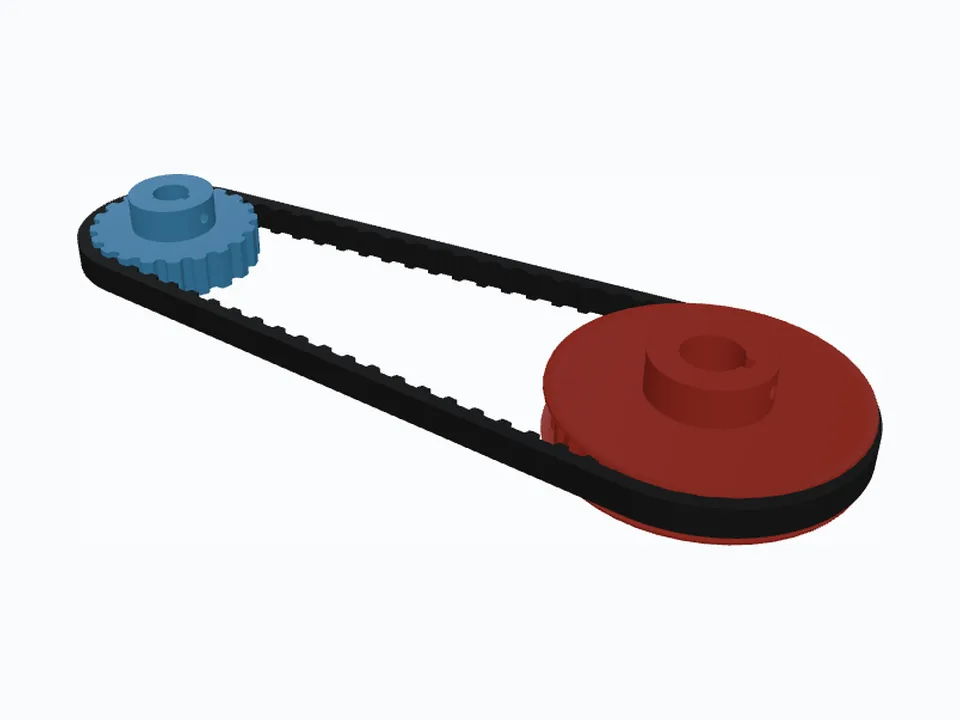

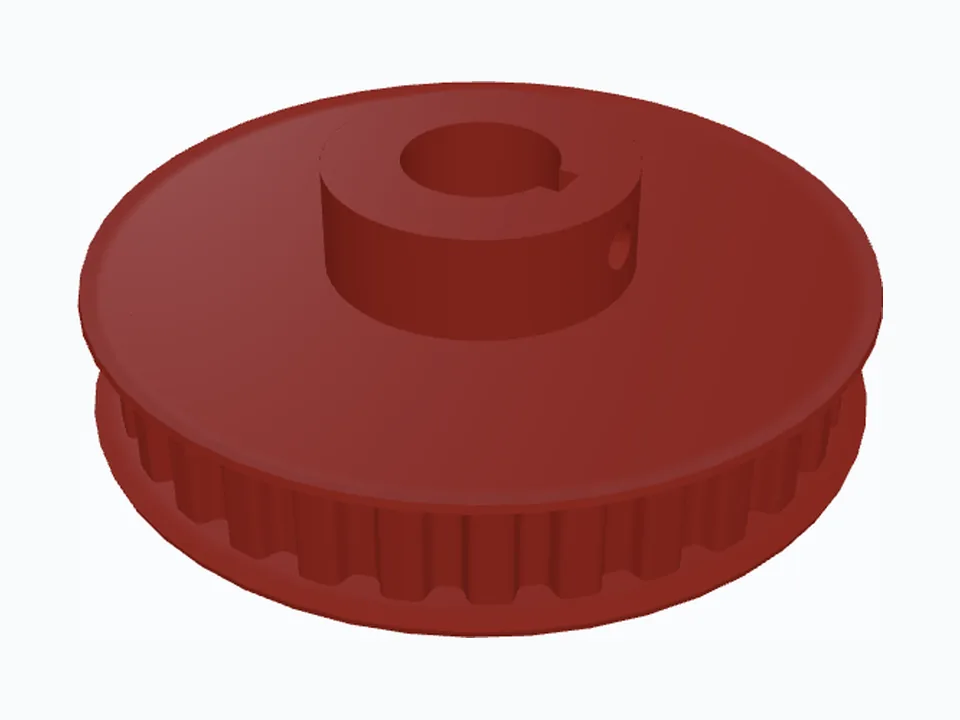

20 : 30 · 1 : 1.5 L 20T & 30T, ½" & ¾" Keyed Bores — 3D view

L 20T & 30T, ½" & ¾" Keyed Bores

The ⅜" L pitch for heavier inch-sized machines: ½" and ¾" bores with ⅛" and 3/16" keyways, and a 1/4-20 set screw on the larger hub.

L (⅜″ pitch)KeywayInch screwsMetal flangesInch bores
Open in app → Free STL

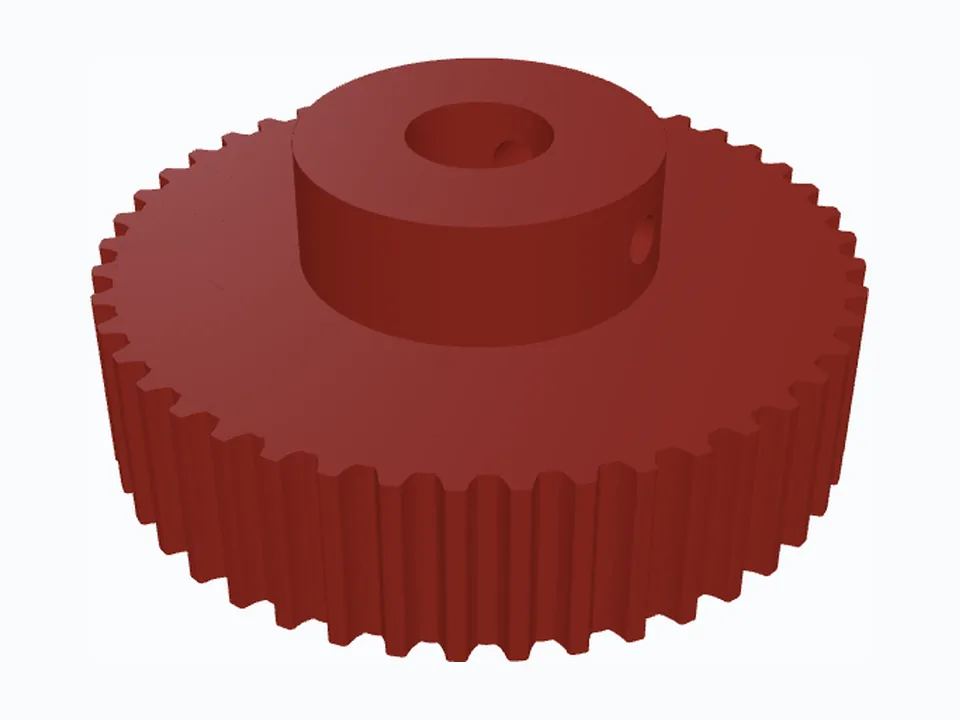

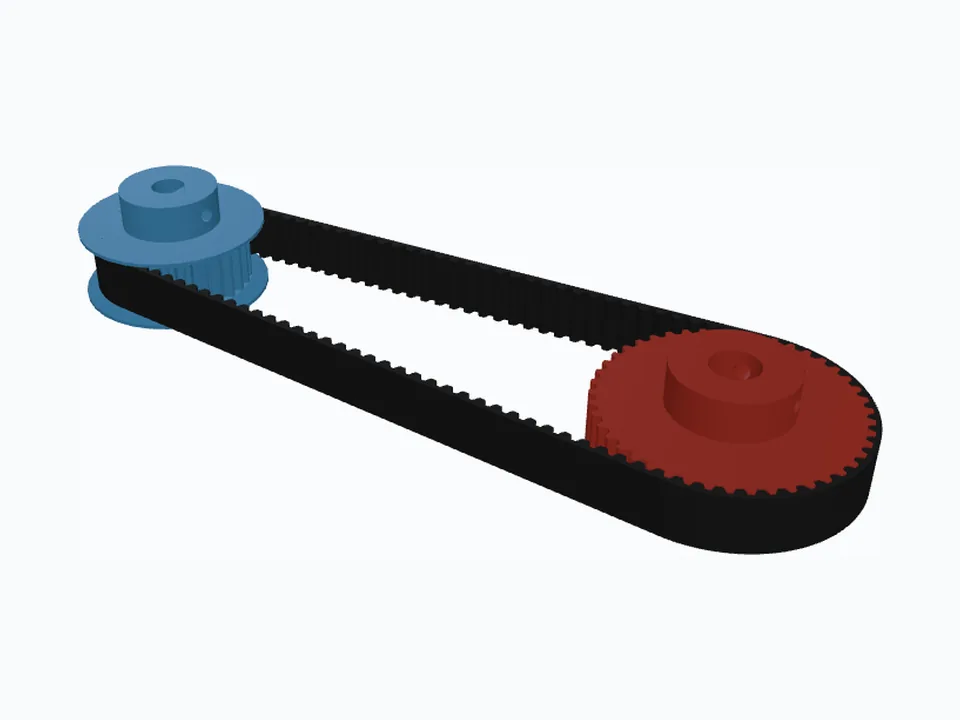

30 : 45 · 1 : 1.5 STD S3M 30T & 45T, Custom Tooth Fit — 3D view

STD S3M 30T & 45T, Custom Tooth Fit

When the presets aren't quite right for your printer: tooth clearance and backlash dialled in by hand, on the round-toothed STD S-series profile.

STD S3MD-flatFlanges printed in placeCustom fit
Open in app → Free STL

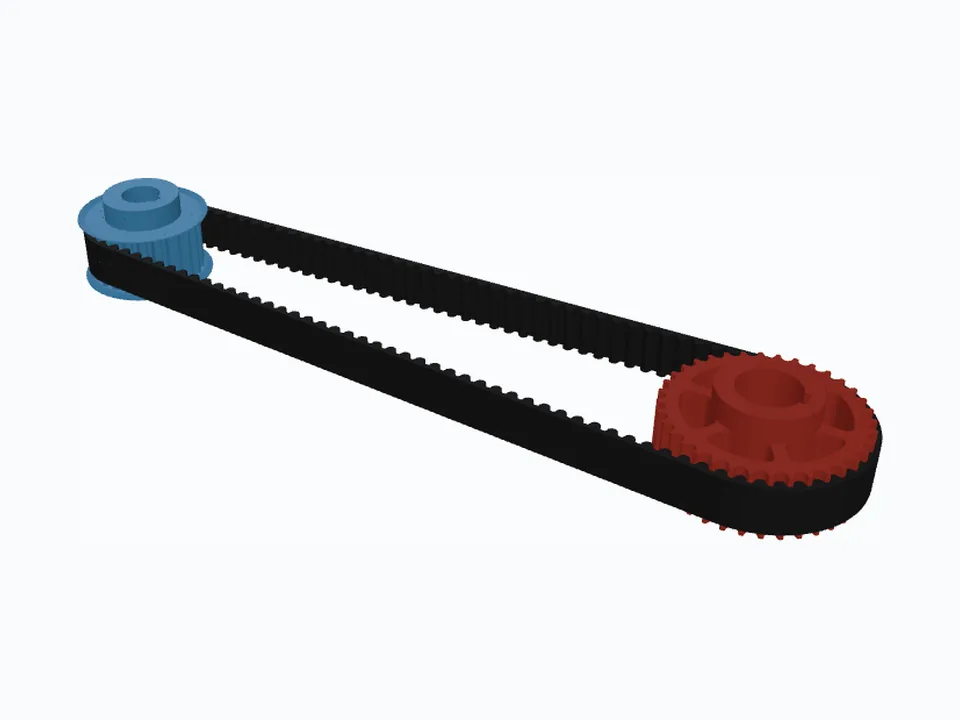

24 : 36 · 1 : 1.5 HTD 14M 24T & 36T, Industrial Size — 3D view

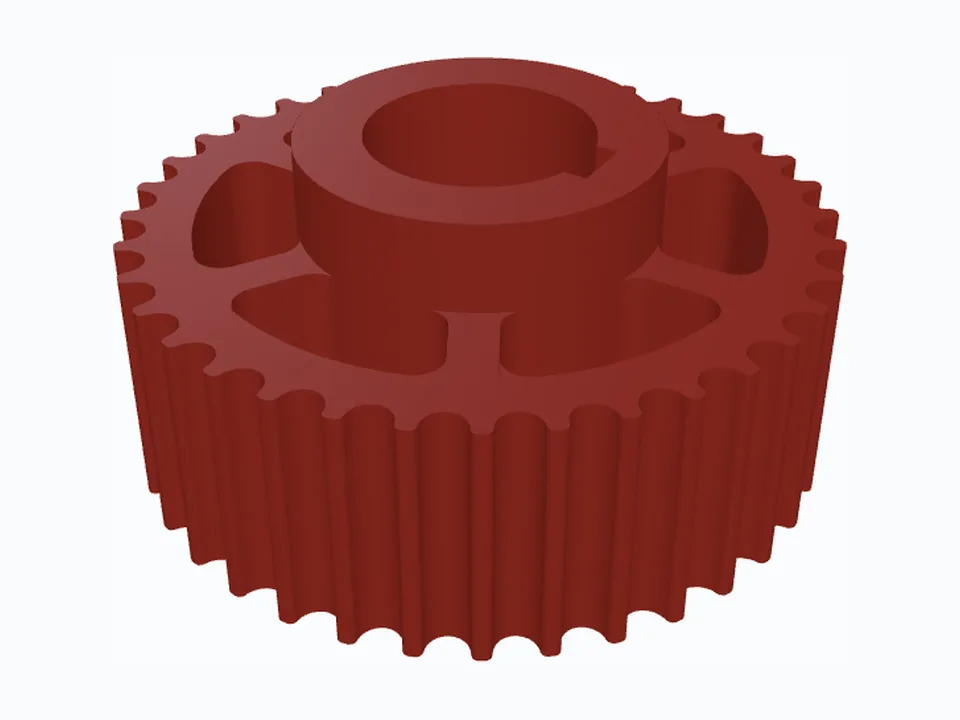

HTD 14M 24T & 36T, Industrial Size

Industrial scale: an HTD 14M drive for a 40 mm belt, keyed 35 mm and 50 mm bores, a spoked 36-tooth pulley over 160 mm across, and metal-plate flanges.

HTD 14MKeywaySpokesMetal flangesWide belt
Open in app → Free STL

Apart from the printed 1 : 5 STD drive, every sample is a 1 : 1.5 drive. Chain drives are in the sprocket samples, gears in the gear samples. Free sample files are CC BY 4.0: credit “CheapCADTools — cheapcadtools.com” when you share them.
