L-pitch timing pulleys with keyed ½" and ¾" bores

The ⅜" L pitch for heavier inch-sized machines: ½" and ¾" bores with ⅛" and 3/16" keyways, and a 1/4-20 set screw on the larger hub.

L (⅜″ pitch)KeywayInch screwsMetal flangesInch bores

Build it with your AI

Using the CheapCADTools connector, design a two-pulley timing belt drive: L belt (⅜" pitch), about 200 mm between centres. Pulley 1: 20 teeth, ½" bore with a ⅛" wide, 1.6 mm deep keyway, a hub 30 mm across and 12 mm tall with a #10-24 set screw. Pulley 2: 30 teeth, ¾" bore with a 3/16" wide, 2.4 mm deep keyway, a hub 38 mm across and 12.7 mm tall with a 1/4-20 set screw, and flanges drawn as metal plates. Check the design, apply any Auto-fix it suggests, then export both pulleys as STL and give me the download link.

Paste it into Claude, ChatGPT or any AI app with the CheapCADTools connector, and it designs this drive with you, checks it and hands you the files. How to connect your AI.

What's in this design

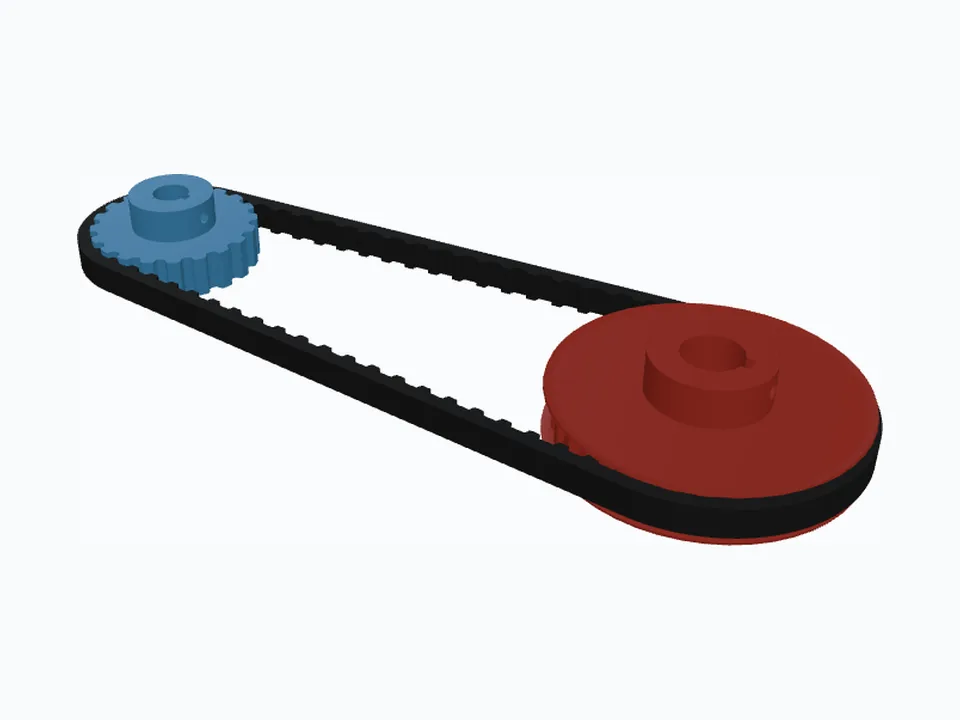

The drive

  • L (⅜″ pitch) belt, 10 mm wide, 68 teeth (647.7 mm long)
  • Centre distance 204.22 mm; ratio 20 : 30 (1 : 1.5)

Pulley 1

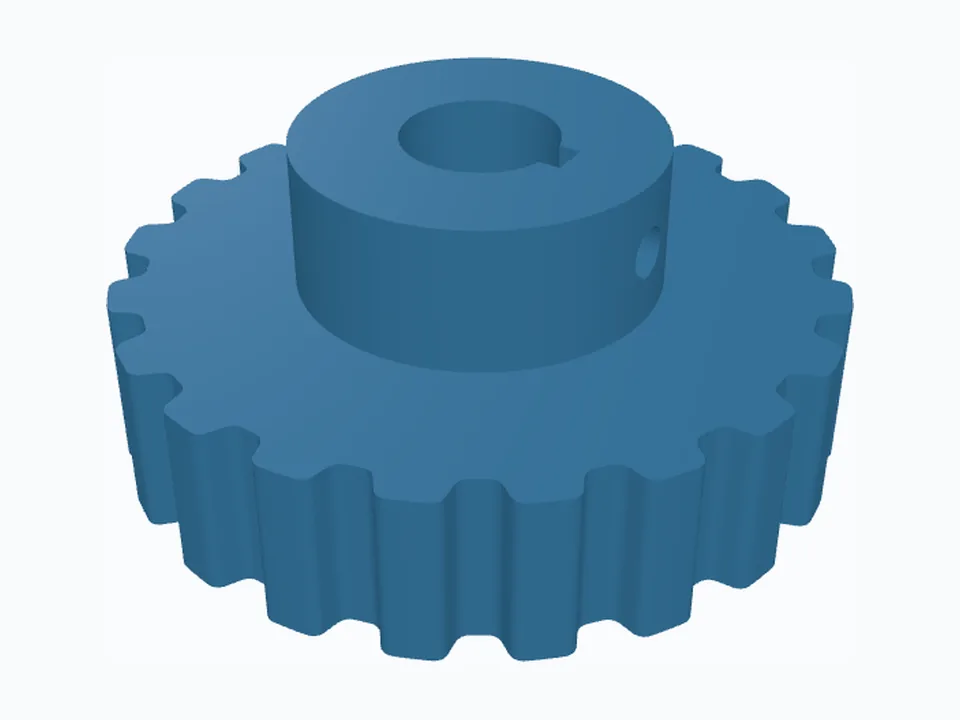

  • 20 teeth
  • ½″ (12.7 mm) bore with a ⅛″ (3.175 mm) keyway, 1.6 mm deep
  • Hub Ø30 × 12 mm, one #10-24 set screw tapped into the plastic

Pulley 2

  • 30 teeth
  • ¾″ (19.05 mm) bore with a 3/16″ (4.7625 mm) keyway, 2.4 mm deep
  • Hub Ø38 × 12.7 mm, one 1/4-20 set screw tapped into the plastic
  • Metal-plate flanges, 1 mm sheet, flared at 15°

In the free STL zip

  • Imperial-L-20T.stl — pulley 1, 20 teeth
  • Imperial-L-30T-P2+flange.stl — pulley 2, 30 teeth

Free STLs are CC BY 4.0, printed size without print compensation. Open the design to change anything, tune the fit for your printer, or download STEP, DXF, SVG and the belt.

Dimensions — 14 figures from the generator
Pulley 1Pulley 2
Pitch diameter60.64 mm90.96 mm
Outside diameter59.88 mm90.20 mm
Root diameter54.54 mm84.86 mm
Groove depth2.67 mm2.67 mm
Pitch line differential0.38 mm0.38 mm
Belt width10.00 mm10.00 mm
Face width (belt + clearance)14.30 mm14.30 mm
Minimum face width14.30 mm11.30 mm
Flange outside diameter—96.20 mm
Flange past the OD—3.00 mm
Minimum flange height—1.50 mm
Belt68 teeth · 647.70 mm
Centre distance204.22 mm
Drive ratio20 : 30 · 1 : 1.5

Read from the generator's Dimensions panel for this design, which opens with no warnings.
