Sample · Timing Pulley Generator

T5 pulleys for a 16 mm wide belt

More belt for more load: a 16 mm T5 belt with the face widened to suit, on D-flat shafts with an M4 set screw in each hub.

T5D-flatFlanges printed in placeWide belt

Build it with your AI

Using the CheapCADTools connector, design a two-pulley timing belt drive: T5 belt 16 mm wide, about 120 mm between centres, one M4 set screw in each hub. Pulley 1: 20 teeth, 8 mm bore with a D-flat 0.5 mm deep, a hub 20 mm across and 9 mm tall, and printed flanges with the top flange printed in place. Pulley 2: 30 teeth, 10 mm bore with a D-flat 0.8 mm deep, a hub 24 mm across and 9 mm tall. Check the design, apply any Auto-fix it suggests, then export both pulleys as STL and give me the download link.

Paste it into Claude, ChatGPT or any AI app with the CheapCADTools connector, and it designs this drive with you, checks it and hands you the files. How to connect your AI.

What's in this design

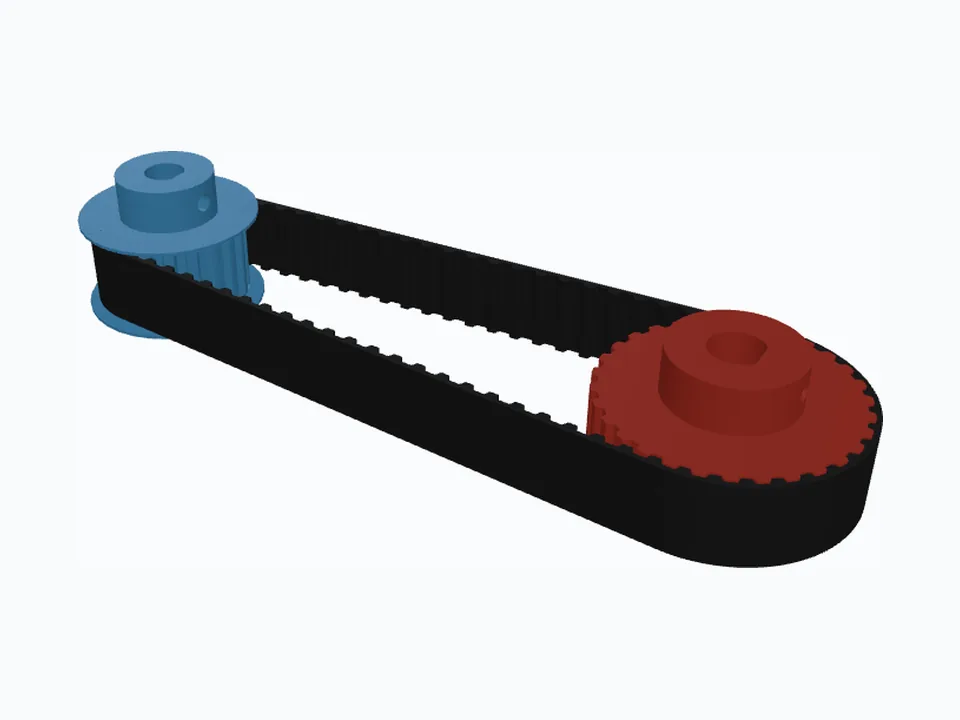

The drive

  • T5 belt, 16 mm wide, 74 teeth (370 mm long)
  • Centre distance 122.24 mm; ratio 20 : 30 (1 : 1.5)

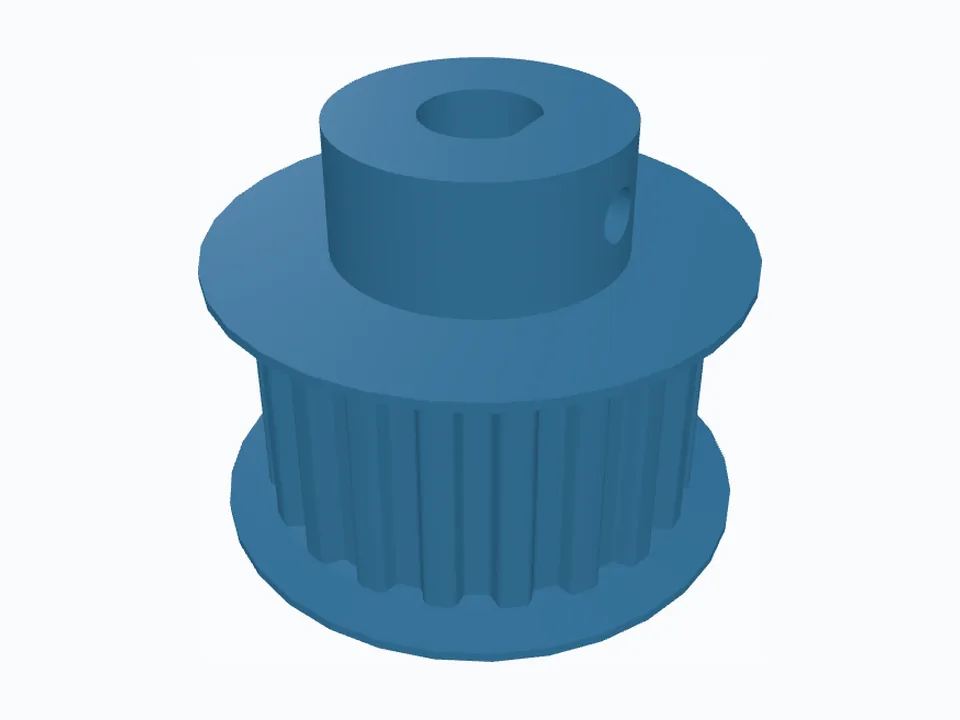

Pulley 1

  • 20 teeth
  • 8 mm bore with a D-flat 0.5 mm deep
  • Hub Ø20 × 9 mm, one M4 set screw tapped into the plastic
  • Printed flanges, 1.5 mm thick, reaching 3 mm past the teeth; both print in place

Pulley 2

  • 30 teeth
  • 10 mm bore with a D-flat 0.8 mm deep
  • Hub Ø24 × 9 mm, one M4 set screw tapped into the plastic

In the free STL zip

  • T-T5-20T+flange.stl — pulley 1, 20 teeth
  • T-T5-30T-P2.stl — pulley 2, 30 teeth

Free STLs are CC BY 4.0, printed size without print compensation. Open the design to change anything, tune the fit for your printer, or download STEP, DXF, SVG and the belt.

Dimensions — 13 figures from the generator
Pulley 1Pulley 2
Pitch diameter31.83 mm47.75 mm
Outside diameter30.83 mm46.75 mm
Root diameter28.33 mm44.25 mm
Groove depth1.25 mm1.25 mm
Pitch line differential0.50 mm0.50 mm
Belt width16.00 mm16.00 mm
Face width (belt + clearance)16.80 mm16.80 mm
Flange outside diameter36.83 mm—
Flange past the OD3.00 mm—
Minimum flange height1.75 mm≈—
Belt74 teeth · 370.00 mm
Centre distance122.24 mm
Drive ratio20 : 30 · 1 : 1.5

Read from the generator's Dimensions panel for this design, which opens with no warnings.
