GT2 20 tooth stepper pulley with a D-flat bore and captured nut

The 3D-printer classic done properly: a D-flat that keys onto the motor shaft, a set screw that bites into a captured nut instead of the plastic, and a 30-tooth partner held by two heat-set inserts.

GT2 (2GT)D-flatCaptured nutHeat-set insertFlanges printed in place

Build it with your AI

Using the CheapCADTools connector, design a two-pulley timing belt drive: GT2 belt (2 mm pitch), about 80 mm between centres. Pulley 1: 20 teeth, 5 mm bore with a D-flat 0.5 mm deep, a hub 16 mm across and 8 mm tall with one M3 set screw in a captured nut, and printed flanges with the top flange printed in place. Pulley 2: 30 teeth, 8 mm bore, a hub 20 mm across and 8 mm tall with two M3 set screws in heat-set inserts (4.1 mm insert holes). Check the design, apply any Auto-fix it suggests, then export both pulleys as STL and give me the download link.

Paste it into Claude, ChatGPT or any AI app with the CheapCADTools connector, and it designs this drive with you, checks it and hands you the files. How to connect your AI.

What's in this design

The drive

  • GT2 (2GT) belt, 10 mm wide, 106 teeth (212 mm long)
  • Centre distance 80.94 mm; ratio 20 : 30 (1 : 1.5)

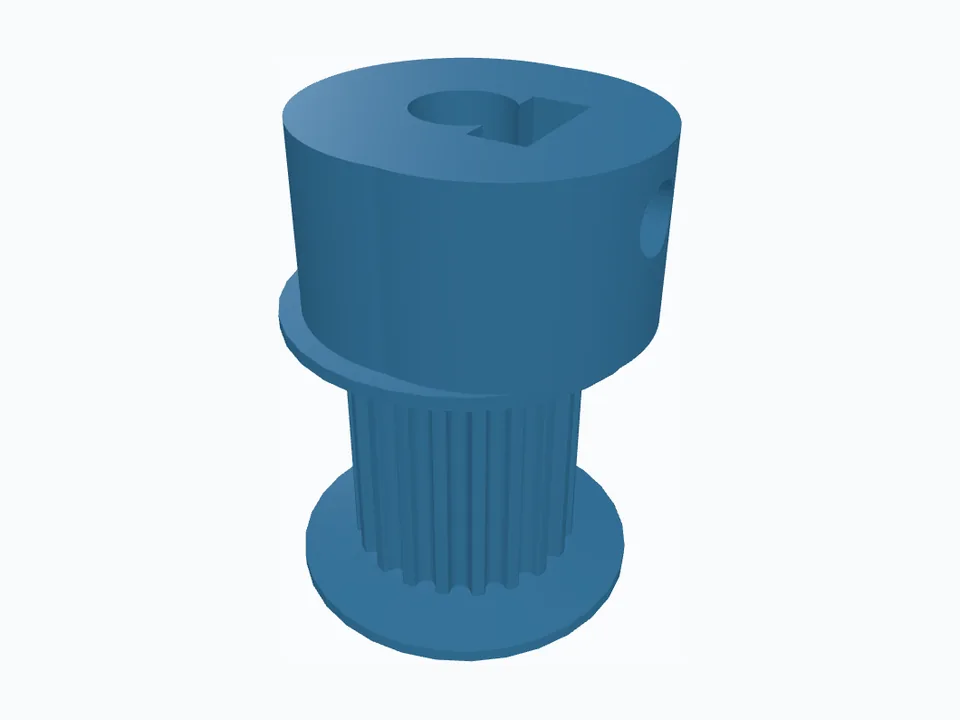

Pulley 1

  • 20 teeth
  • 5 mm bore with a D-flat 0.5 mm deep
  • Hub Ø16 × 8 mm, one M3 set screw in a captured nut
  • Printed flanges, 1.5 mm thick, reaching 3 mm past the teeth; both print in place

Pulley 2

  • 30 teeth
  • 8 mm round bore
  • Hub Ø20 × 8 mm, two M3 set screws in heat-set inserts

In the free STL zip

  • GT-2M-20T+flange.stl — pulley 1, 20 teeth
  • GT-2M-30T-P2.stl — pulley 2, 30 teeth

Free STLs are CC BY 4.0, printed size without print compensation. Open the design to change anything, tune the fit for your printer, or download STEP, DXF, SVG and the belt.

Dimensions — 15 figures from the generator
Pulley 1Pulley 2
Pitch diameter12.73 mm19.10 mm
Outside diameter12.22 mm18.59 mm
Outside diameter, as built12.24 mm18.61 mm
Root diameter10.70 mm17.06 mm
Groove depth0.76 mm0.76 mm
Pitch line differential0.25 mm0.25 mm
Belt width10.00 mm10.00 mm
Face width (belt + clearance)13.00 mm13.00 mm
Minimum face width11.00 mm13.00 mm
Flange outside diameter18.24 mm—
Flange past the OD3.00 mm—
Minimum flange height1.10 mm—
Belt106 teeth · 212.00 mm
Centre distance80.94 mm
Drive ratio20 : 30 · 1 : 1.5

Read from the generator's Dimensions panel for this design, which opens with no warnings.
