Sample · Timing Pulley Generator

AT5 pulleys with set screws in heat-set inserts

For a linear axis that gets adjusted often: AT5's stiff belt, with M4 set screws running in heat-set inserts so the threads survive, and a spoked 36-tooth pulley.

AT5Heat-set insertSpokesAlignment nubs

Build it with your AI

Using the CheapCADTools connector, design a two-pulley timing belt drive: AT5 belt, about 140 mm between centres, M4 set screws in heat-set inserts on both hubs. Pulley 1: 24 teeth, 8 mm bore, a hub 22 mm across and 9 mm tall. Pulley 2: 36 teeth, 10 mm bore, a hub 24 mm across and 9 mm tall, 5 spokes around a 24 mm spoke hub with a 5 mm rim under the teeth, and printed flanges whose top flange is a separate part held on by 12 gluing nubs. Check the design, apply any Auto-fix it suggests, then export both pulleys as STL and give me the download link.

Paste it into Claude, ChatGPT or any AI app with the CheapCADTools connector, and it designs this drive with you, checks it and hands you the files. How to connect your AI.

What's in this design

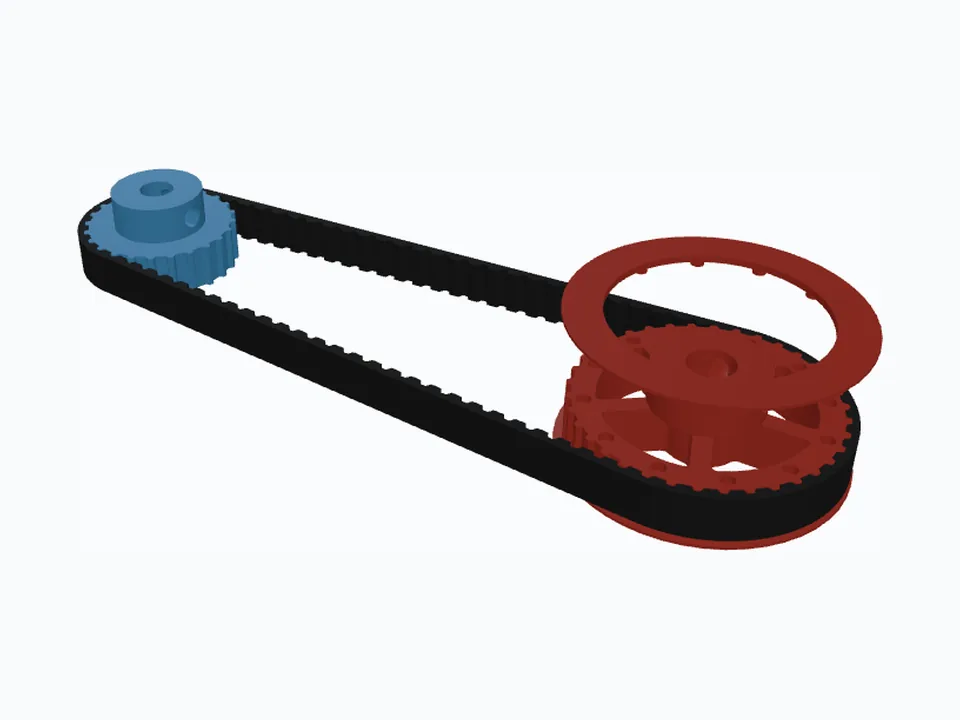

The drive

  • AT5 belt, 10 mm wide, 87 teeth (435 mm long)
  • Centre distance 142.18 mm; ratio 24 : 36 (1 : 1.5)

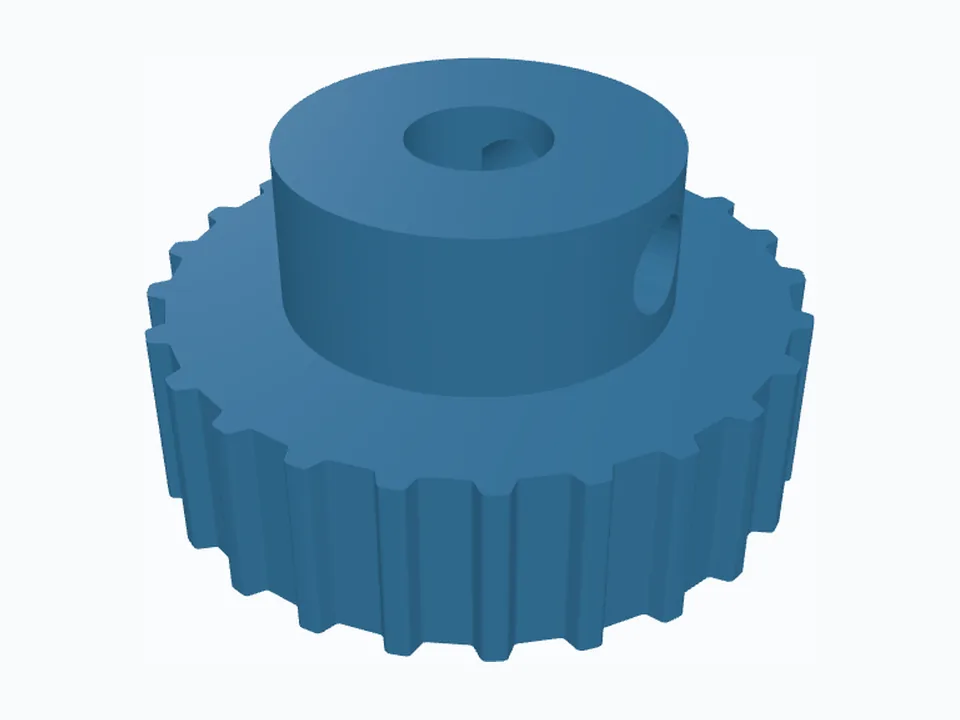

Pulley 1

  • 24 teeth
  • 8 mm round bore
  • Hub Ø22 × 9 mm, two M4 set screws in heat-set inserts

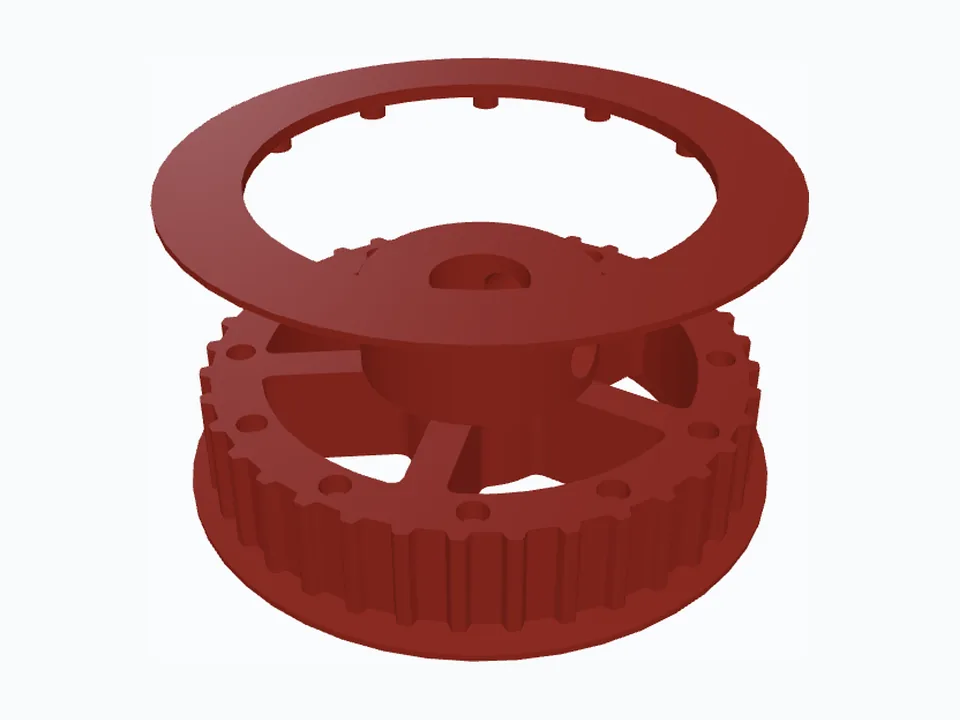

Pulley 2

  • 36 teeth
  • 10 mm round bore
  • Hub Ø24 × 9 mm, two M4 set screws in heat-set inserts
  • 5 spokes, 4 mm wide, under a 5 mm deep rim
  • Printed flanges, 1.5 mm thick, reaching 3 mm past the teeth; the top flange prints separately and locates on 12 alignment nubs

In the free STL zip

  • AT-AT5-24T.stl — pulley 1, 24 teeth
  • AT-AT5-36T-P2+flange.stl — pulley 2, 36 teeth
  • ATAT5-36T-3DP-upper-flange.stl — pulley 2's top flange, printed on its own

Free STLs are CC BY 4.0, printed size without print compensation. Open the design to change anything, tune the fit for your printer, or download STEP, DXF, SVG and the belt.

Dimensions — 15 figures from the generator
Pulley 1Pulley 2
Pitch diameter38.20 mm57.30 mm
Outside diameter37.00 mm56.10 mm
Root diameter34.80 mm53.90 mm
Groove depth1.10 mm1.10 mm
Pitch line differential0.60 mm0.60 mm
Belt width10.00 mm10.00 mm
Face width (belt + clearance)10.50 mm10.50 mm
Flange outside diameter—62.10 mm
Flange past the OD—3.00 mm
Minimum flange height—1.70 mm≈
Flange inward of the groove—5.00 mm
Minimum flange overlap—3.00 mm≈
Belt87 teeth · 435.00 mm
Centre distance142.18 mm
Drive ratio24 : 36 · 1 : 1.5

Read from the generator's Dimensions panel for this design, which opens with no warnings.
