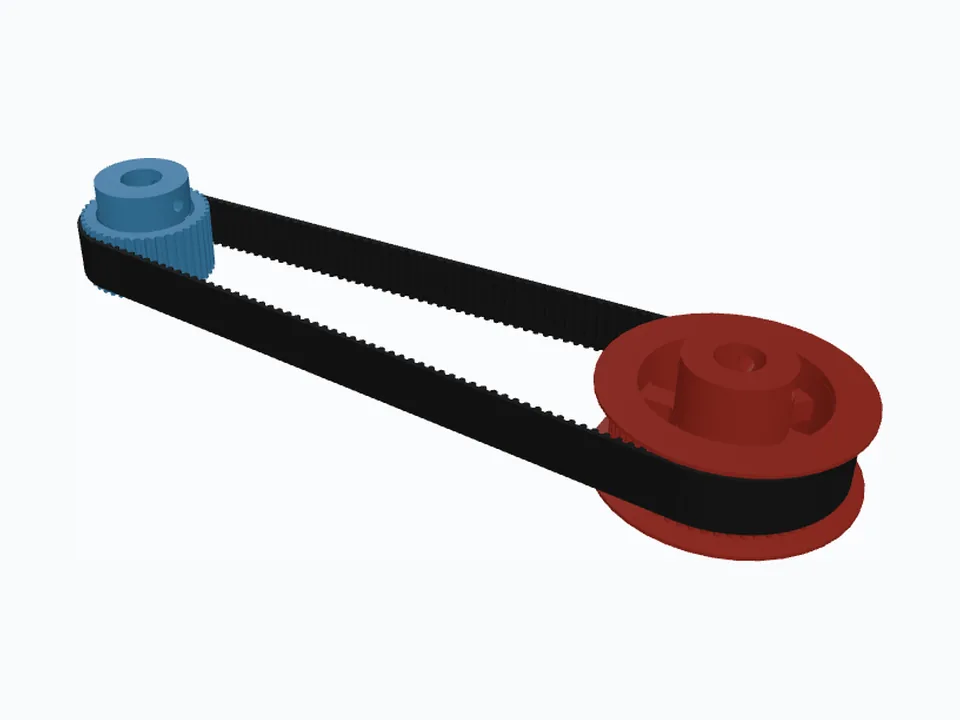

Big printed pulleys don't need to be solid: five and six spokes on a thin centre web cut plastic and print time, while the toothed rim stays full width for the belt.

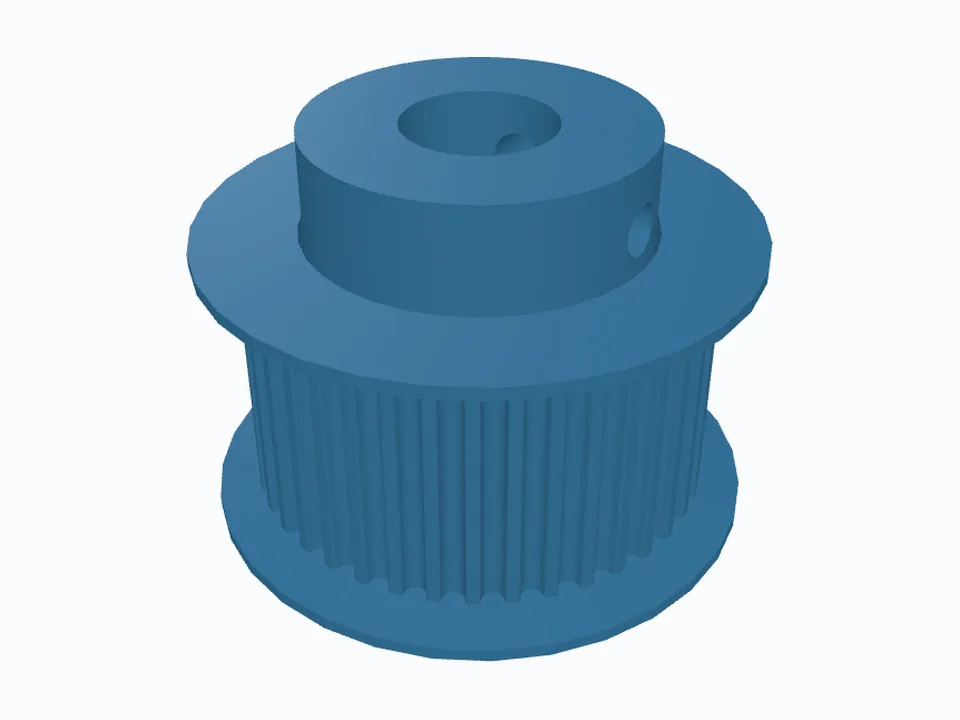

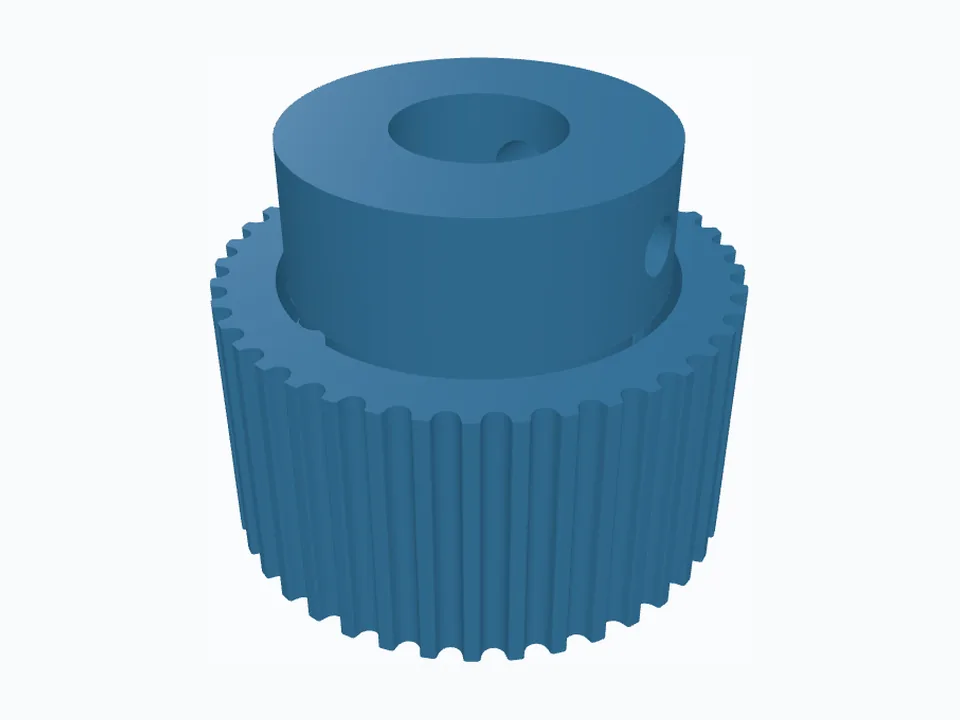

GT-2M-40T+flange.stl — pulley 1, 40 teethGT-2M-60T-P2.stl — pulley 2, 60 teethFree STLs are CC BY 4.0, printed size without print compensation. Open the design to change anything, tune the fit for your printer, or download STEP, DXF, SVG and the belt.
| Pulley 1 | Pulley 2 | |
|---|---|---|
| Pitch diameter | 25.46 mm | 38.20 mm |
| Outside diameter | 24.96 mm | 37.69 mm |
| Outside diameter, as built | 24.98 mm | 37.71 mm |
| Root diameter | 23.43 mm | 36.16 mm |
| Groove depth | 0.76 mm | 0.76 mm |
| Pitch line differential | 0.25 mm | 0.25 mm |
| Belt width | 10.00 mm | 10.00 mm |
| Face width (belt + clearance) | 13.00 mm | 13.00 mm |
| Minimum face width | 11.00 mm | 13.00 mm |
| Flange outside diameter | 29.45 mm | — |
| Flange past the OD | 2.24 mm | — |
| Minimum flange height | 1.10 mm | — |
| Belt | 171 teeth · 342.00 mm | |
| Centre distance | 120.83 mm | |
| Drive ratio | 40 : 60 · 1 : 1.5 | |
Read from the generator's Dimensions panel for this design, which opens with no warnings.
