Miniature MXL timing pulleys with M2 set screws

Small and fine-pitched: 0.08" MXL teeth on 3 mm and 4 mm shafts, held by M2 set screws in hex-shaped tapped holes.

MXL (0.080″ pitch)Hex tapped holesFlanges printed in place

Build it with your AI

Using the CheapCADTools connector, design a two-pulley timing belt drive: MXL belt, about 50 mm between centres, M2 set screws in hex-shaped threaded holes. Pulley 1: 20 teeth, 3 mm bore, a hub 10 mm across and 6 mm tall, and printed flanges with the top flange printed in place. Pulley 2: 30 teeth, 4 mm bore, a hub 12 mm across and 6 mm tall. Check the design, apply any Auto-fix it suggests, then export both pulleys as STL and give me the download link.

Paste it into Claude, ChatGPT or any AI app with the CheapCADTools connector, and it designs this drive with you, checks it and hands you the files. How to connect your AI.

What's in this design

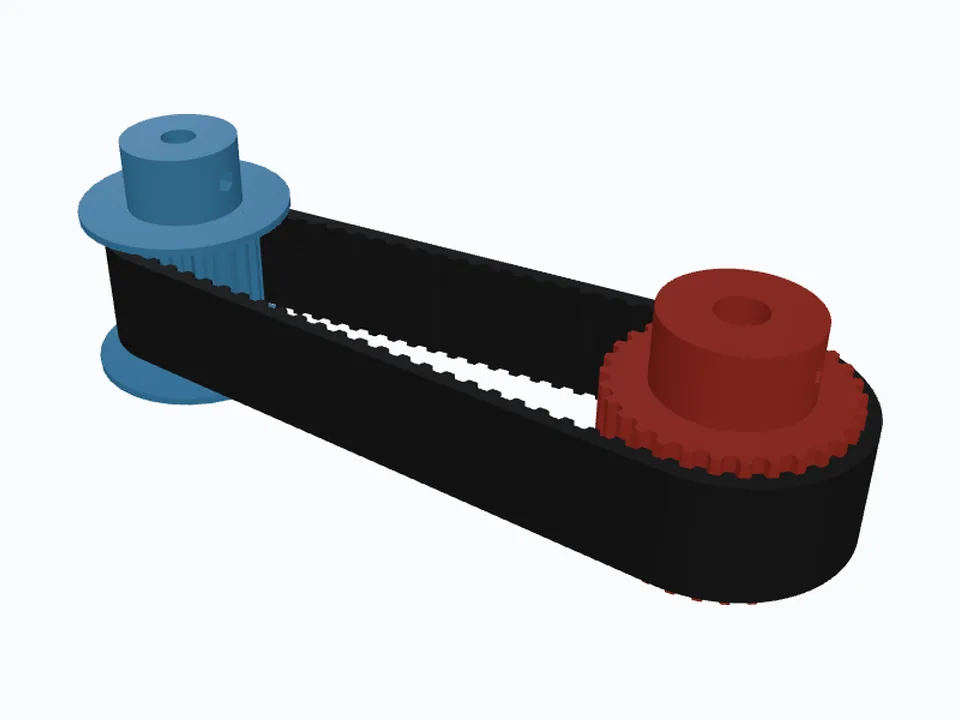

The drive

  • MXL (0.080″ pitch) belt, 10 mm wide, 75 teeth (152.4 mm long)
  • Centre distance 50.7 mm; ratio 20 : 30 (1 : 1.5)
  • Set-screw holes are hex-shaped for the screw to tap, 82% of its diameter across flats

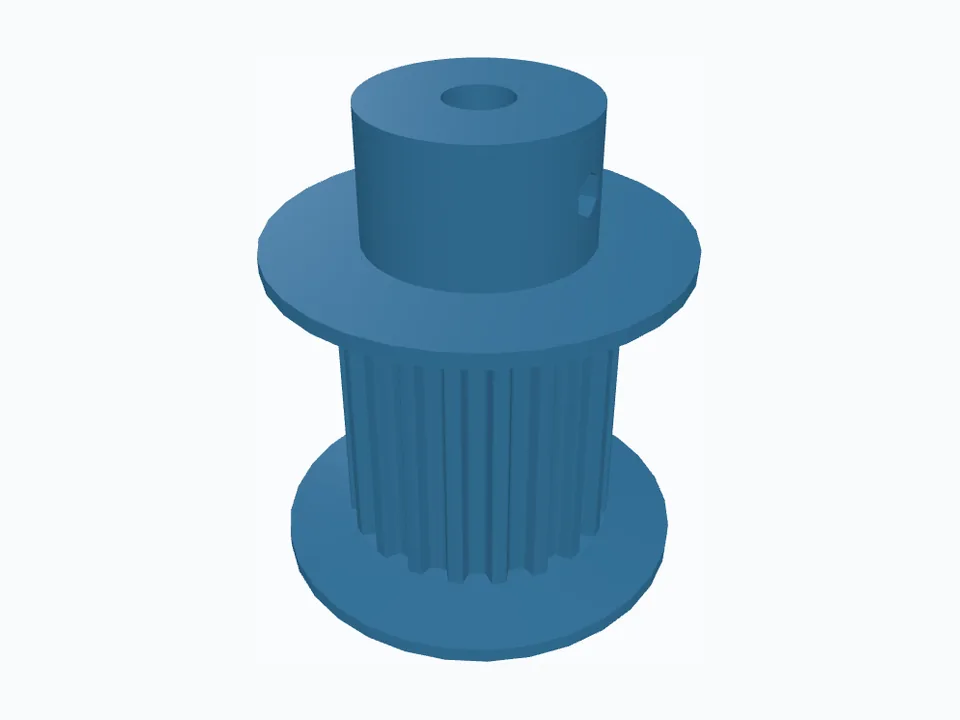

Pulley 1

  • 20 teeth
  • 3 mm round bore
  • Hub Ø10 × 6 mm, two M2 set screws tapped into the plastic
  • Printed flanges, 1.5 mm thick, reaching 3 mm past the teeth; both print in place

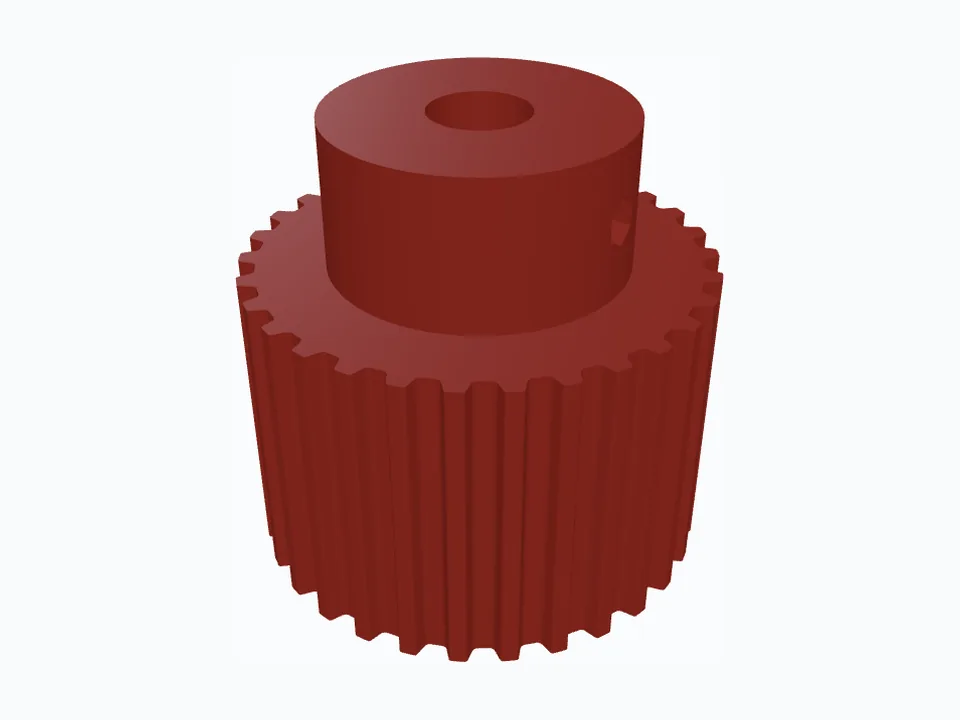

Pulley 2

  • 30 teeth
  • 4 mm round bore
  • Hub Ø12 × 6 mm, two M2 set screws tapped into the plastic

In the free STL zip

  • Imperial-MXL-20T+flange.stl — pulley 1, 20 teeth
  • Imperial-MXL-30T-P2.stl — pulley 2, 30 teeth

Free STLs are CC BY 4.0, printed size without print compensation. Open the design to change anything, tune the fit for your printer, or download STEP, DXF, SVG and the belt.

Dimensions — 14 figures from the generator
Pulley 1Pulley 2
Pitch diameter12.94 mm19.40 mm
Outside diameter12.43 mm18.90 mm
Root diameter11.05 mm17.52 mm
Groove depth0.69 mm0.69 mm
Pitch line differential0.25 mm0.25 mm
Belt width10.00 mm10.00 mm
Face width (belt + clearance)12.50 mm12.50 mm
Minimum face width10.70 mm12.50 mm
Flange outside diameter18.43 mm—
Flange past the OD3.00 mm—
Minimum flange height0.50 mm—
Belt75 teeth · 152.40 mm
Centre distance50.70 mm
Drive ratio20 : 30 · 1 : 1.5

Read from the generator's Dimensions panel for this design, which opens with no warnings.
