17/34 · ANSI 50-2 duplex, ISO 4156 splines

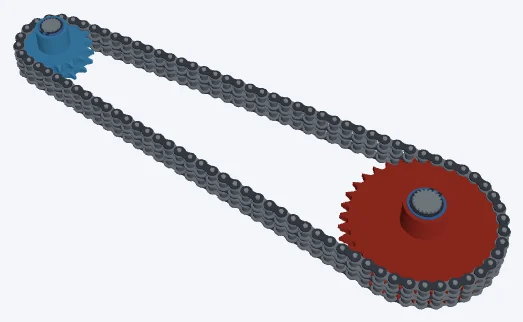

Using the CheapCAD Tools connector, design a two-sprocket drive in Sprocket Designer on ANSI 50 (the 530 motorcycle size) roller chain, 2 strands (duplex, both sprockets), about 500 mm between centres. Sprocket 1: 17 teeth, a sprocket; an ISO 4156 involute spline bore: module 1.25, 18 teeth, 30° pressure angle; a DIN 471 retaining ring on the top face, without a counterbore (the ring sits on the face); a splined washer under each ring; a hub on one side, 40 mm across and 28 mm long. Sprocket 2: 34 teeth, a sprocket; an ISO 4156 involute spline bore: module 1.5, 20 teeth, 30° pressure angle; a DIN 471 retaining ring on the top face, without a counterbore (the ring sits on the face); a splined washer under each ring; a hub on one side, 50 mm across and 30 mm long. Check the design, apply any Auto-fix it suggests, then export both sprockets and both sample shafts and the splined washers as STL and give me the download link.

Paste it into Claude, ChatGPT or any AI app with the CheapCAD Tools connector, and it designs this drive with you, checks it and hands you the files. How to connect your AI.
