Sample · m 3 · 20° · straight, Gleason proportions

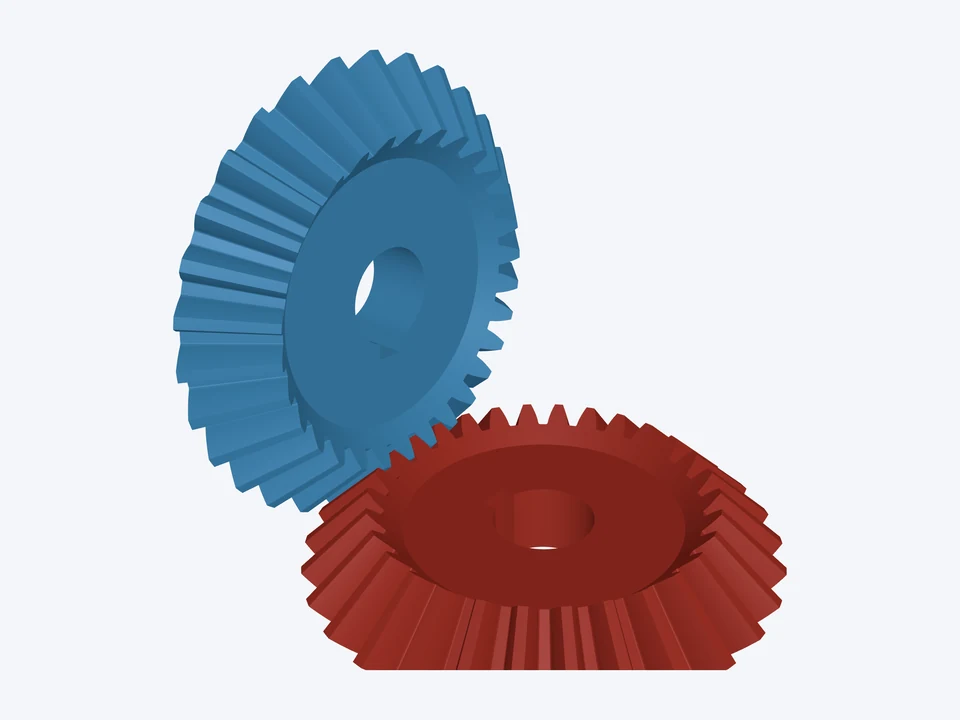

Miter pair · module 3, 30 teeth
A heavy 1 : 1 corner drive: module 3, 20 mm keyed bores.
What's in this design

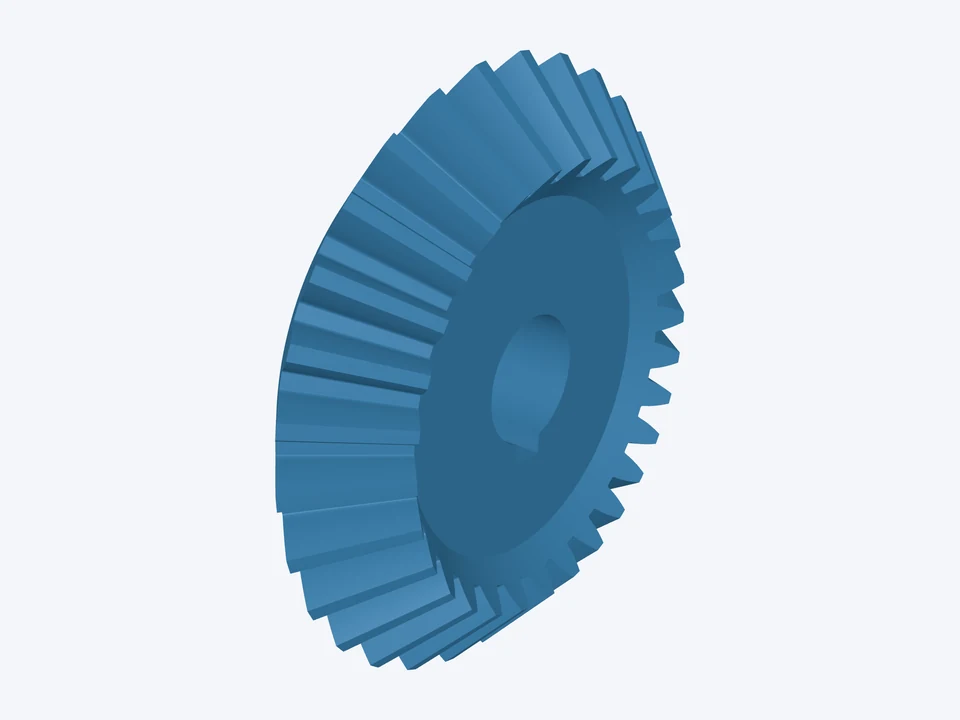

Pinion · 30 teeth
- 30 teeth · outside Ø94.24, pitch Ø90 mm at the heel · pitch angle 45° · face 17.5 mm · mounting distance 52.16 mm · bore Ø20 mm, keyway 6 mm wide · no hub
Gear · 30 teeth
- 30 teeth · outside Ø94.24, pitch Ø90 mm at the heel · pitch angle 45° · face 17.5 mm · mounting distance 52.16 mm · bore Ø20 mm, keyway 6 mm wide · no hub
The mesh · m 3 · 20° · straight, Gleason proportions
- ratio 1 : 1 · shaft angle 90° · straight teeth
The link opens the pinion and gear in the Bevel Gear Designer's 3D view. Change the teeth, the module or pitch, the shaft angle, the bores or hubs, then download STL, STEP or a drawing.
