Sample · m 1.5 · 20° · straight, Gleason proportions
Miter pair · module 1.5, 20 teeth
The most common stock miter size: 20 teeth, module 1.5, Gleason proportions that match catalogue gears.
What's in this design

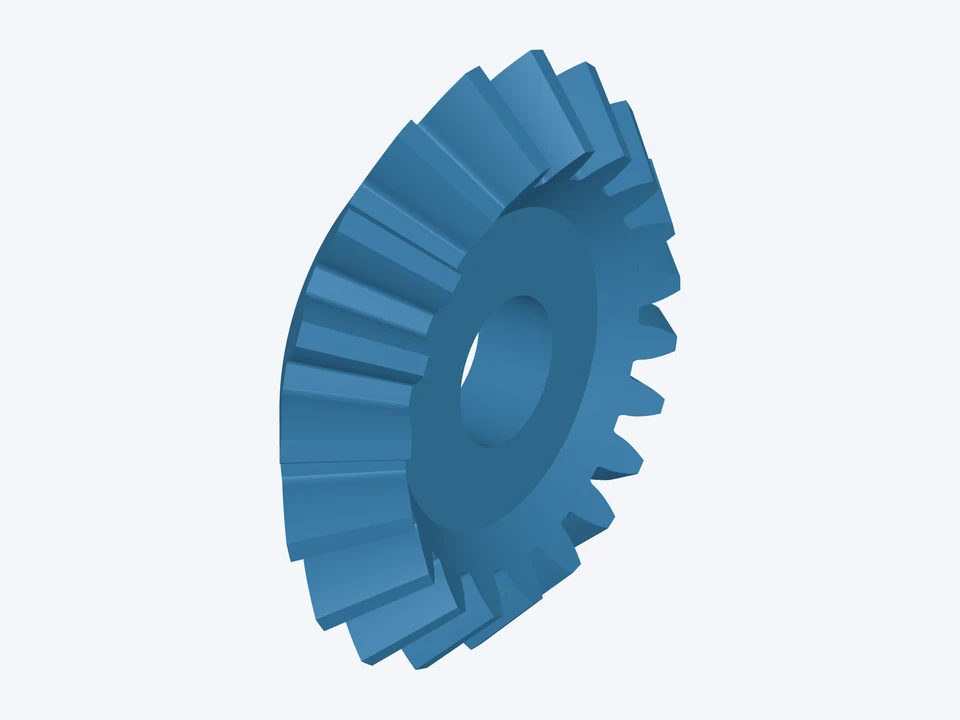

Pinion · 20 teeth
- 20 teeth · outside Ø32.12, pitch Ø30 mm at the heel · pitch angle 45° · face 5.5 mm · mounting distance 18.58 mm · bore Ø8 mm · no hub
Gear · 20 teeth
- 20 teeth · outside Ø32.12, pitch Ø30 mm at the heel · pitch angle 45° · face 5.5 mm · mounting distance 18.58 mm · bore Ø8 mm · no hub

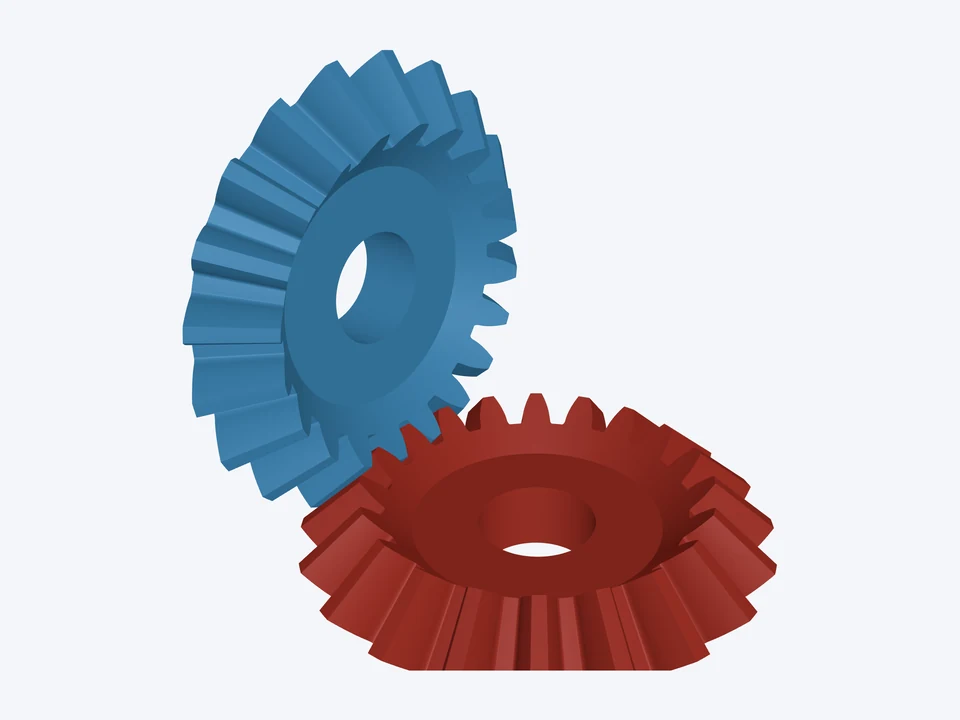

The mesh · m 1.5 · 20° · straight, Gleason proportions
- ratio 1 : 1 · shaft angle 90° · straight teeth
The link opens the pinion and gear in the Bevel Gear Designer's 3D view. Change the teeth, the module or pitch, the shaft angle, the bores or hubs, then download STL, STEP or a drawing.
