Sample · m 2 · 20° · straight, Gleason proportions
Miter pair · module 2, keyed
25-tooth module 2 miters on 12 mm keyed shafts.
What's in this design

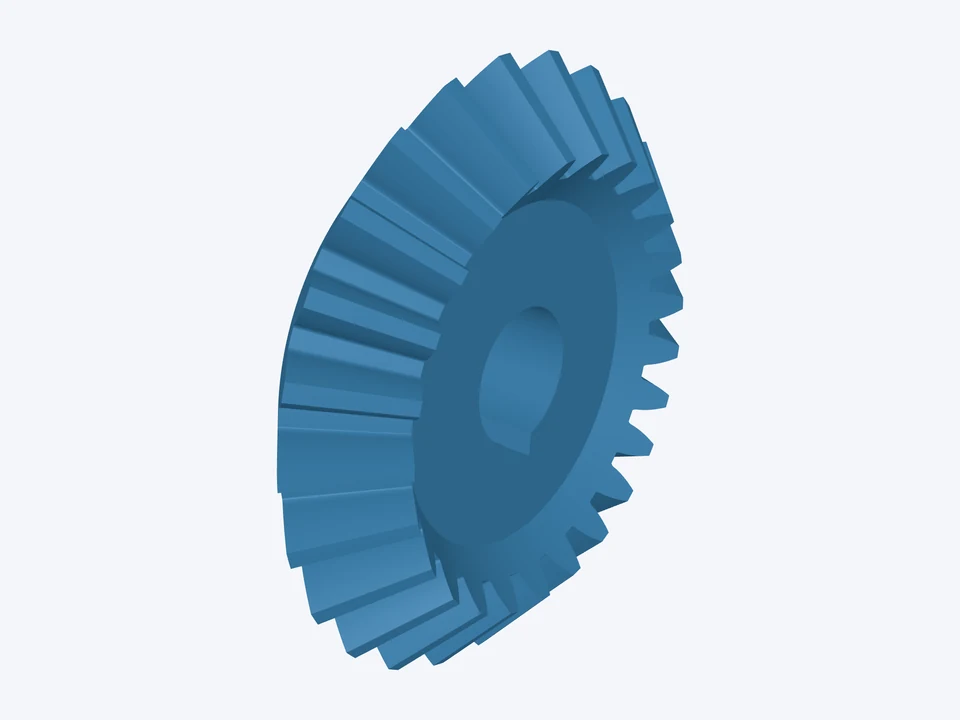

Pinion · 25 teeth
- 25 teeth · outside Ø52.83, pitch Ø50 mm at the heel · pitch angle 45° · face 9.5 mm · mounting distance 29.77 mm · bore Ø12 mm, keyway 4 mm wide · no hub
Gear · 25 teeth
- 25 teeth · outside Ø52.83, pitch Ø50 mm at the heel · pitch angle 45° · face 9.5 mm · mounting distance 29.77 mm · bore Ø12 mm, keyway 4 mm wide · no hub

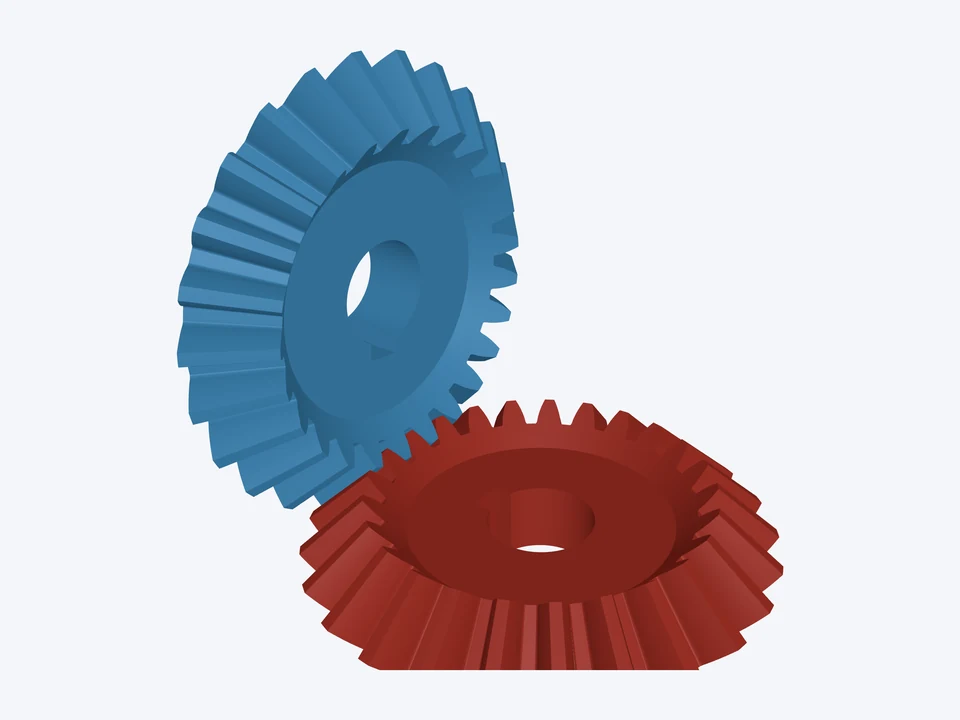

The mesh · m 2 · 20° · straight, Gleason proportions
- ratio 1 : 1 · shaft angle 90° · straight teeth
The link opens the pinion and gear in the Bevel Gear Designer's 3D view. Change the teeth, the module or pitch, the shaft angle, the bores or hubs, then download STL, STEP or a drawing.
