Sample · 16 DP · 20° · straight, AGMA 2005 proportions

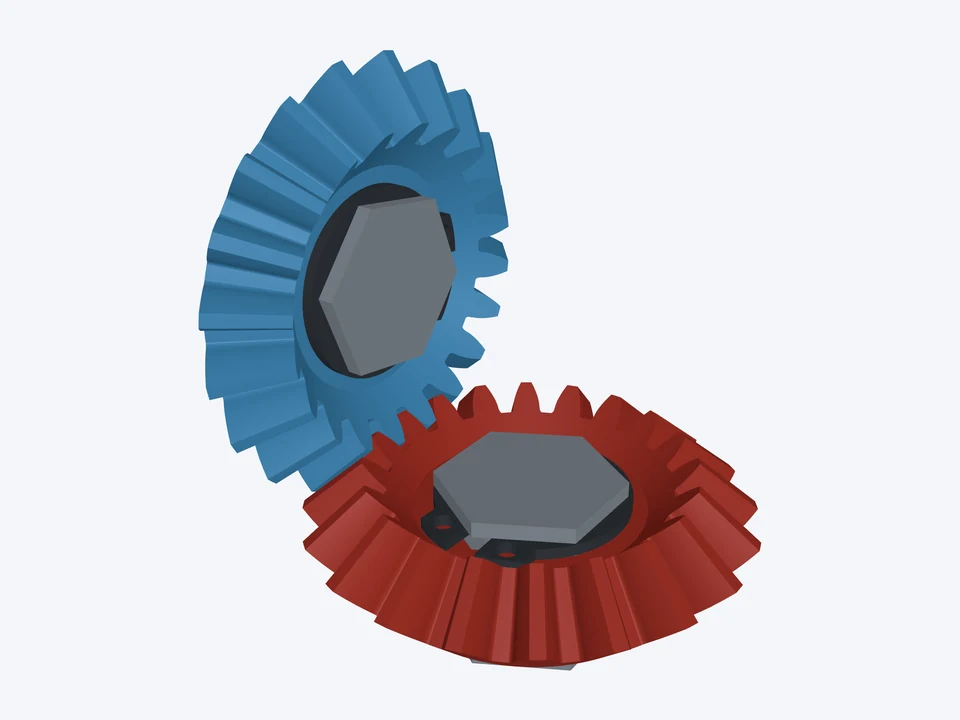

Miter pair · 16 DP on ½" hex
Robotics miters: 16 DP, 20 teeth, both on ½" hex shafts.
What's in this design

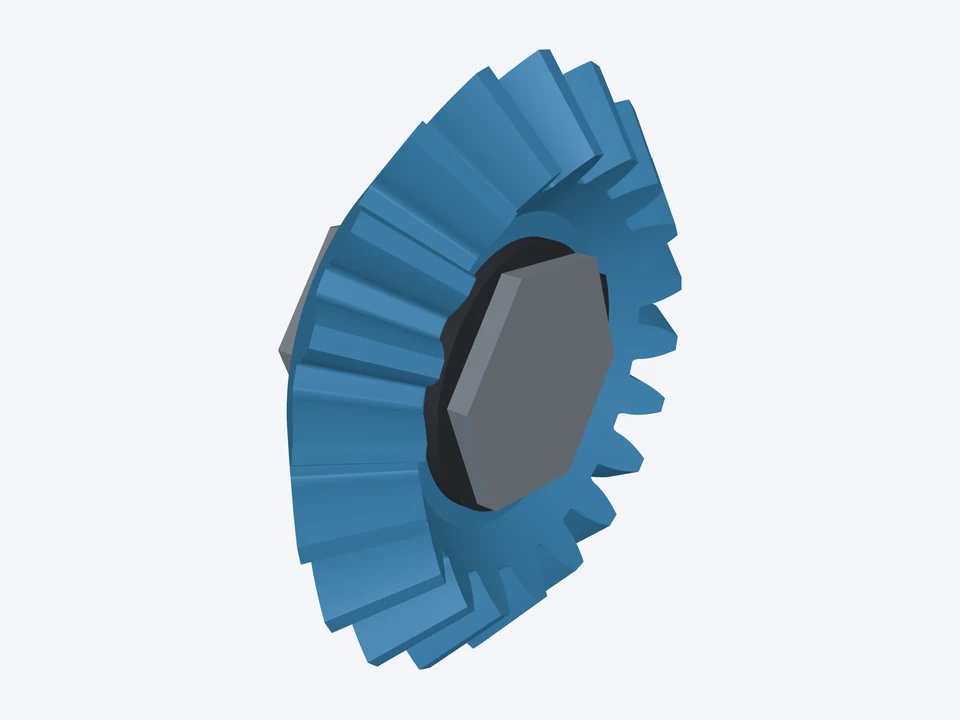

Pinion · 20 teeth
- 20 teeth · outside Ø34.07, pitch Ø31.75 mm at the heel · pitch angle 45° · face 6 mm · mounting distance 19.84 mm · ½" hex bar, retaining ring on the top end · no hub
Gear · 20 teeth
- 20 teeth · outside Ø34.07, pitch Ø31.75 mm at the heel · pitch angle 45° · face 6 mm · mounting distance 19.84 mm · ½" hex bar, retaining ring on the top end · no hub
The mesh · 16 DP · 20° · straight, AGMA 2005 proportions
- ratio 1 : 1 · shaft angle 90° · straight teeth
The link opens the pinion and gear in the Bevel Gear Designer's 3D view. Change the teeth, the module or pitch, the shaft angle, the bores or hubs, then download STL, STEP or a drawing.
