Sample · m 1 · 20° · straight, AGMA 2005 proportions
Miter pair · module 1, printed
A small printable miter pair on 5 mm D-flat shafts.
What's in this design

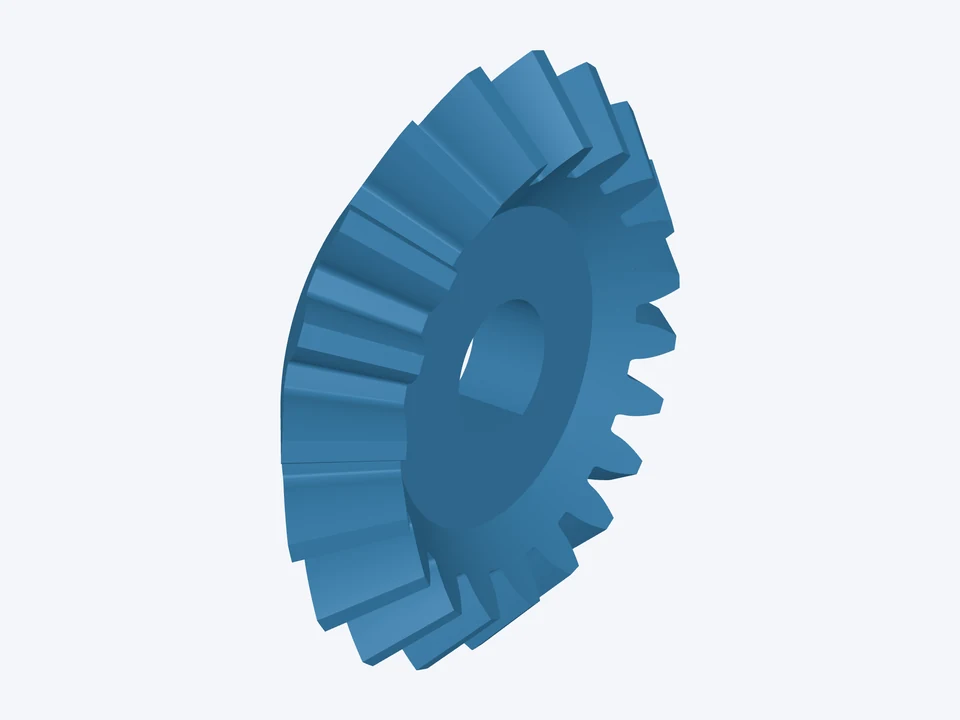

Pinion · 20 teeth
- 20 teeth · outside Ø21.46, pitch Ø20 mm at the heel · pitch angle 45° · face 3.5 mm · mounting distance 12.5 mm · bore Ø5 mm D-flat · no hub
Gear · 20 teeth
- 20 teeth · outside Ø21.46, pitch Ø20 mm at the heel · pitch angle 45° · face 3.5 mm · mounting distance 12.5 mm · bore Ø5 mm D-flat · no hub

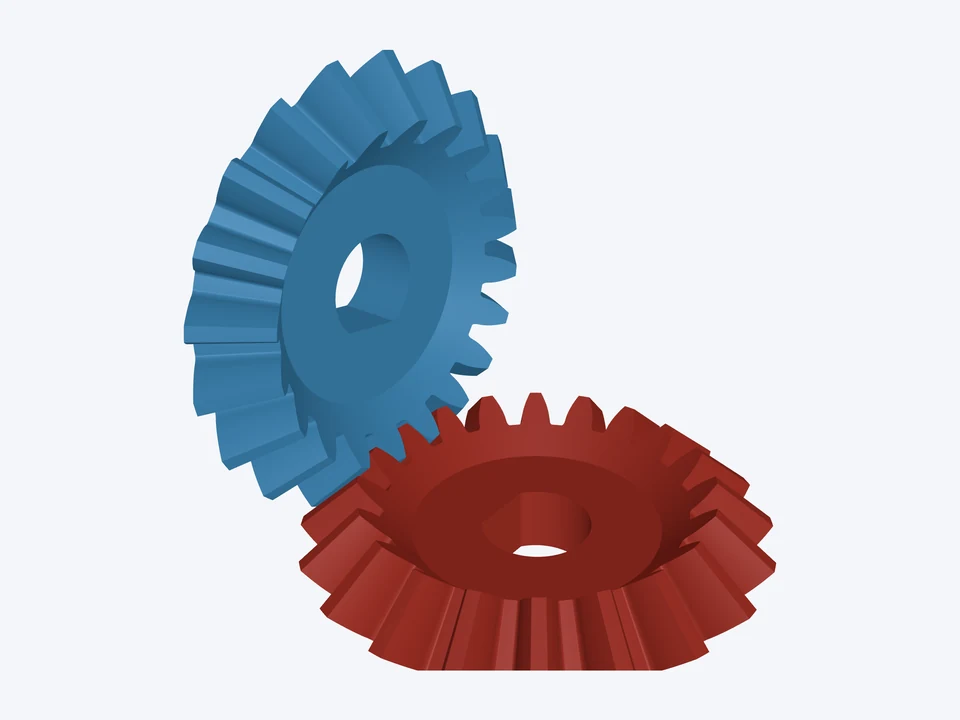

The mesh · m 1 · 20° · straight, AGMA 2005 proportions
- ratio 1 : 1 · shaft angle 90° · straight teeth
The link opens the pinion and gear in the Bevel Gear Designer's 3D view. Change the teeth, the module or pitch, the shaft angle, the bores or hubs, then download STL, STEP or a drawing.
