Sample · Road 53/39 · 11-25, big ring

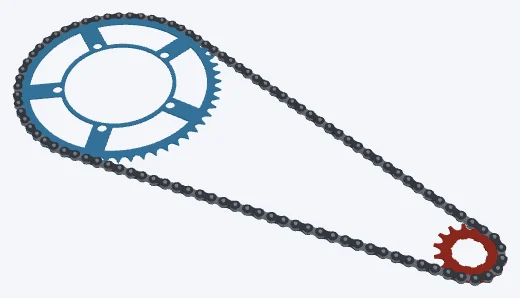

53 × 15 · classic race ring

Windowed, on a 5-arm 130 spider.

Road53 : 15

Build it with your AI

Using the CheapCAD Tools connector, design a two-sprocket drive in Sprocket Designer on 10sp (10-speed bicycle) roller chain, about 410 mm between centres. Sprocket 1: 53 teeth, a chainring; a 130 mm bolt circle (BCD) with 5 bolts; a 115.8 mm centre opening; spokes: a windowed web, Band OD 124 mm, Rim Depth 8 mm, Tab Wall ×2 10 mm; no tooth chamfer. Sprocket 2: 15 teeth, a cog; an ISO 14 straight-sided spline bore: 9 splines, minor diameter 32.5 mm, major 34.75 mm, width 6.25 mm, one key slot 3.25 mm wide (the Shimano HG cassette spline); no tooth chamfer. Check the design, apply any Auto-fix it suggests, then export both sprockets as STL and give me the download link.

Paste it into Claude, ChatGPT or any AI app with the CheapCAD Tools connector, and it designs this drive with you, checks it and hands you the files. How to connect your AI.

What's in this design

Sprocket 1 · 53 teeth

53T · 10-speed · chainring · 130 BCD × 5 · windowed
225 MPa peak · SF 2.23 in 7075 · rim moves 0.39 mm · 2.05 mm plate · 29 % solid

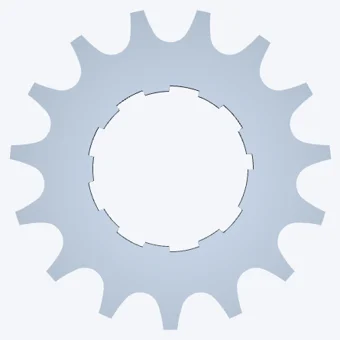

Sprocket 2 · 15 teeth

15T · 10-speed · cassette cog · Shimano HG spline
189 MPa peak · SF 2.67 in 7075 · rim moves 0.11 mm · 1.60 mm plate · 51 % solid

The link opens both sprockets and the chain in the Sprocket Designer's 3D Mode. Change the teeth, bore, hub or spokes, then download STL, STEP, DXF or SVG. Strength figures are the app's plane-stress check of each sprocket in the material it names; SF is the safety factor.
