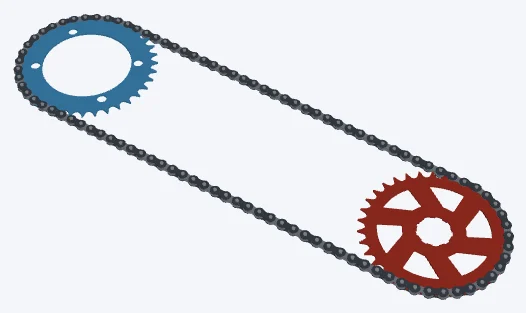

Sample · Road 52/36 · 11-34, lowest gear

36 × 34 · mid-compact lowest gear

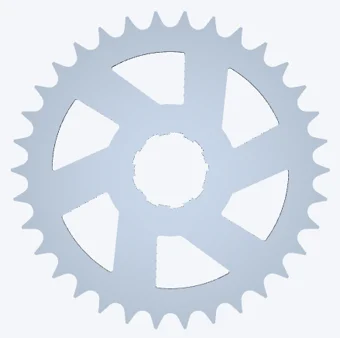

The inner ring on an 11-34's 34T cog, six tapered spokes at a 12° offset.

Road36 : 34

Build it with your AI

Using the CheapCAD Tools connector, design a two-sprocket drive in Sprocket Designer on 12sp (12-speed bicycle) roller chain, about 410 mm between centres. Sprocket 1: 36 teeth, a chainring; a 110 mm bolt circle (BCD) with 4 bolts in the shimano pattern; a 95.8 mm centre opening; no tooth chamfer. Sprocket 2: 34 teeth, a cog; an ISO 14 straight-sided spline bore: 9 splines, minor diameter 32.5 mm, major 34.75 mm, width 6.25 mm, one key slot 3.25 mm wide (the Shimano HG cassette spline); spokes: tapered spokes, 6 of them, Hub OD 60 mm, Rim Depth 11 mm, Width at Rim 20 mm, Width at Hub 18 mm, Angle Offset 12°; no tooth chamfer. Check the design, apply any Auto-fix it suggests, then export both sprockets as STL and give me the download link.

Paste it into Claude, ChatGPT or any AI app with the CheapCAD Tools connector, and it designs this drive with you, checks it and hands you the files. How to connect your AI.

What's in this design

Sprocket 1 · 36 teeth

36T · 12-speed · chainring · 110 BCD × 4 Shimano
148 MPa peak · SF 3.41 in 7075 · rim moves 0.12 mm · 2.05 mm plate · 46 % solid

Sprocket 2 · 34 teeth

34T · 12-speed · cassette cog · Shimano HG spline · tapered spokes × 6, 12° offset
242 MPa peak · SF 2.08 in 7075 · rim moves 0.47 mm · 1.60 mm plate · 61 % solid

The link opens both sprockets and the chain in the Sprocket Designer's 3D Mode. Change the teeth, bore, hub or spokes, then download STL, STEP, DXF or SVG. Strength figures are the app's plane-stress check of each sprocket in the material it names; SF is the safety factor.
