60° shaft angle · 1 : 1
Two 20-tooth gears meeting at 60°, not 90°.
What's in this design

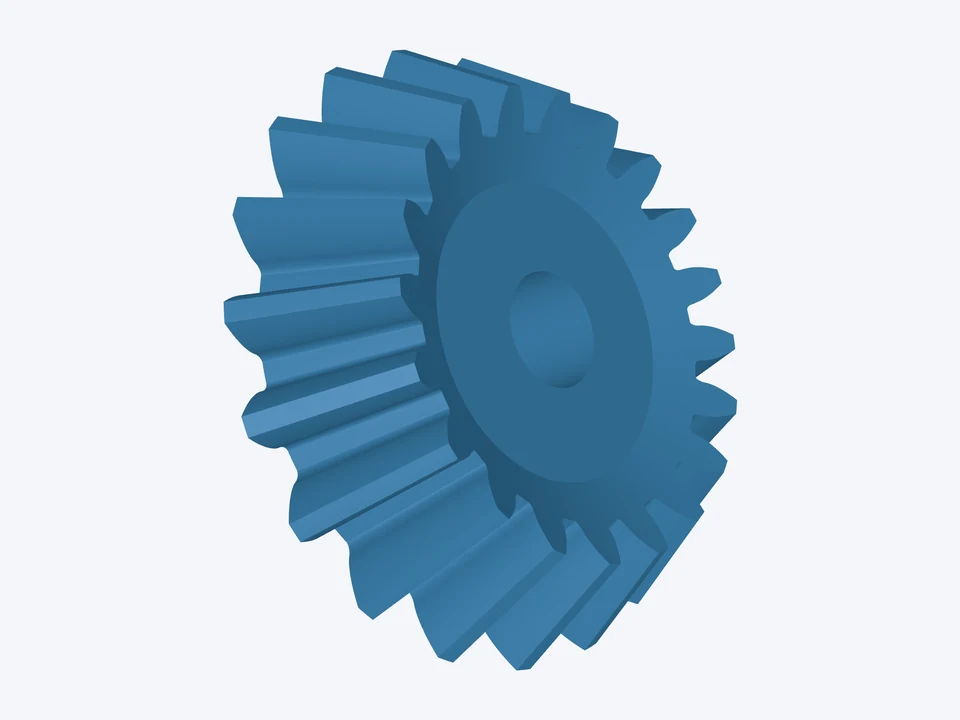

Pinion · 20 teeth
- 20 teeth · outside Ø32.68, pitch Ø30 mm at the heel · pitch angle 30° · face 8 mm · mounting distance 28.63 mm · bore Ø6 mm · no hub
Gear · 20 teeth
- 20 teeth · outside Ø32.68, pitch Ø30 mm at the heel · pitch angle 30° · face 8 mm · mounting distance 28.63 mm · bore Ø6 mm · no hub

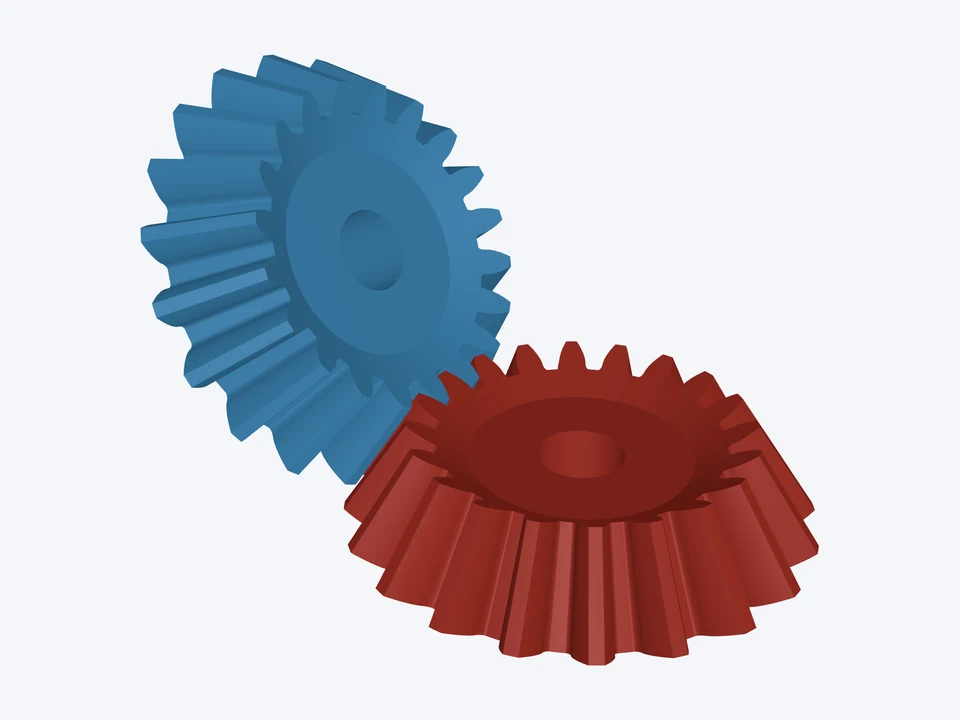

The mesh · m 1.5 · 20° · straight, AGMA 2005 proportions
- ratio 1 : 1 · shaft angle 60° · straight teeth
The link opens the pinion and gear in the Bevel Gear Designer's 3D view. Change the teeth, the module or pitch, the shaft angle, the bores or hubs, then download STL, STEP or a drawing.
