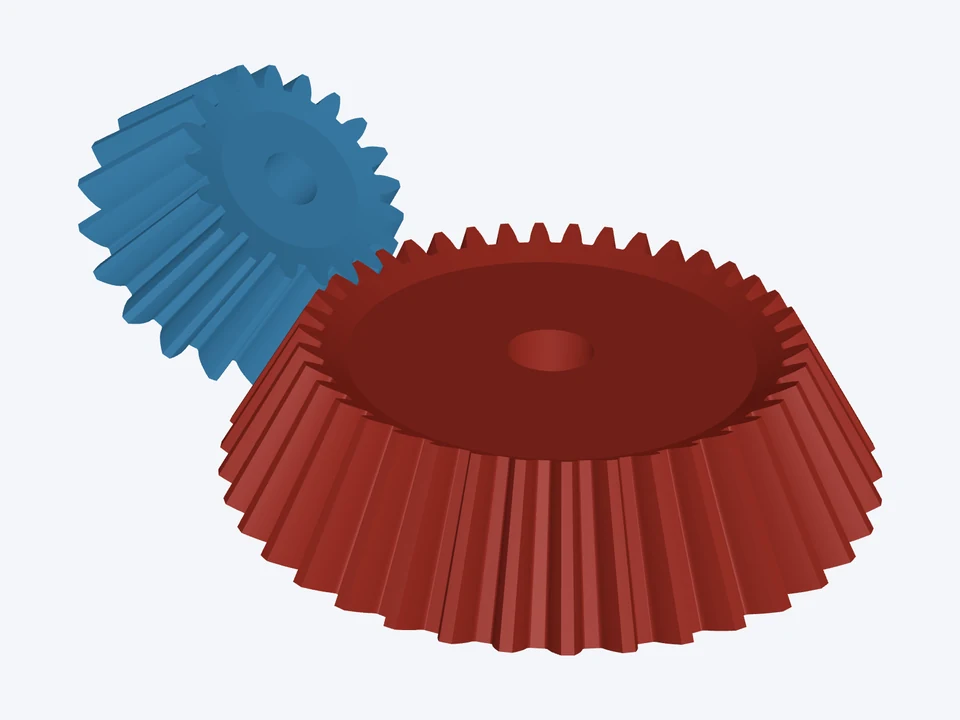

45° shaft angle · 2 : 1
A 45° drive for angled outputs and dividers.
What's in this design

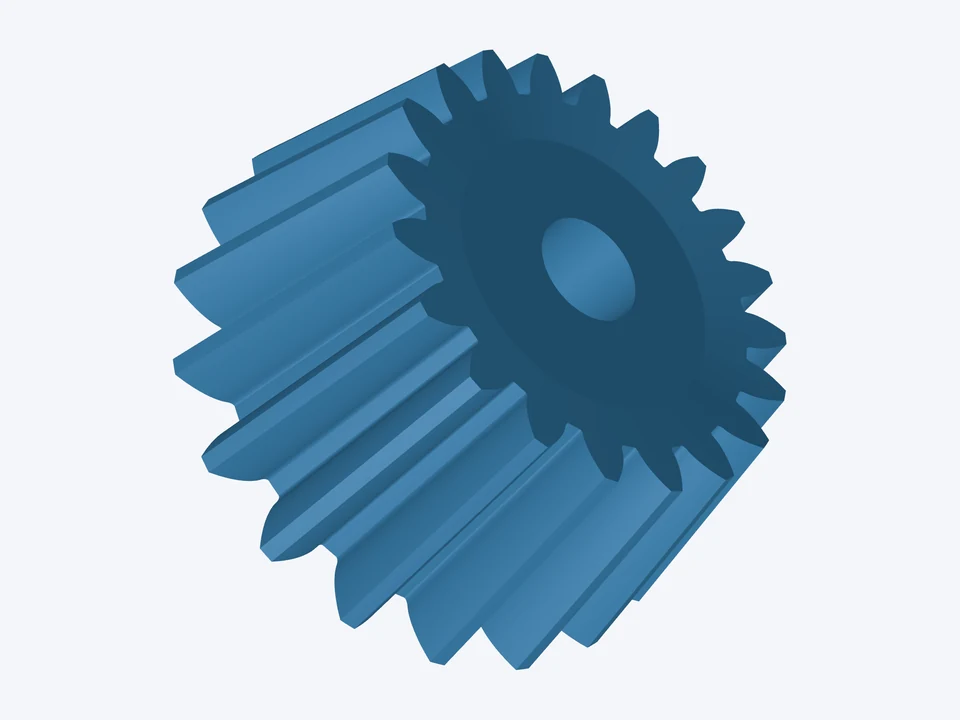

Pinion · 20 teeth
- 20 teeth · outside Ø33.93, pitch Ø30 mm at the heel · pitch angle 14.64° · face 15 mm · mounting distance 58.64 mm · bore Ø6 mm · no hub
Gear · 40 teeth
- 40 teeth · outside Ø61.84, pitch Ø60 mm at the heel · pitch angle 30.36° · face 15 mm · mounting distance 54.13 mm · bore Ø8 mm · no hub
The mesh · m 1.5 · 20° · straight, AGMA 2005 proportions
- ratio 2 : 1 · shaft angle 45° · straight teeth
The link opens the pinion and gear in the Bevel Gear Designer's 3D view. Change the teeth, the module or pitch, the shaft angle, the bores or hubs, then download STL, STEP or a drawing.
