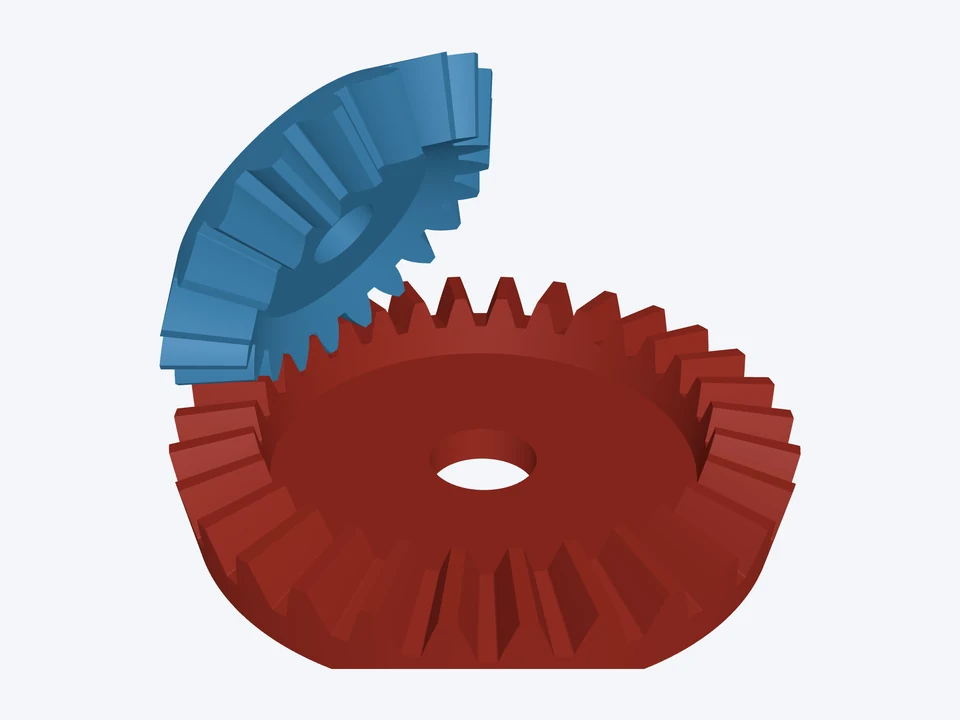

120° shaft angle · 1.5 : 1
An obtuse 120° drive: the gear's cone opens almost flat.
What's in this design

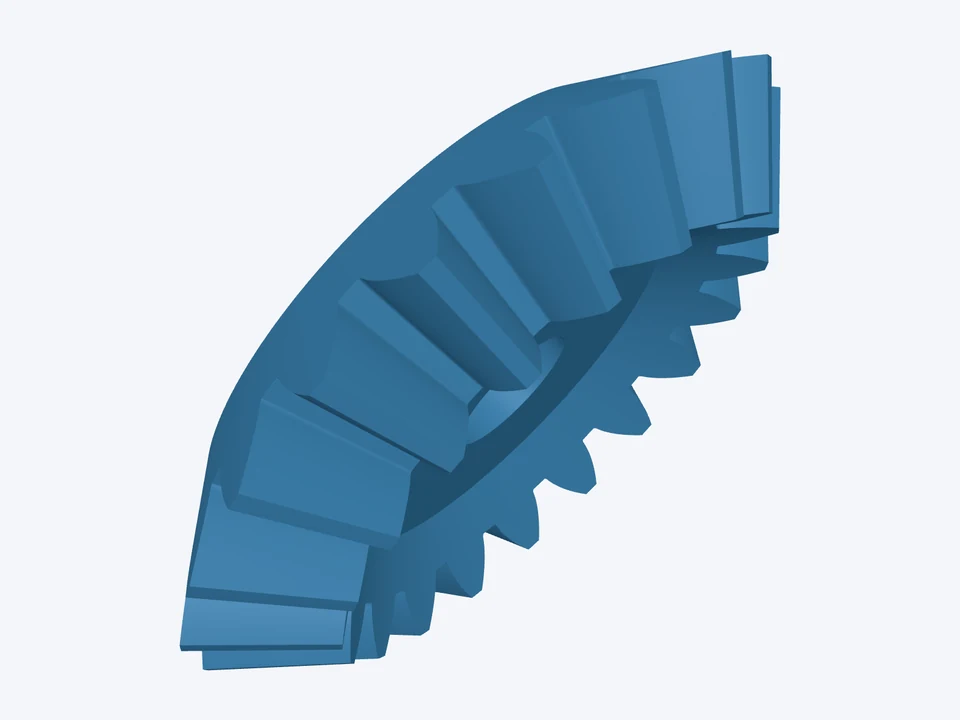

Pinion · 20 teeth
- 20 teeth · outside Ø33.44, pitch Ø30 mm at the heel · pitch angle 40.89° · face 6 mm · mounting distance 20.31 mm · bore Ø6 mm · no hub
Gear · 30 teeth
- 30 teeth · outside Ø45.31, pitch Ø45 mm at the heel · pitch angle 79.11° · face 6 mm · mounting distance 10.25 mm · bore Ø8 mm · no hub
The mesh · m 1.5 · 20° · straight, AGMA 2005 proportions
- ratio 1.5 : 1 · shaft angle 120° · straight teeth
The link opens the pinion and gear in the Bevel Gear Designer's 3D view. Change the teeth, the module or pitch, the shaft angle, the bores or hubs, then download STL, STEP or a drawing.
