Sample · m 2.2 · 20° · straight, AGMA 2005 proportions
Straight bevel · AGMA 2005

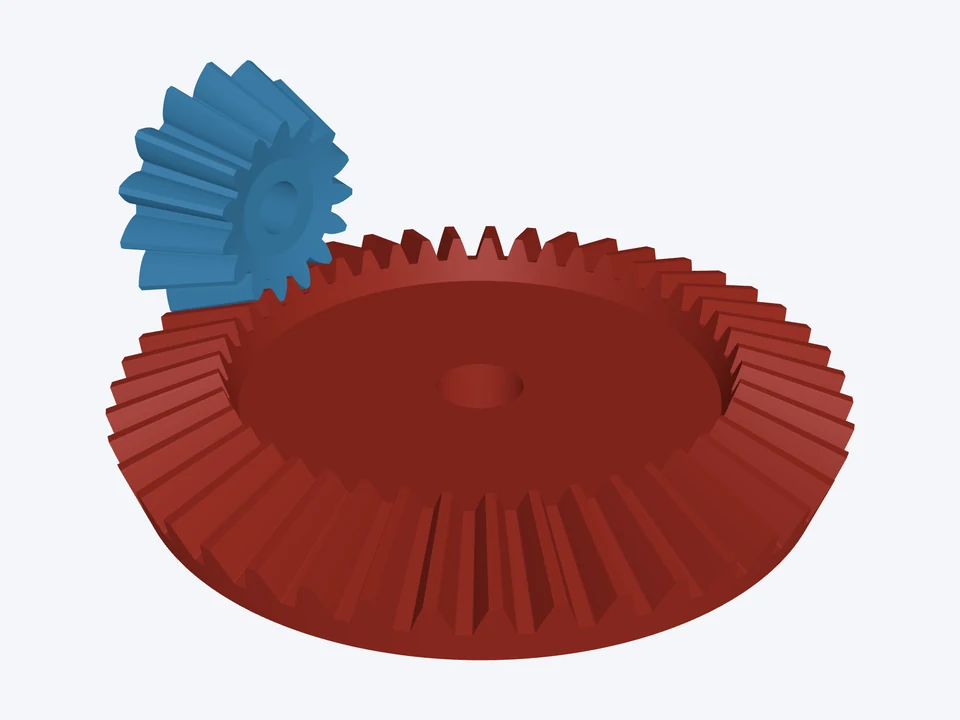

The 15 : 45 pair (module 2.2, 3 : 1) with AGMA 2005's mid-face proportions.
What's in this design

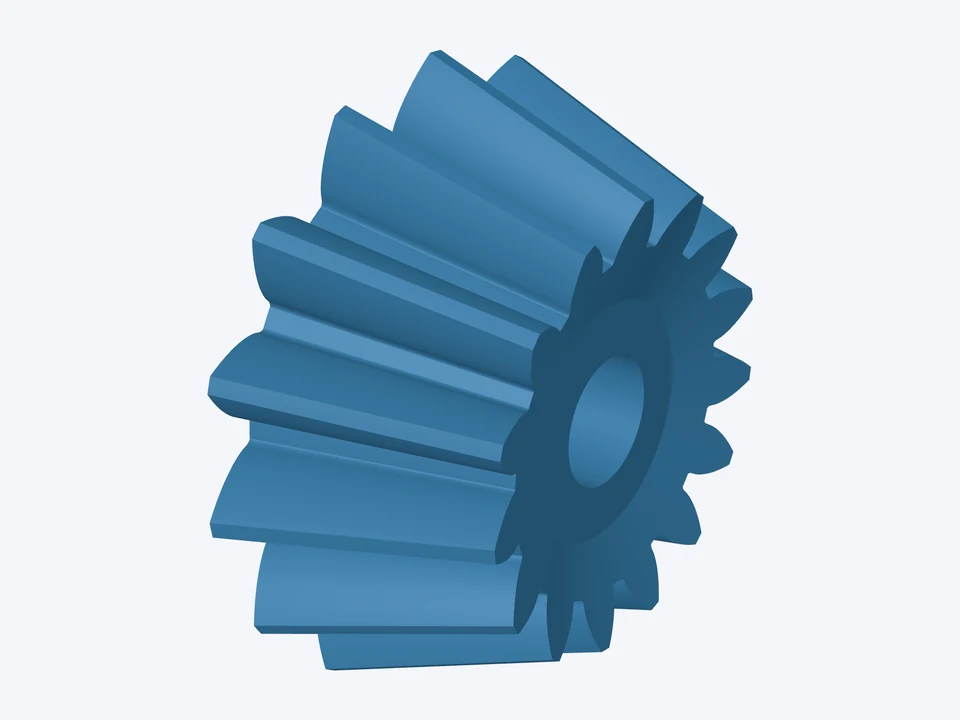

Pinion · 15 teeth
- 15 teeth · outside Ø39.48, pitch Ø33 mm at the heel · pitch angle 18.43° · face 15.5 mm · mounting distance 51.6 mm · bore Ø8 mm · no hub
Gear · 45 teeth
- 45 teeth · outside Ø99.73, pitch Ø99 mm at the heel · pitch angle 71.57° · face 15.5 mm · mounting distance 24.96 mm · bore Ø12 mm · no hub
The mesh · m 2.2 · 20° · straight, AGMA 2005 proportions
- ratio 3 : 1 · shaft angle 90° · straight teeth
The link opens the pinion and gear in the Bevel Gear Designer's 3D view. Change the teeth, the module or pitch, the shaft angle, the bores or hubs, then download STL, STEP or a drawing.
