30 : 1 · module 2, one start

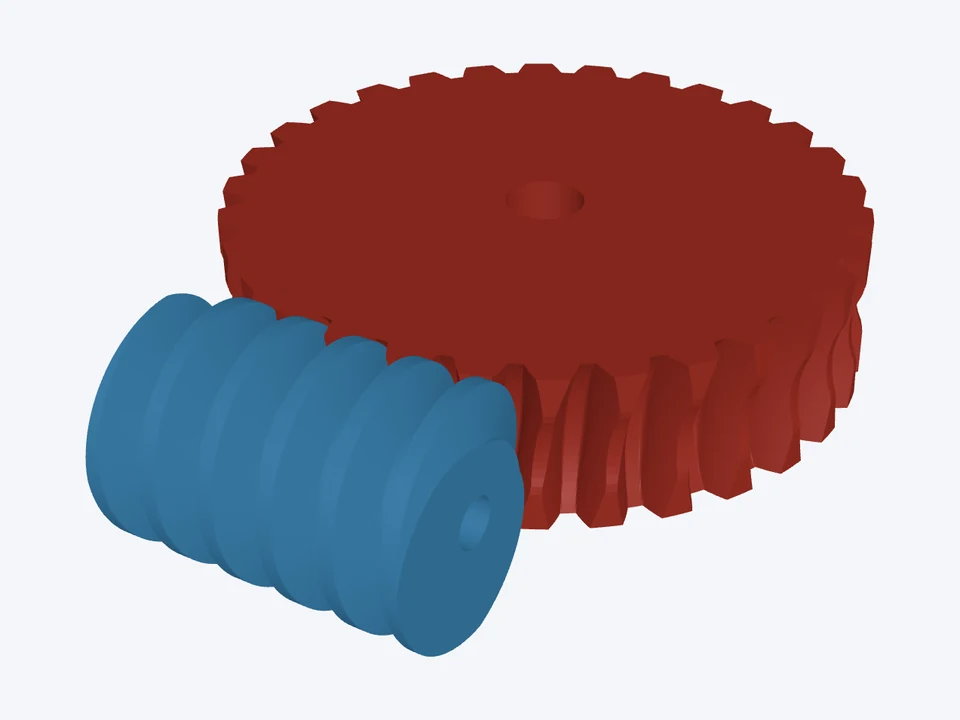

The starter drive: a single-start module 2 worm turning a 30-tooth throated wheel, 30 : 1.
What's in this design

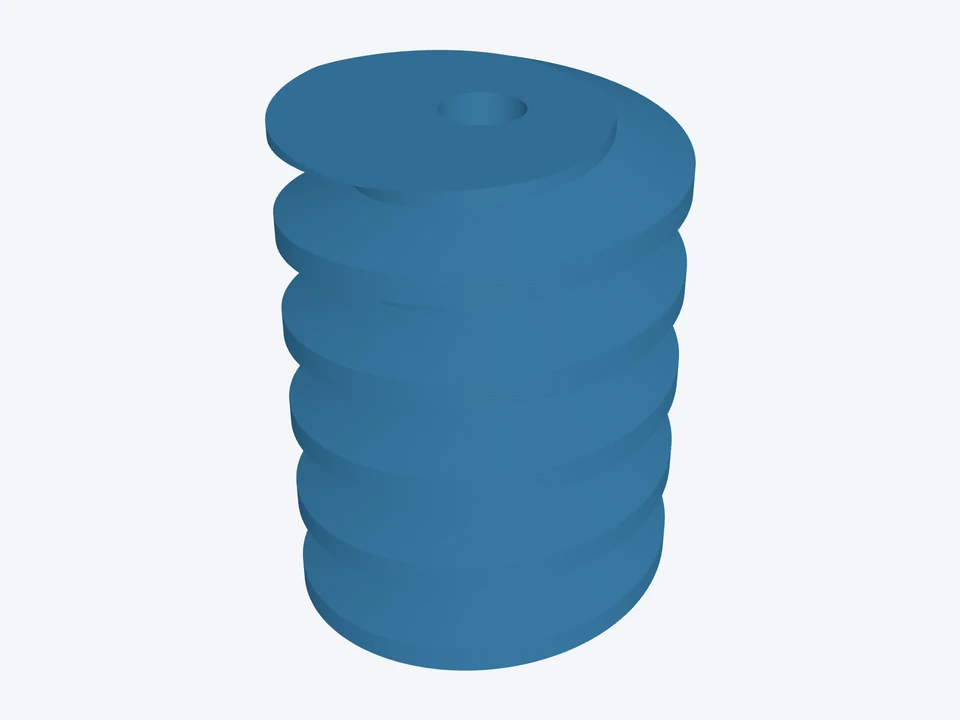

Worm · 1 start
- 1 start, right hand · tip Ø24, pitch Ø20, root Ø15 mm · 33 mm long · bore Ø5 mm · no hub
Wheel · 30 teeth
- 30 teeth, throated · outside Ø66, pitch Ø60 mm · face 16.5 mm · bore Ø8 mm · no hub
The mesh · m 2 · 20° · ZA
- ratio 30 : 1 · centre distance 40 mm · lead angle 5.71° · efficiency 65 % (μ 0.05) · back-drivable
The link opens the worm and wheel in the Worm Gear Designer's 3D view. Change the module or pitch, the starts, the wheel's teeth, the bores or hubs, then download STL or STEP.
