A printable 40 : 1 reduction on 5 mm and 8 mm D-flat shafts, with 0.1 mm print compensation on both parts.
What's in this design

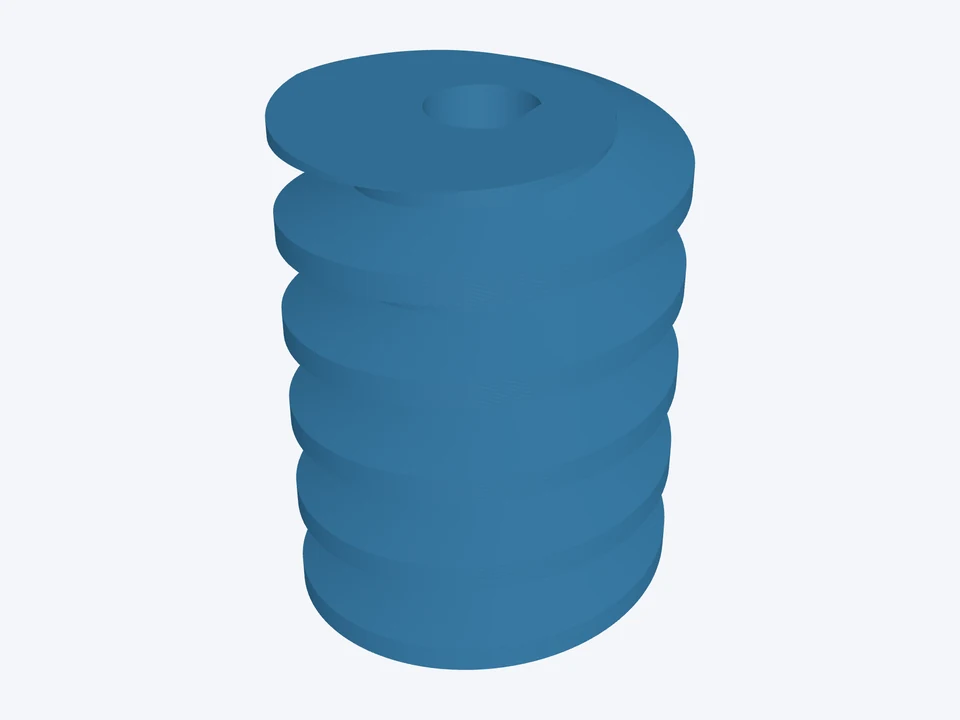

Worm · 1 start
- 1 start, right hand · tip Ø18, pitch Ø15, root Ø11.25 mm · 25 mm long · bore Ø5 mm D-flat · no hub
Wheel · 40 teeth
- 40 teeth, throated · outside Ø64.5, pitch Ø60 mm · face 12.5 mm · bore Ø8 mm D-flat · no hub

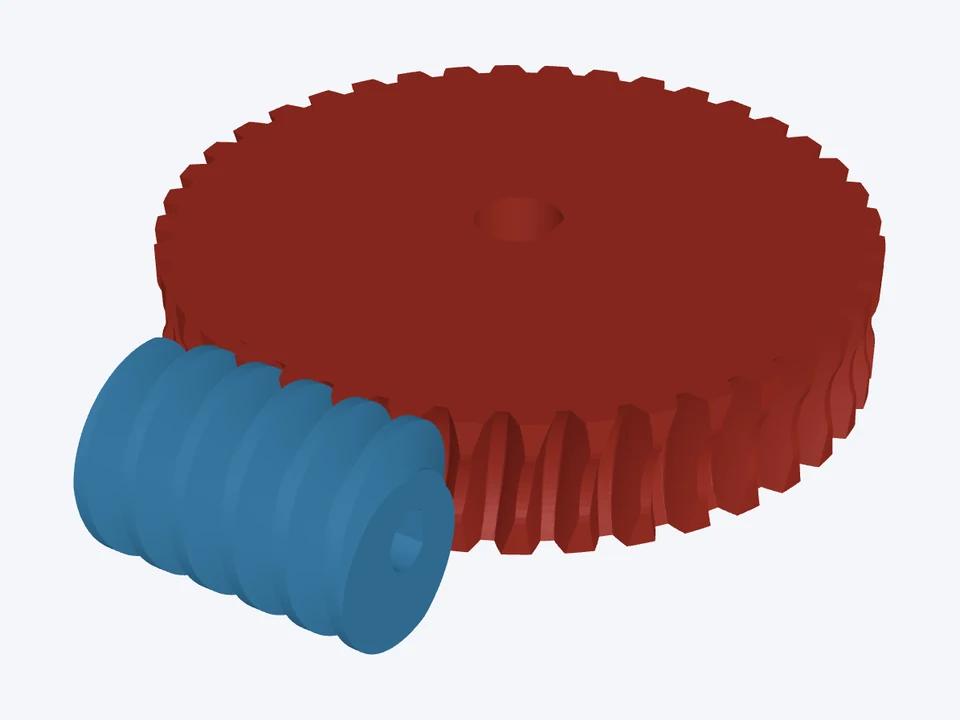

The mesh · m 1.5 · 20° · ZA
- ratio 40 : 1 · centre distance 37.5 mm · lead angle 5.71° · efficiency 65 % (μ 0.05) · back-drivable
The link opens the worm and wheel in the Worm Gear Designer's 3D view. Change the module or pitch, the starts, the wheel's teeth, the bores or hubs, then download STL or STEP.
