Sample · m_n 4 · 20° · ZI

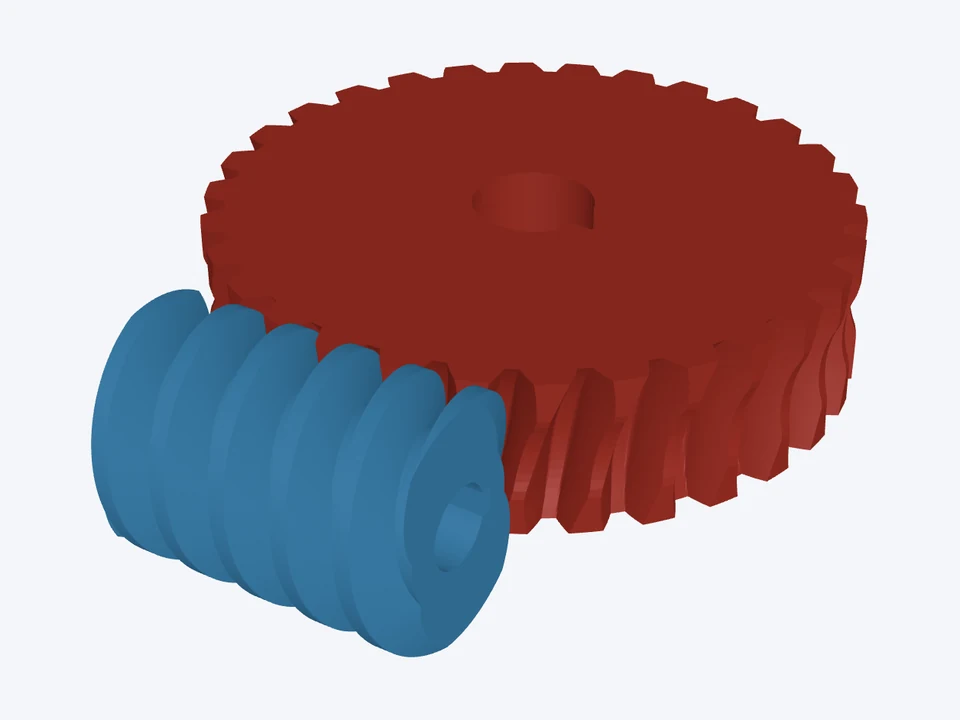

15 : 1 · normal module 4, ZI
A two-start involute worm sized in the normal system (m_n 4), on keyed 16 mm and 25 mm shafts.
What's in this design

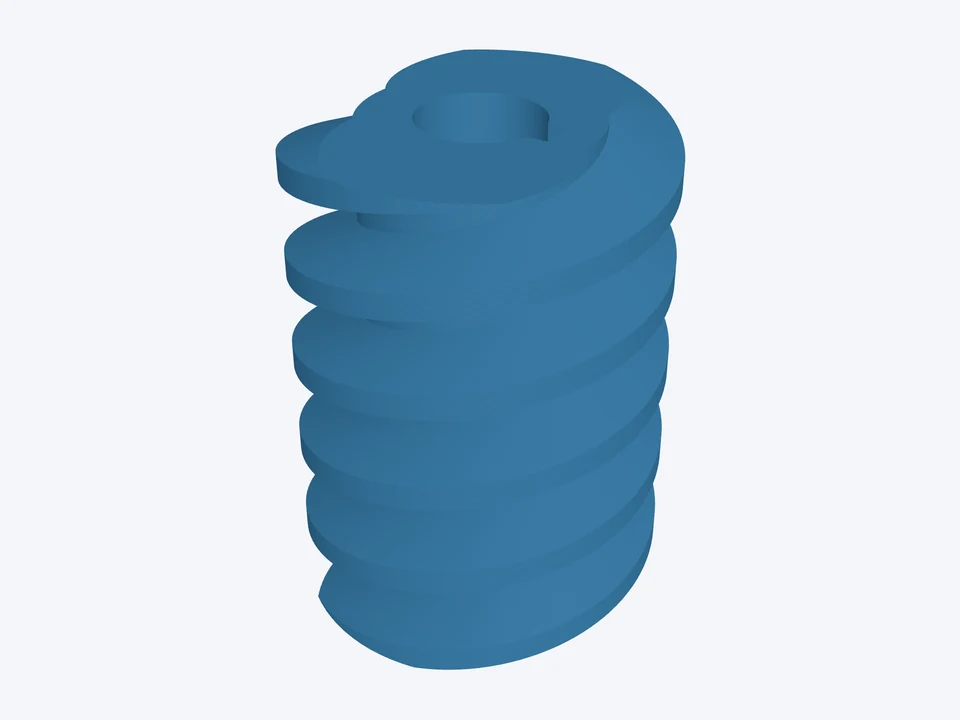

Worm · 2 starts
- 2 starts, right hand · tip Ø48, pitch Ø40, root Ø30 mm · 66 mm long · bore Ø16 mm, keyway 5 mm wide · no hub
Wheel · 30 teeth
- 30 teeth, throated · outside Ø134.47, pitch Ø122.47 mm · face 33 mm · bore Ø25 mm, keyway 8 mm wide · no hub
The mesh · m_n 4 · 20° · ZI
- ratio 15 : 1 · centre distance 81.237 mm · lead angle 11.54° · efficiency 78 % (μ 0.05) · back-drivable
The link opens the worm and wheel in the Worm Gear Designer's 3D view. Change the module or pitch, the starts, the wheel's teeth, the bores or hubs, then download STL or STEP.
