Sample · m 1 · 20° · ZA

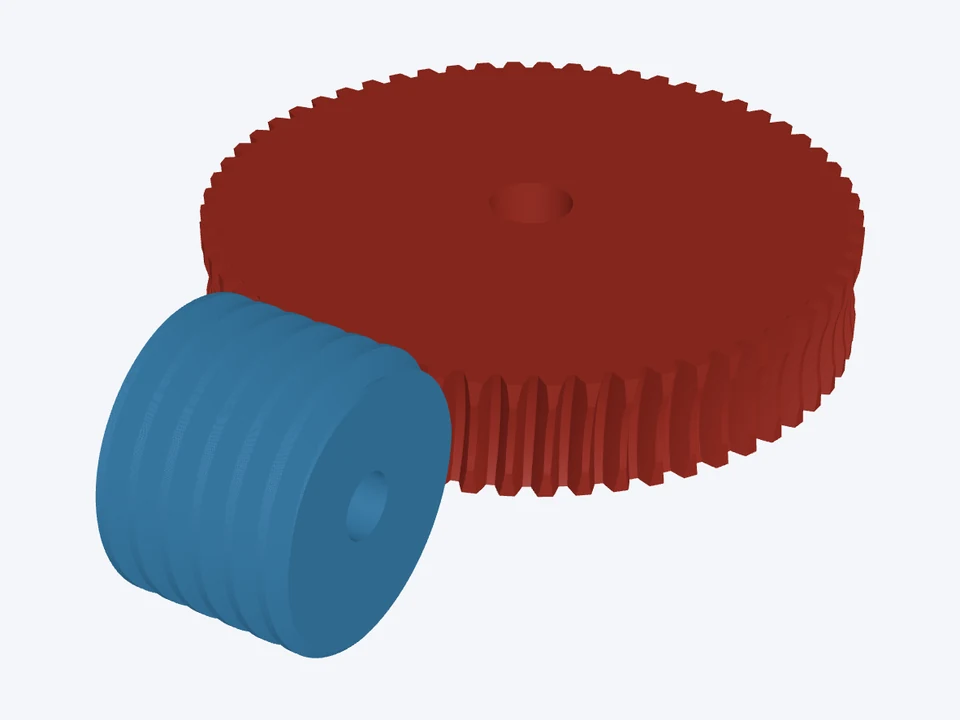

60 : 1 indexer · module 1
A fine module 1 indexing drive: 60 : 1, self-locking, on 6 mm and 8 mm shafts.
What's in this design

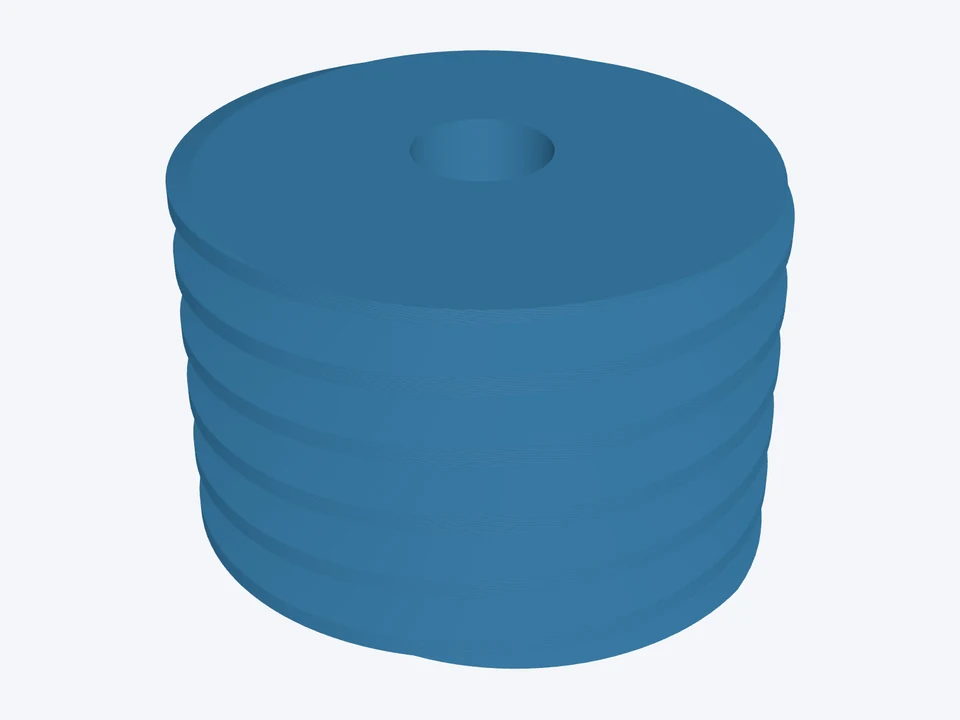

Worm · 1 start
- 1 start, right hand · tip Ø26, pitch Ø24, root Ø21.5 mm · 18 mm long · bore Ø6 mm · no hub
Wheel · 60 teeth
- 60 teeth, throated · outside Ø63, pitch Ø60 mm · face 11.5 mm · bore Ø8 mm · no hub
The mesh · m 1 · 20° · ZA
- ratio 60 : 1 · centre distance 42 mm · lead angle 2.39° · efficiency 44 % (μ 0.05) · self-locking
The link opens the worm and wheel in the Worm Gear Designer's 3D view. Change the module or pitch, the starts, the wheel's teeth, the bores or hubs, then download STL or STEP.
