Sample · m 2 · 20° · ZA

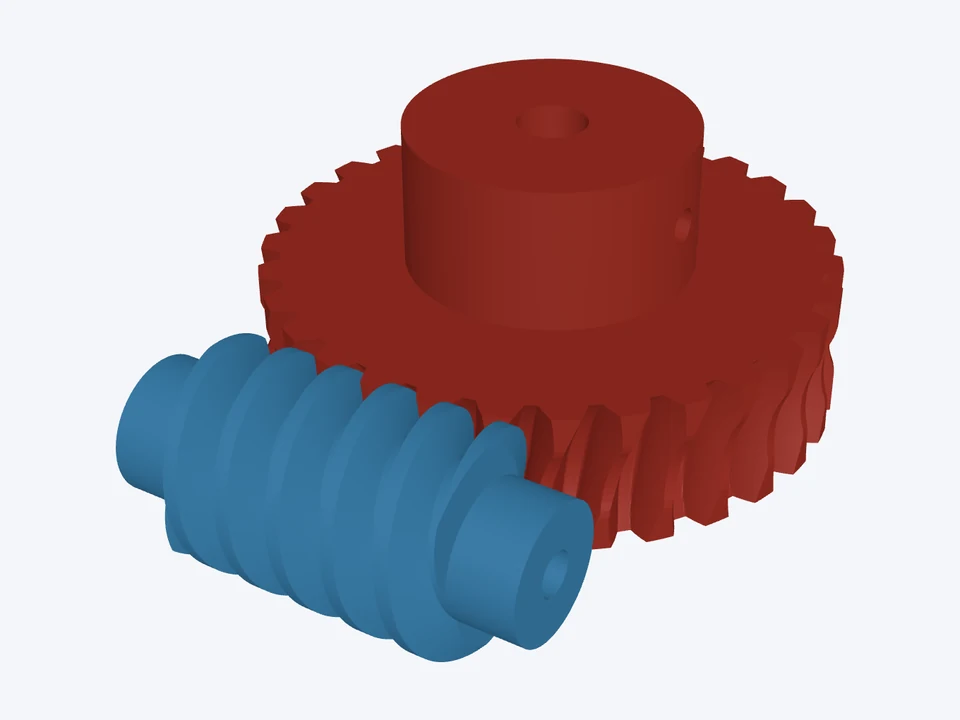

15 : 1 · hubs with heat-set inserts
Hubs on both parts with M3 set screws in heat-set inserts, for a printed two-start drive.
What's in this design

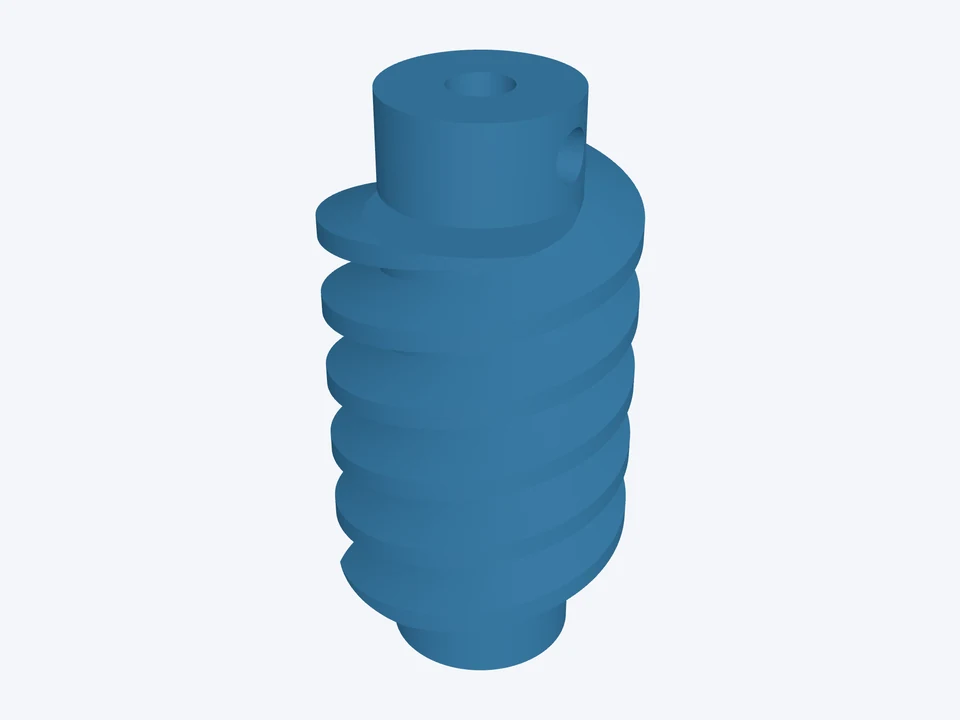

Worm · 2 starts
- 2 starts, right hand · tip Ø24, pitch Ø20, root Ø15 mm · 33 mm long · bore Ø5 mm · hub on both ends, 1 × M3 set screw (heat-set insert)
Wheel · 30 teeth
- 30 teeth, throated · outside Ø66, pitch Ø60 mm · face 16.5 mm · bore Ø8 mm · hub on one end, 2 × M3 set screws (heat-set insert)
The mesh · m 2 · 20° · ZA
- ratio 15 : 1 · centre distance 40 mm · lead angle 11.31° · efficiency 78 % (μ 0.05) · back-drivable
The link opens the worm and wheel in the Worm Gear Designer's 3D view. Change the module or pitch, the starts, the wheel's teeth, the bores or hubs, then download STL or STEP.
