Sample · 12 DP · 20° · ZA
24 : 1 · 12 DP

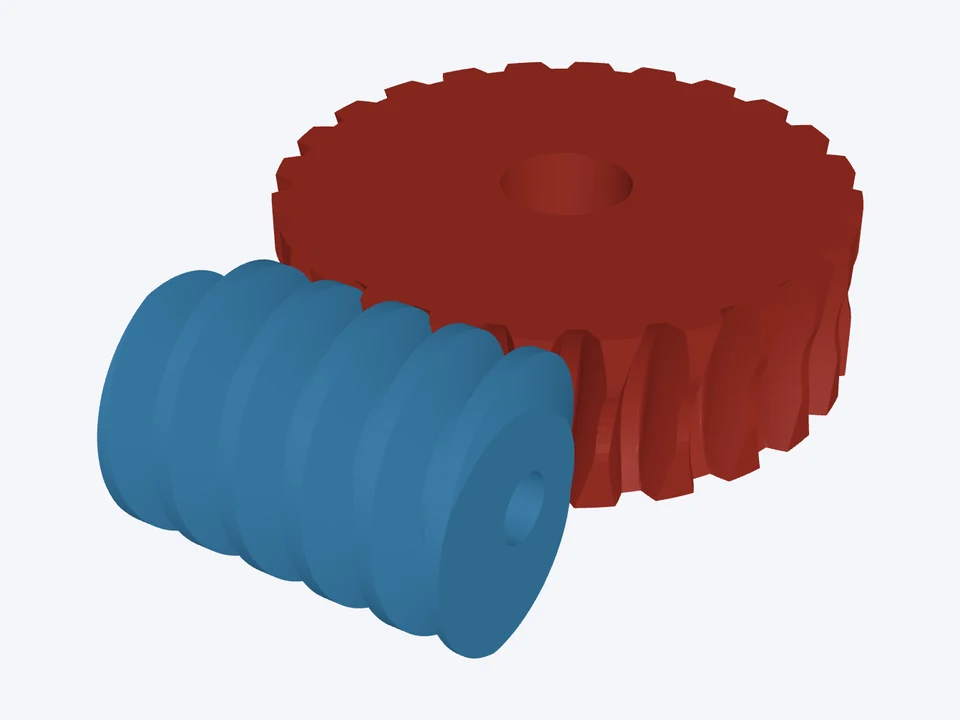

A 12 DP single-start worm on a ¼" shaft driving a 24-tooth wheel on ½", Boston Gear style.
What's in this design

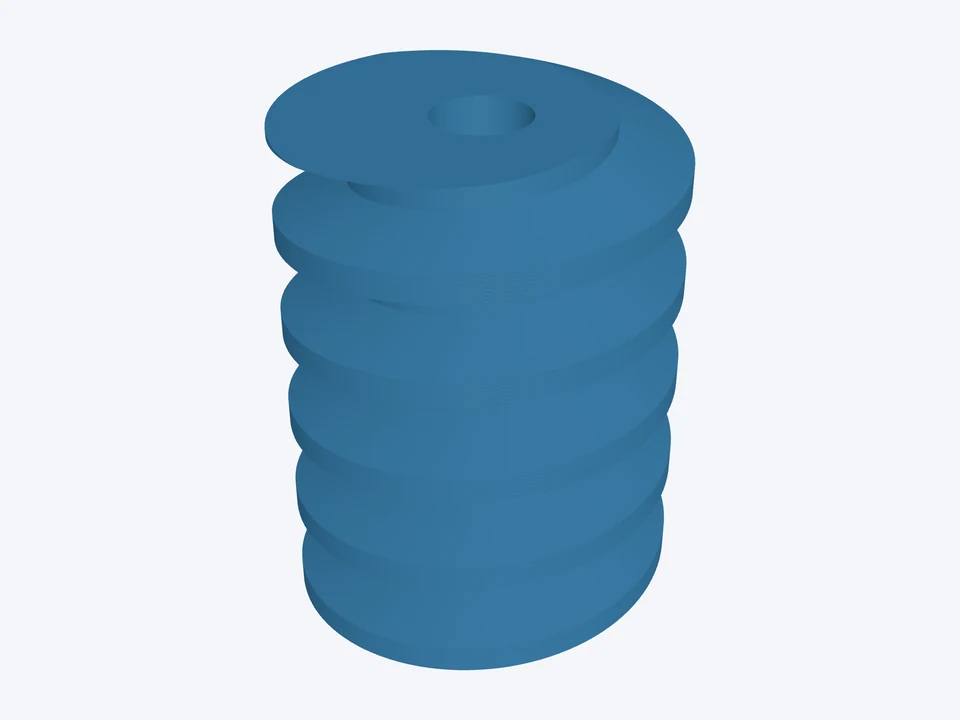

Worm · 1 start
- 1 start, right hand · tip Ø25.4, pitch Ø21.17, root Ø16.27 mm · 34 mm long · bore ؼ" · no hub
Wheel · 24 teeth
- 24 teeth, throated · outside Ø56.3, pitch Ø50.8 mm · face 17.5 mm · bore ؽ" · no hub
The mesh · 12 DP · 20° · ZA
- ratio 24 : 1 · centre distance 35.983 mm · lead angle 5.71° · efficiency 65 % (μ 0.05) · back-drivable
The link opens the worm and wheel in the Worm Gear Designer's 3D view. Change the module or pitch, the starts, the wheel's teeth, the bores or hubs, then download STL or STEP.
