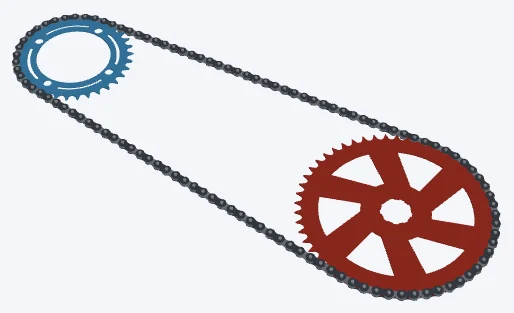

Sample · MTB 34T · 10-52, lowest gear

34T × 52T · racer's ring

Narrow-wide and windowed, 104 × 4.

Mountain bike34 : 52

Build it with your AI

Using the CheapCAD Tools connector, design a two-sprocket drive in Sprocket Designer on 12sp (12-speed bicycle) roller chain, about 435 mm between centres. Sprocket 1: 34 teeth, a chainring; a 104 mm bolt circle (BCD) with 4 bolts; narrow-wide teeth; a 89.8 mm centre opening; spokes: a windowed web, Band OD 104 mm, Rim Depth 9 mm, Tab Wall ×2 18 mm; no tooth chamfer. Sprocket 2: 52 teeth, a cog; an ISO 14 straight-sided spline bore: 9 splines, minor diameter 32.5 mm, major 34.75 mm, width 6.25 mm, one key slot 3.25 mm wide (the Shimano HG cassette spline); spokes: tapered spokes, 6 of them, Hub OD 76 mm, Rim Depth 18 mm, Width at Rim 32 mm, Width at Hub 26 mm, Angle Offset 12°; no tooth chamfer. Check the design, apply any Auto-fix it suggests, then export both sprockets as STL and give me the download link.

Paste it into Claude, ChatGPT or any AI app with the CheapCAD Tools connector, and it designs this drive with you, checks it and hands you the files. How to connect your AI.

What's in this design

Sprocket 1 · 34 teeth

34T · 12-speed · chainring · 104 BCD × 4 · windowed · narrow-wide
214 MPa peak · SF 2.35 in 7075 · rim moves 0.14 mm · 1.90 mm plate · 41 % solid

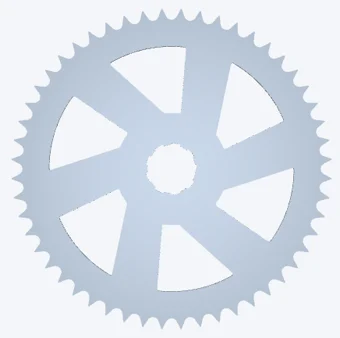

Sprocket 2 · 52 teeth

52T · 12-speed · cassette cog · Shimano HG spline · tapered spokes × 6, 12° offset
250 MPa peak · SF 2.01 in 7075 · rim moves 0.86 mm · 1.60 mm plate · 64 % solid

The link opens both sprockets and the chain in the Sprocket Designer's 3D Mode. Change the teeth, bore, hub or spokes, then download STL, STEP, DXF or SVG. Strength figures are the app's plane-stress check of each sprocket in the material it names; SF is the safety factor.
