Sample · BMX street 25/9
25/9 · classic five-spoke
The straight five-spoke street sprocket, after BSD's Guard.
Build it with your AI
Using the CheapCAD Tools connector, design a two-sprocket drive in Sprocket Designer on 081C (⅛" single-speed bicycle) roller chain, 78 chain links. Sprocket 1: 25 teeth, a sprocket; a 23.8 mm bore; spokes: straight spokes, 5 of them, Hub OD 50 mm, Rim Depth 9 mm, Spoke Width 16 mm; no tooth chamfer. Sprocket 2: 9 teeth, a sprocket; a 12 mm bore; no tooth chamfer. Check the design, apply any Auto-fix it suggests, then export both sprockets as STL and give me the download link.
Paste it into Claude, ChatGPT or any AI app with the CheapCAD Tools connector, and it designs this drive with you, checks it and hands you the files. How to connect your AI.
What's in this design

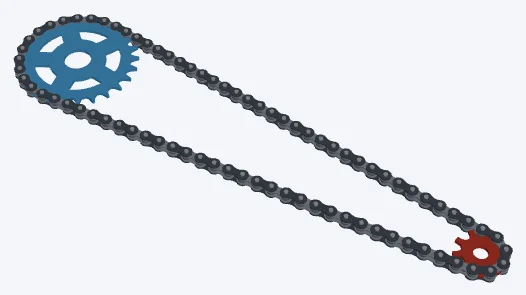

Sprocket 1 · 25 teeth
- 25T · ⅛" single speed · sprocket · bore Ø23.8 · straight spokes × 5
- 214 MPa peak · SF 2.35 in 7075 · rim moves 0.32 mm · 3.07 mm plate · 63 % solid

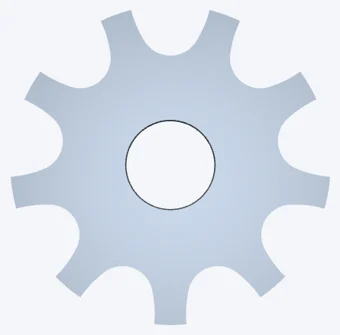

Sprocket 2 · 9 teeth
- 9T · ⅛" single speed · sprocket · bore Ø12
- 283 MPa peak · SF 1.78 in 7075; make it steel · rim moves 0.16 mm · 3.07 mm plate · 60 % solid
The link opens both sprockets and the chain in the Sprocket Designer's 3D Mode. Change the teeth, bore, hub or spokes, then download STL, STEP, DXF or SVG. Strength figures are the app's plane-stress check of each sprocket in the material it names; SF is the safety factor.
