1 : 5 speed-up · wind turbine

Ring held, carrier in, sun out: the sun turns five times as fast, to spin a small generator.

Demo sets & desk toys1 : 53 planetsRing heldSpeed-up

Build it with your AI

Using the CheapCADTools connector, design a 1 : 5 speed-up planetary gear set in Planetary Gear Designer: module 1.5 mm, 20° pressure angle, herringbone teeth, an 18-tooth sun, 27-tooth planets and a 72-tooth ring, three planets, a profile shift of 0.2 on the planets, face width 14 mm, the ring held and the carrier as the input, so the sun is the output. The sun: an 8 mm bore. The carrier's output: a 10 mm bore. Check the design, apply any Auto-fix it suggests, then export every part (the sun, a planet, the ring and the carrier) as STEP and STL and give me the download link.

Paste it into Claude, ChatGPT or any AI app with the CheapCADTools connector, and it designs this planetary set with you, checks it and hands you the files. How to connect your AI.

What's in this design

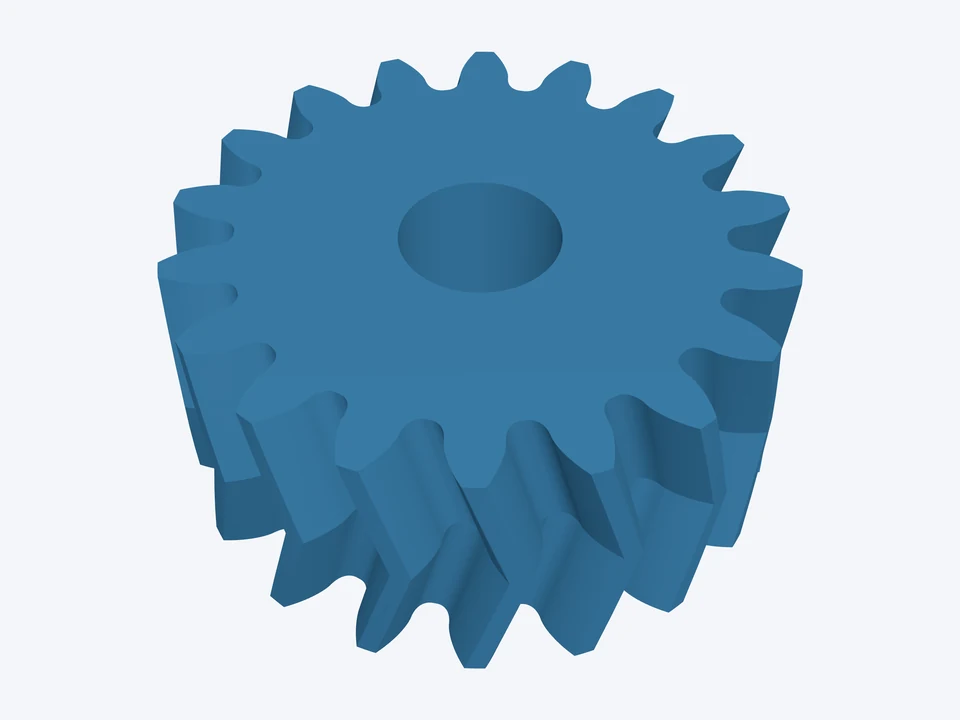

Sun

18 teeth · no shift · tip Ø30.94 mm · face 14 mm · bore Ø8 mm · no hub

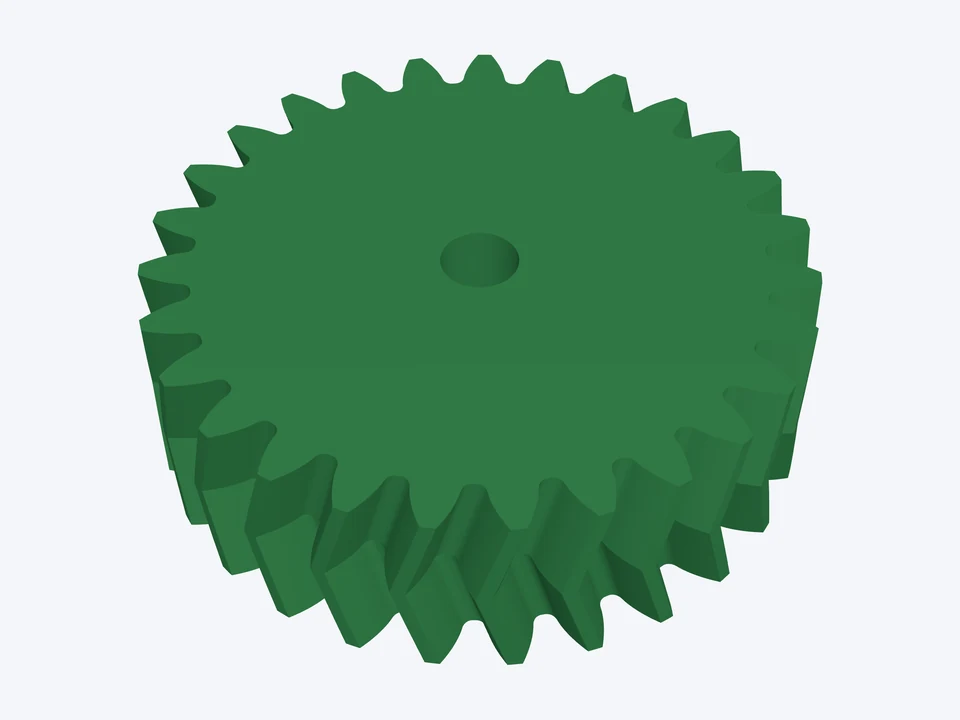

Planets · 3

27 teeth · shift +0.2 · tip Ø45.51 mm · face 14 mm · bore Ø5.3 mm on a Ø5 mm pin · print 3

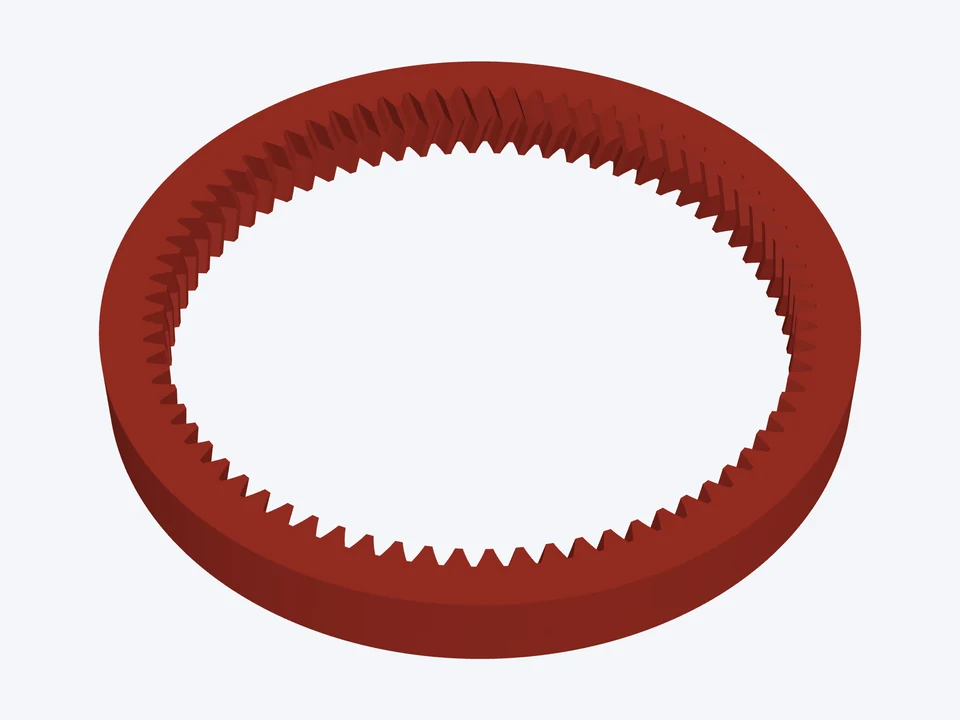

Ring

72 internal teeth · shift −0.4 · outside Ø132.03 mm · rim 7.5 mm below the roots

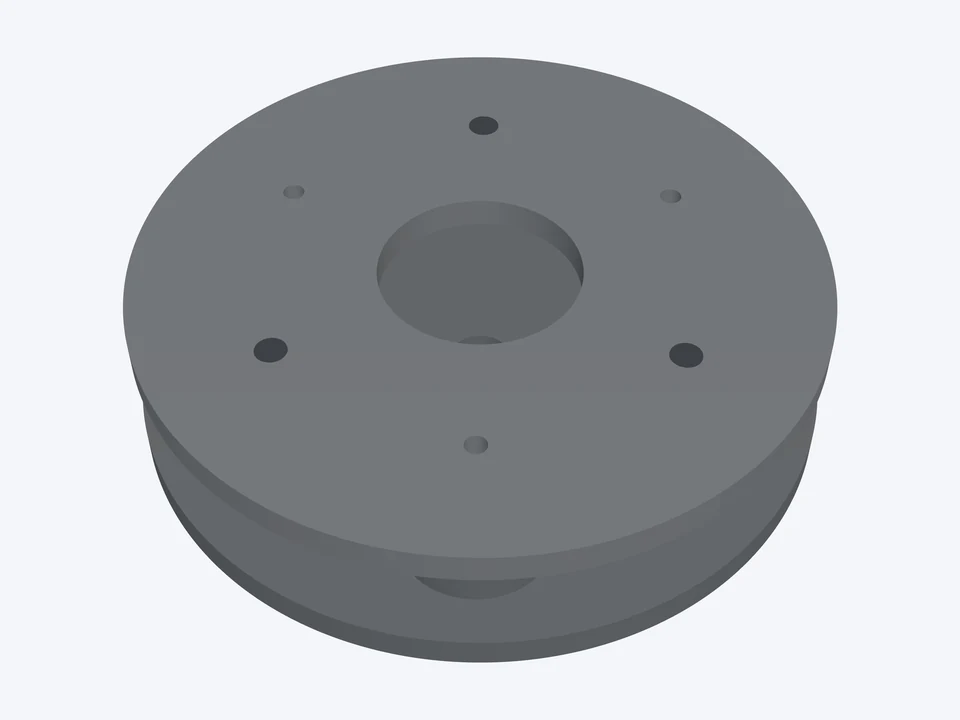

Carrier

straddle (two discs and posts) · disc Ø109.01 × 5 mm · 3 pins Ø5 × 25.0 mm · output bore Ø10 mm

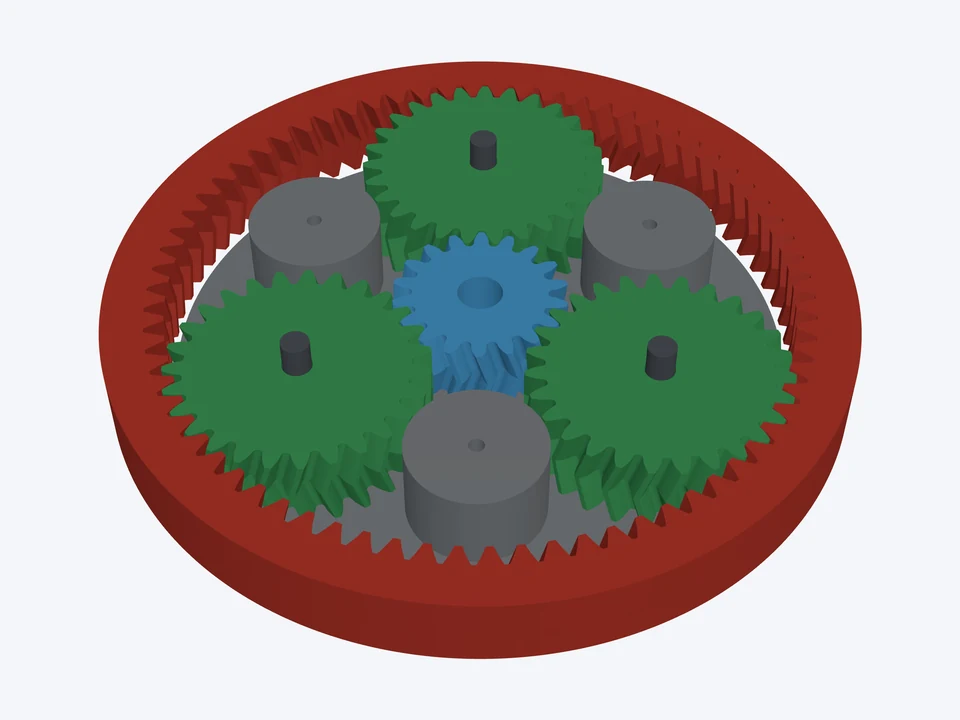

The set · Module 1.5 · 20° · herringbone

1 : 5 speed-up: the ring is held, the carrier is the input and the sun the output, 5 times as fast.

Notes

Hardware: 3 × planet pin Ø5 × 25.0 mm; 3 × M3 screw, about 11 mm long.
The Strength check rates spur sets only: helical and herringbone sets aren't rated yet.

The link opens the whole set in the Planetary Gear Designer's 3D view. Change the teeth, the number of planets or stages, which member is held, the carrier, bores or hubs, then download STL, STEP or the carrier's DXF and SVG.
