3 : 1 · six planets

Six planets round a big sun: a striking demo and a strong, low ratio.

Demo sets & desk toys3 : 16 planetsRing held

Build it with your AI

Using the CheapCADTools connector, design a 3 : 1 planetary gear set in Planetary Gear Designer: module 1 mm, 20° pressure angle, spur teeth, a 42-tooth sun, 21-tooth planets and an 84-tooth ring, six planets, a profile shift of 0.2 on the planets, face width 8 mm. The sun: an 8 mm bore. The carrier's output: an 8 mm bore. Check the design, apply any Auto-fix it suggests, then export every part (the sun, a planet, the ring and the carrier) as STEP and STL and give me the download link.

Paste it into Claude, ChatGPT or any AI app with the CheapCADTools connector, and it designs this planetary set with you, checks it and hands you the files. How to connect your AI.

What's in this design

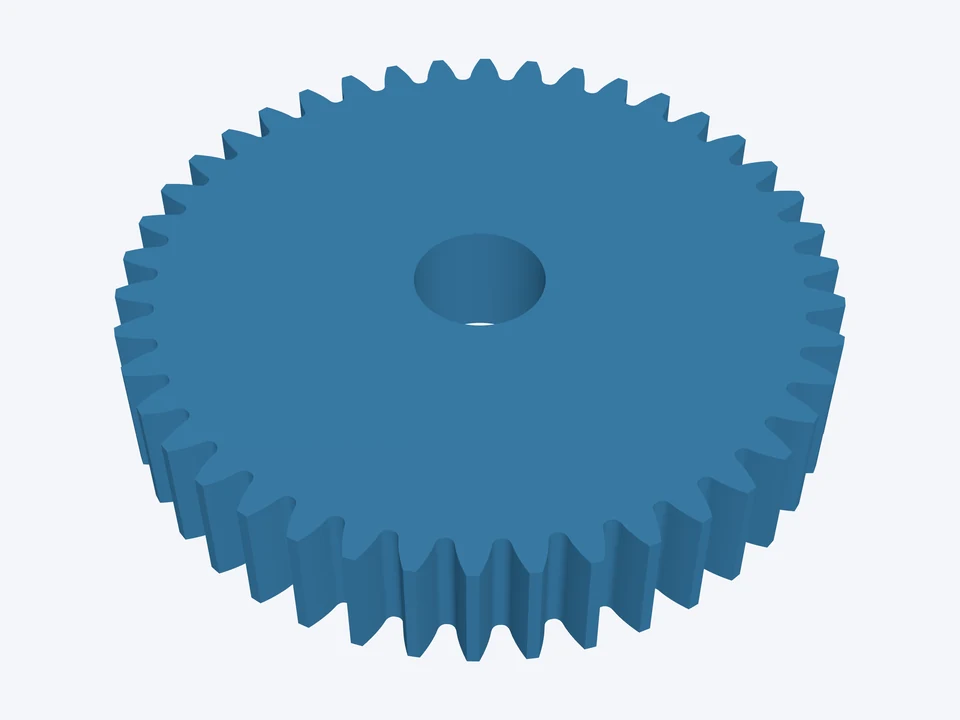

Sun

42 teeth · no shift · tip Ø43.99 mm · face 8 mm · bore Ø8 mm · no hub

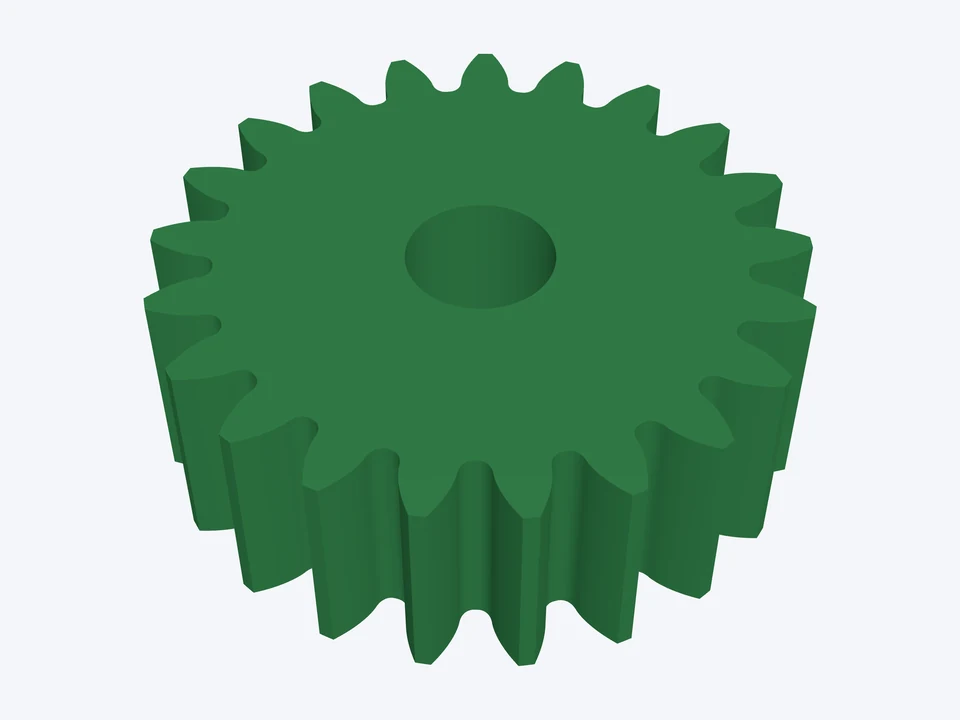

Planets · 6

21 teeth · shift +0.2 · tip Ø23.39 mm · face 8 mm · bore Ø5.3 mm on a Ø5 mm pin · print 6

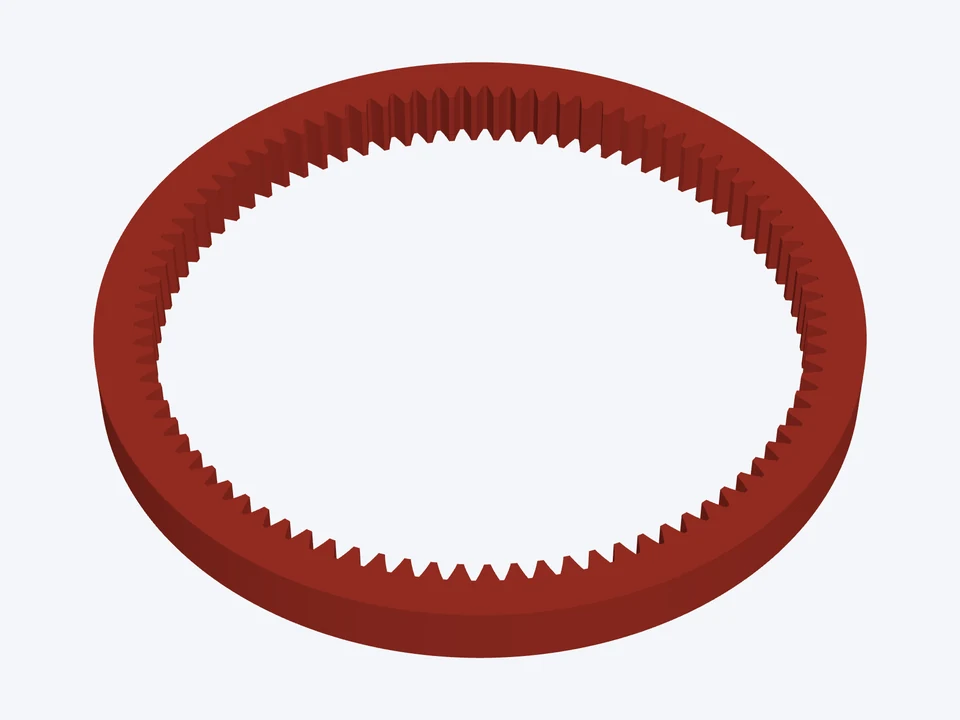

Ring

84 internal teeth · shift −0.4 · outside Ø97.57 mm · rim 5 mm below the roots

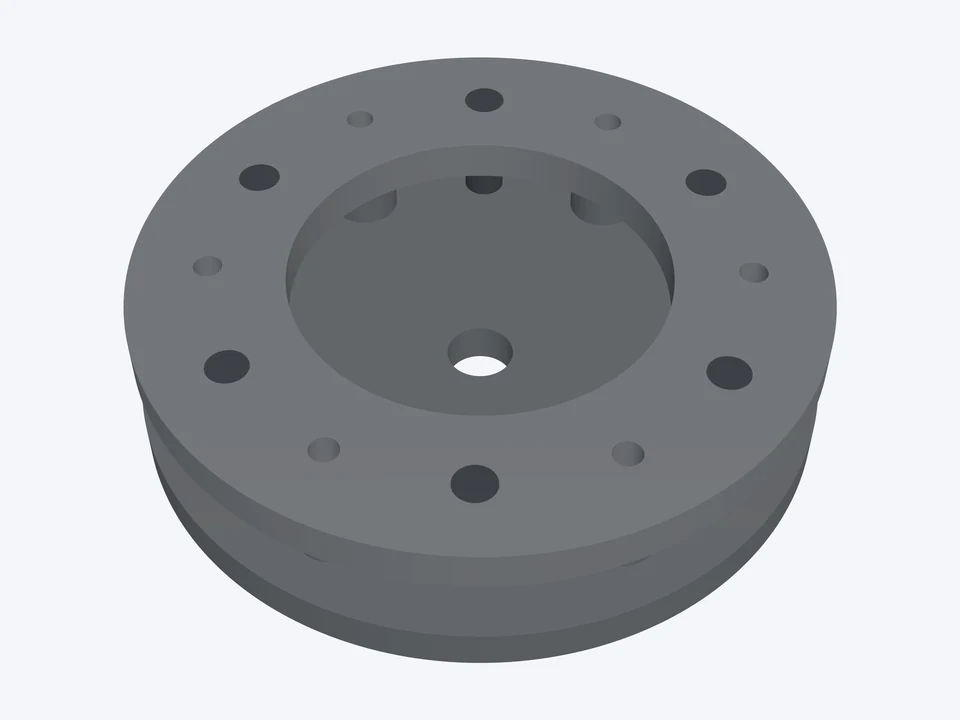

Carrier

straddle (two discs and posts) · disc Ø81.8 × 5 mm · 6 pins Ø5 × 19.0 mm · output bore Ø8 mm

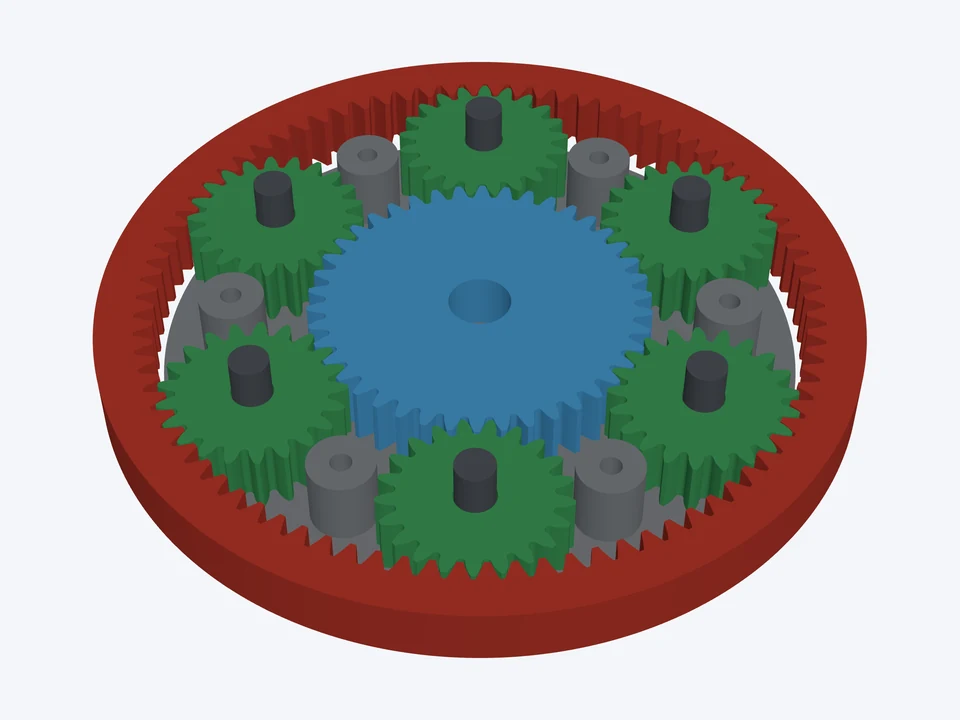

The set · Module 1 · 20° · spur

3 : 1 reduction: the ring is held, the sun is the input and the carrier the output.

Notes

Hardware: 6 × planet pin Ø5 × 19.0 mm; 6 × M3 screw, about 11 mm long.

The link opens the whole set in the Planetary Gear Designer's 3D view. Change the teeth, the number of planets or stages, which member is held, the carrier, bores or hubs, then download STL, STEP or the carrier's DXF and SVG.
