6 : 1 · 25° pressure angle

25° teeth: a 14-tooth sun without undercut and stronger roots, 6 : 1.

Industrial & heavy duty6 : 13 planetsRing held

Build it with your AI

Using the CheapCADTools connector, design a 6 : 1 planetary gear set in Planetary Gear Designer: module 2 mm, 25° pressure angle, spur teeth, a 14-tooth sun, 28-tooth planets and a 70-tooth ring, three planets, face width 16 mm. The sun: a 10 mm bore. The carrier's output: a 12 mm bore. Check the design, apply any Auto-fix it suggests, then export every part (the sun, a planet, the ring and the carrier) as STEP and STL and give me the download link.

Paste it into Claude, ChatGPT or any AI app with the CheapCADTools connector, and it designs this planetary set with you, checks it and hands you the files. How to connect your AI.

What's in this design

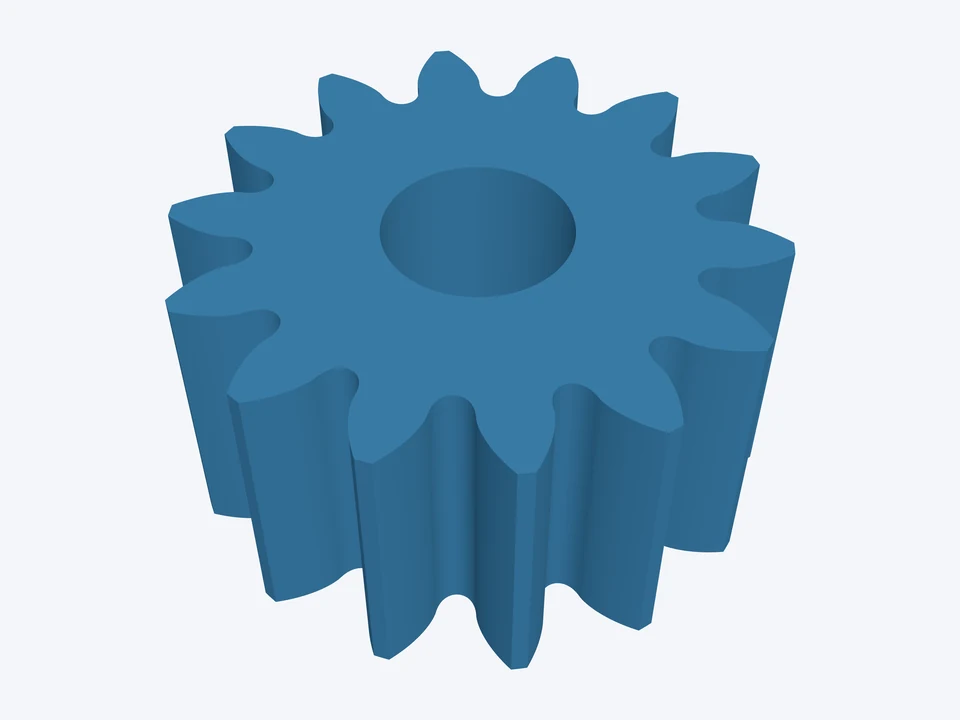

Sun

14 teeth · no shift · tip Ø32 mm · face 16 mm · bore Ø10 mm · no hub

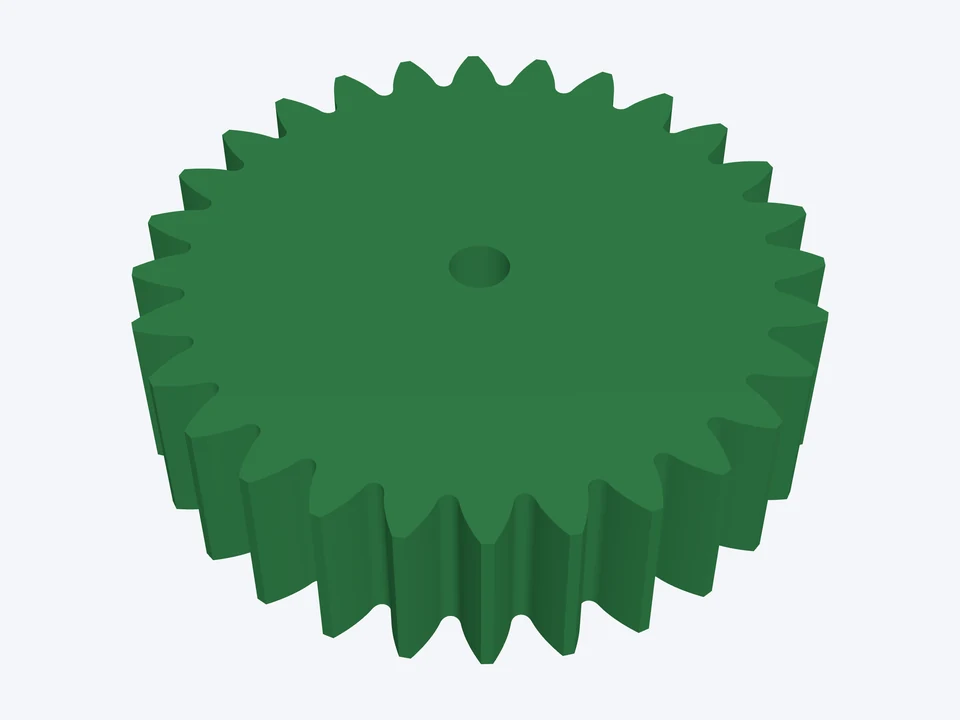

Planets · 3

28 teeth · no shift · tip Ø60 mm · face 16 mm · bore Ø5.3 mm on a Ø5 mm pin · print 3

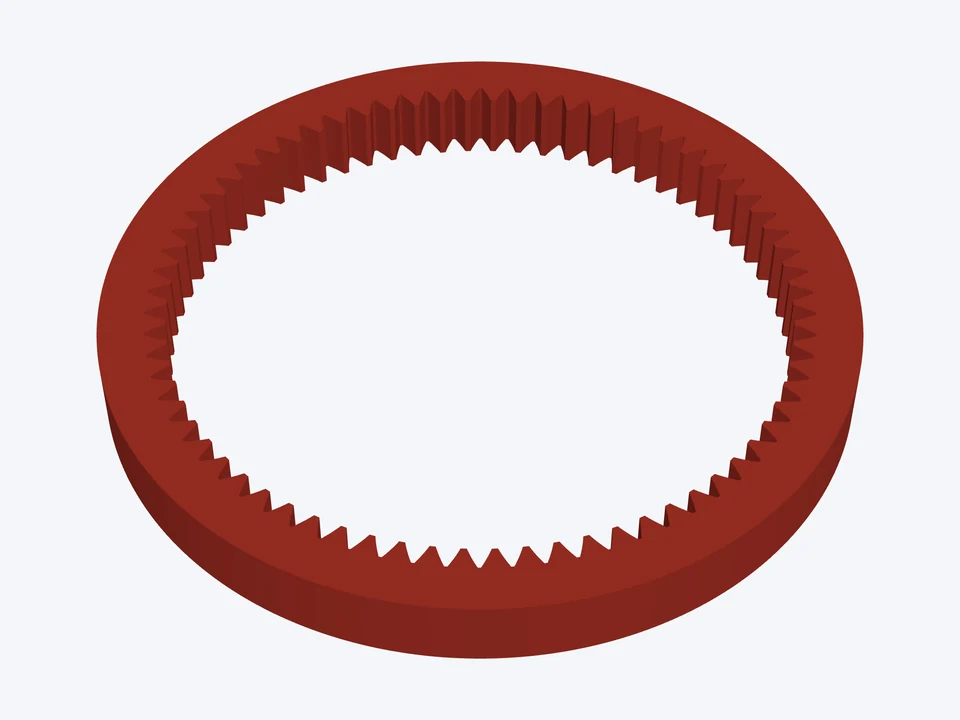

Ring

70 internal teeth · no shift · outside Ø165.29 mm · rim 10 mm below the roots

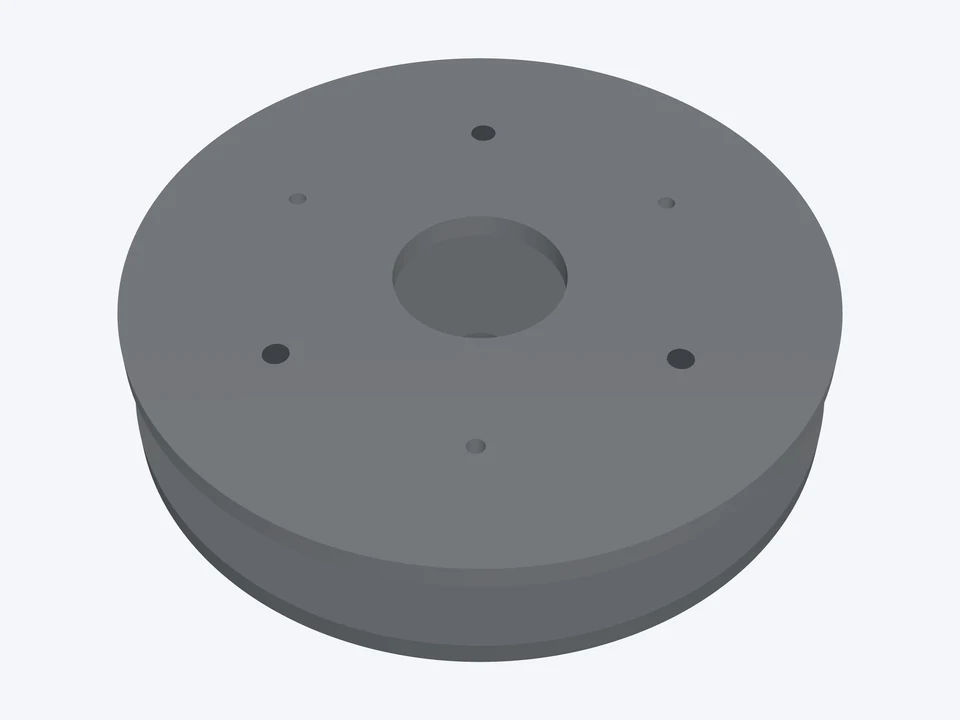

Carrier

straddle (two discs and posts) · disc Ø135 × 5 mm · 3 pins Ø5 × 27.0 mm · output bore Ø12 mm

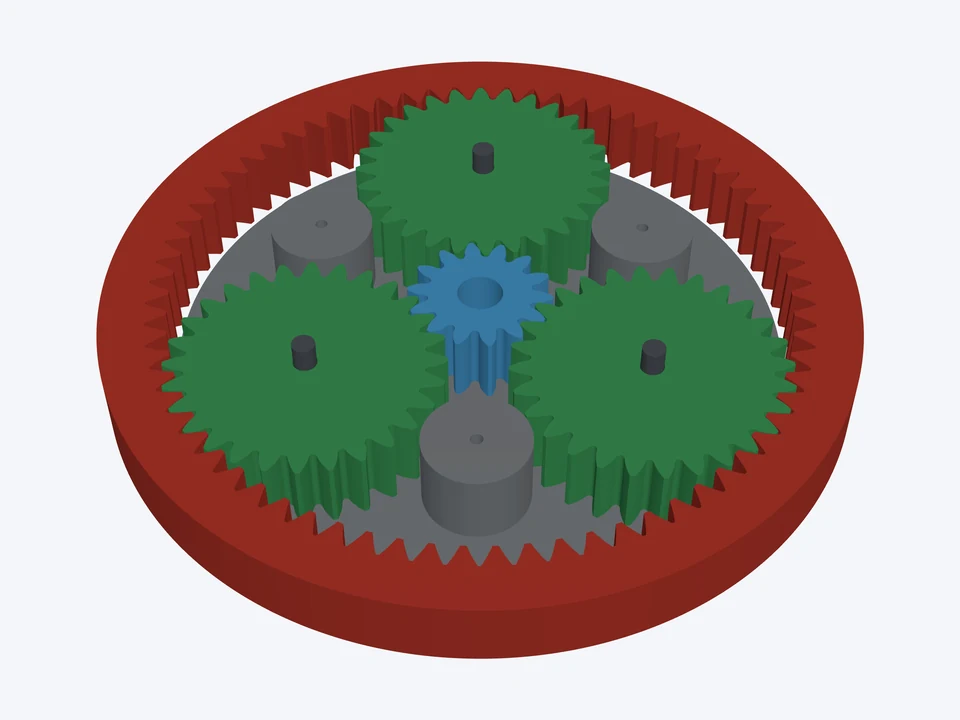

The set · Module 2 · 25° · spur

6 : 1 reduction: the ring is held, the sun is the input and the carrier the output.

Notes

Hardware: 3 × planet pin Ø5 × 27.0 mm; 3 × M3 screw, about 11 mm long.

The link opens the whole set in the Planetary Gear Designer's 3D view. Change the teeth, the number of planets or stages, which member is held, the carrier, bores or hubs, then download STL, STEP or the carrier's DXF and SVG.
