5 : 1 · module 2, keyed, 6000 bearings

A metal-ready 5 : 1: keyed shafts, planets on 6000 bearings, a flanged ring with eight M5 bolts.

Industrial & heavy duty5 : 13 planetsRing held

Build it with your AI

Using the CheapCADTools connector, design a 5 : 1 planetary gear set in Planetary Gear Designer: module 2 mm, 20° pressure angle, spur teeth, an 18-tooth sun, 27-tooth planets and a 72-tooth ring, three planets, a profile shift of 0.2 on the planets, face width 20 mm. The sun: a 12 mm bore with a keyway 4 mm wide and 1.8 mm deep. The carrier: each planet on a 6000 ball bearing. The carrier's output: a 16 mm bore with a keyway 5 mm wide and 2.3 mm deep. The ring: eight M5 bolt holes, a 14 mm rim below the roots. Set parts in mild steel and the Strength check's sun, planet and ring material to steel, through hardened, grade 1. Check the design, apply any Auto-fix it suggests, then export every part (the sun, a planet, the ring and the carrier) as STEP and STL and give me the download link.

Paste it into Claude, ChatGPT or any AI app with the CheapCADTools connector, and it designs this planetary set with you, checks it and hands you the files. How to connect your AI.

What's in this design

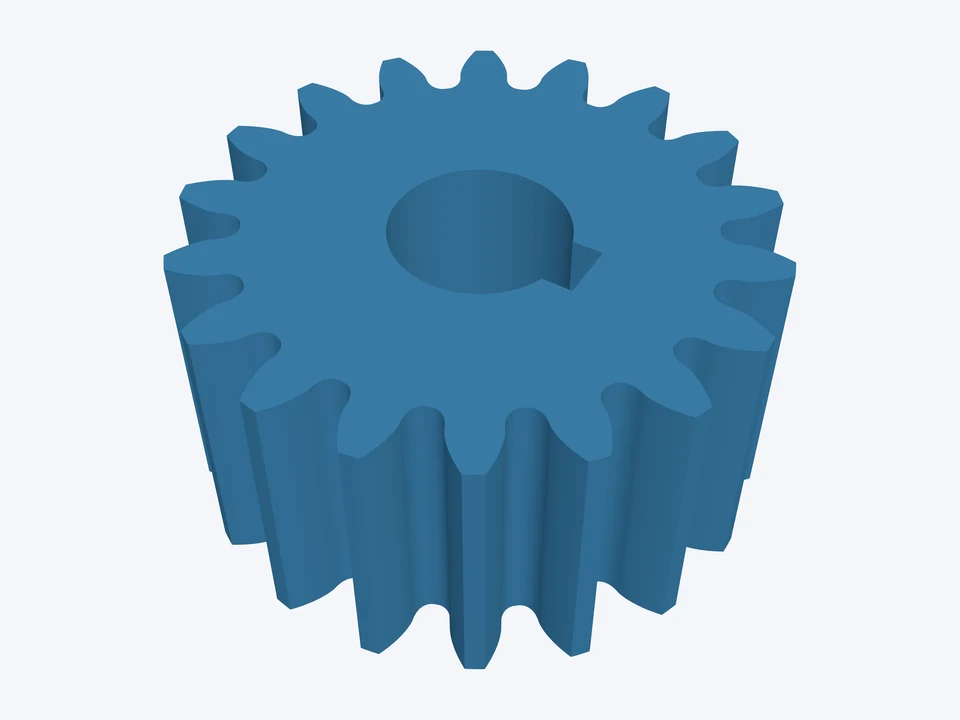

Sun

18 teeth · no shift · tip Ø39.98 mm · face 20 mm · bore Ø12 mm, keyway 4 mm wide × 1.8 mm deep · no hub

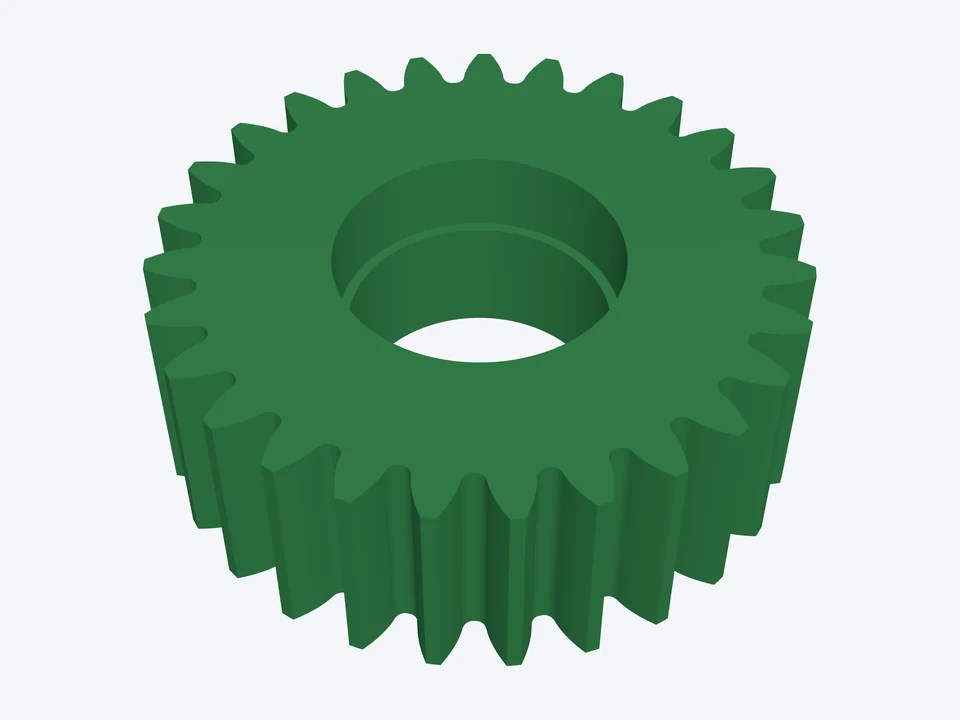

Planets · 3

27 teeth · shift +0.2 · tip Ø58.78 mm · face 20 mm · pocket Ø26 mm for 6000ZZ (10 × 26 × 8 mm) bearing · print 3

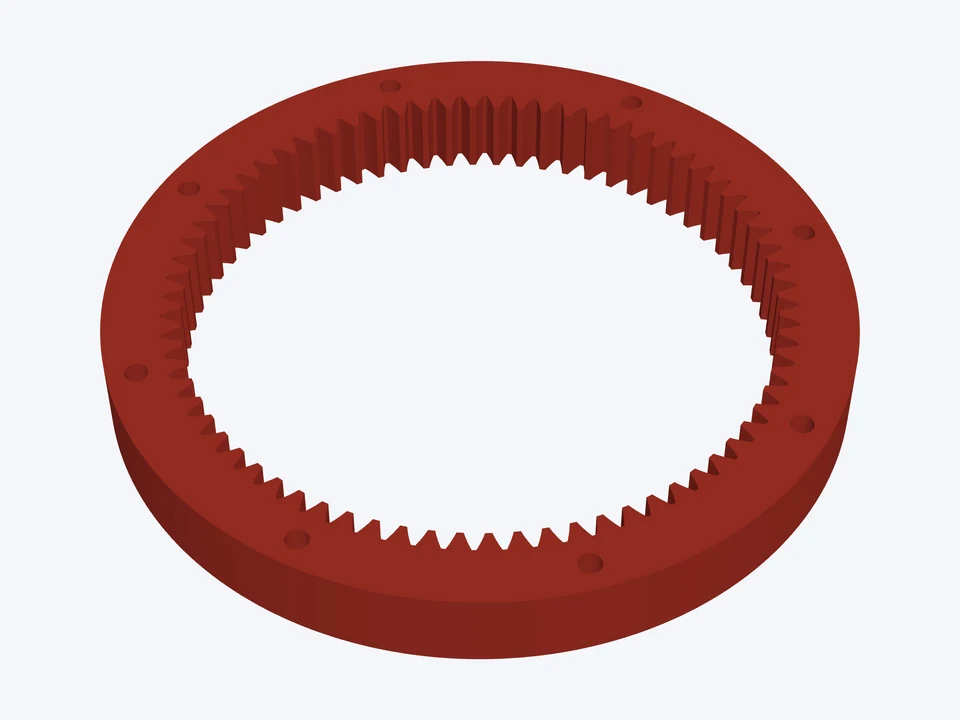

Ring

72 internal teeth · shift −0.4 · outside Ø178.97 mm · rim 14 mm below the roots · 8 × M5 bolt holes Ø5.5 mm on Ø165 mm

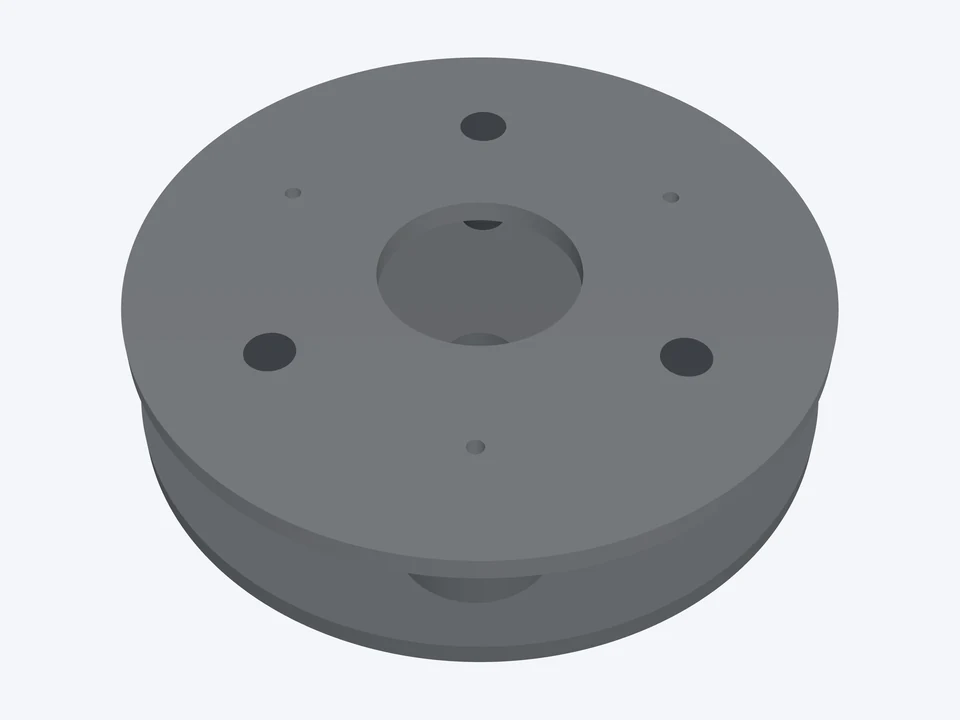

Carrier

straddle (two discs and posts) · disc Ø140.6 × 5 mm · 3 pins Ø10 × 31.0 mm · output bore Ø16 mm, keyway 5 mm wide × 2.3 mm deep

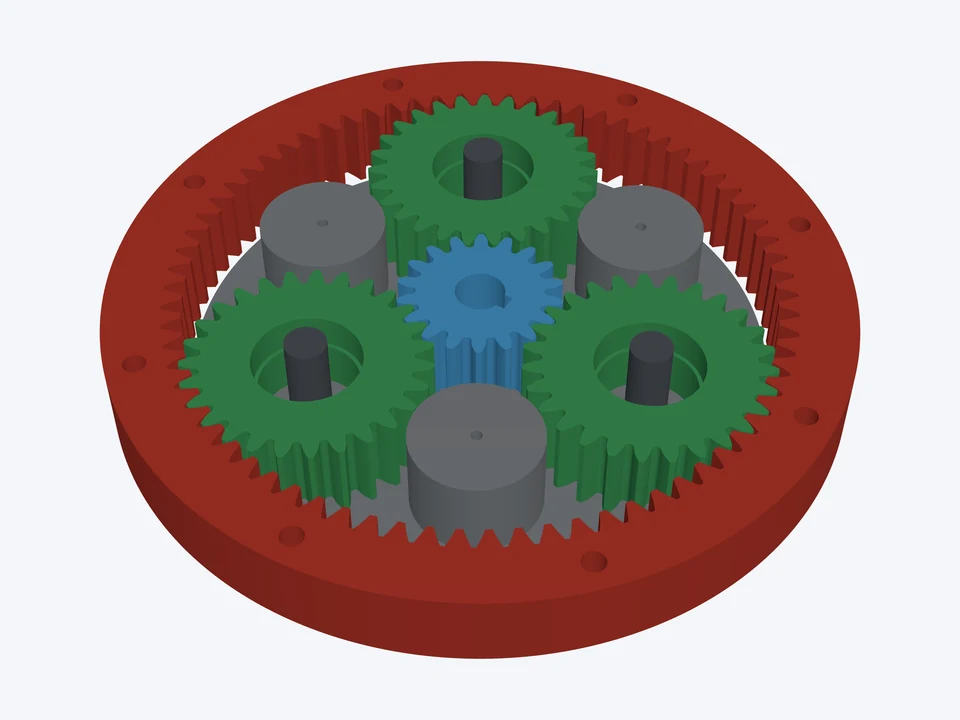

The set · Module 2 · 20° · spur

5 : 1 reduction: the ring is held, the sun is the input and the carrier the output.

Notes

Hardware: 3 × planet pin Ø10 × 31.0 mm; 3 × ball bearing 6000ZZ (NTN), 10 × 26 × 8 mm; 3 × M3 screw, about 11 mm long; 8 × M5 bolt through the ring.

The link opens the whole set in the Planetary Gear Designer's 3D view. Change the teeth, the number of planets or stages, which member is held, the carrier, bores or hubs, then download STL, STEP or the carrier's DXF and SVG.
