5 : 1 · planets on ball bearings

Each planet runs on a 625 ball bearing for long life under load.

Robot joints & actuators5 : 13 planetsRing held

Build it with your AI

Using the CheapCADTools connector, design a 5 : 1 planetary gear set in Planetary Gear Designer: module 1.5 mm, 20° pressure angle, herringbone teeth, an 18-tooth sun, 27-tooth planets and a 72-tooth ring, three planets, a profile shift of 0.2 on the planets, face width 12 mm. The sun: an 8 mm bore. The carrier: each planet on a 625 ball bearing. The carrier's output: an 8 mm bore. Check the design, apply any Auto-fix it suggests, then export every part (the sun, a planet, the ring and the carrier) as STEP and STL and give me the download link.

Paste it into Claude, ChatGPT or any AI app with the CheapCADTools connector, and it designs this planetary set with you, checks it and hands you the files. How to connect your AI.

What's in this design

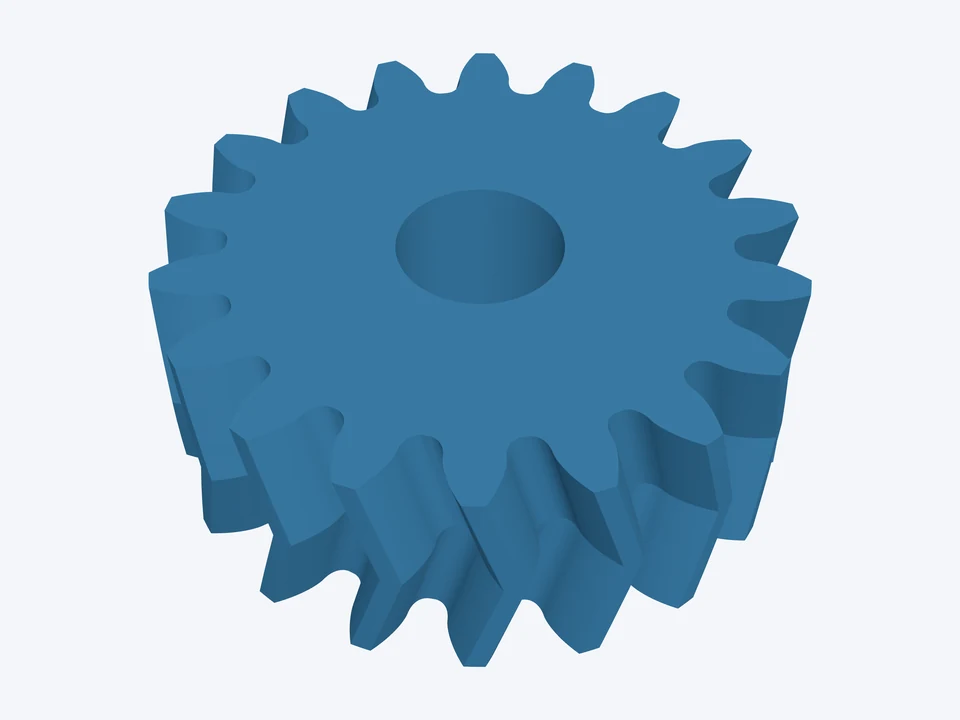

Sun

18 teeth · no shift · tip Ø30.94 mm · face 12 mm · bore Ø8 mm · no hub

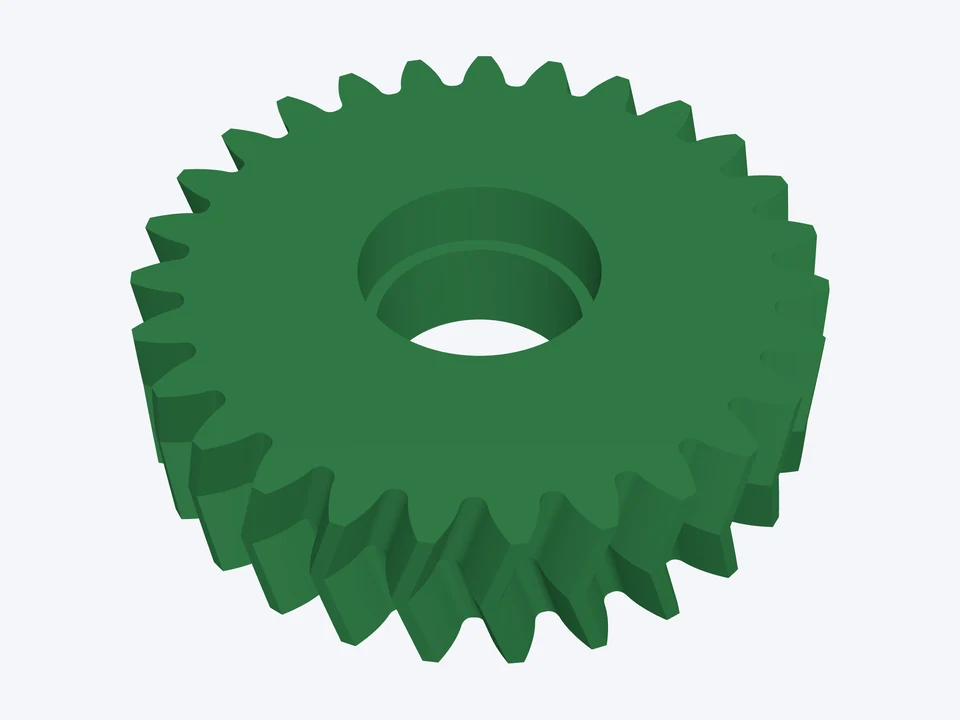

Planets · 3

27 teeth · shift +0.2 · tip Ø45.51 mm · face 12 mm · pocket Ø16 mm for 625ZZ (5 × 16 × 5 mm) bearing · print 3

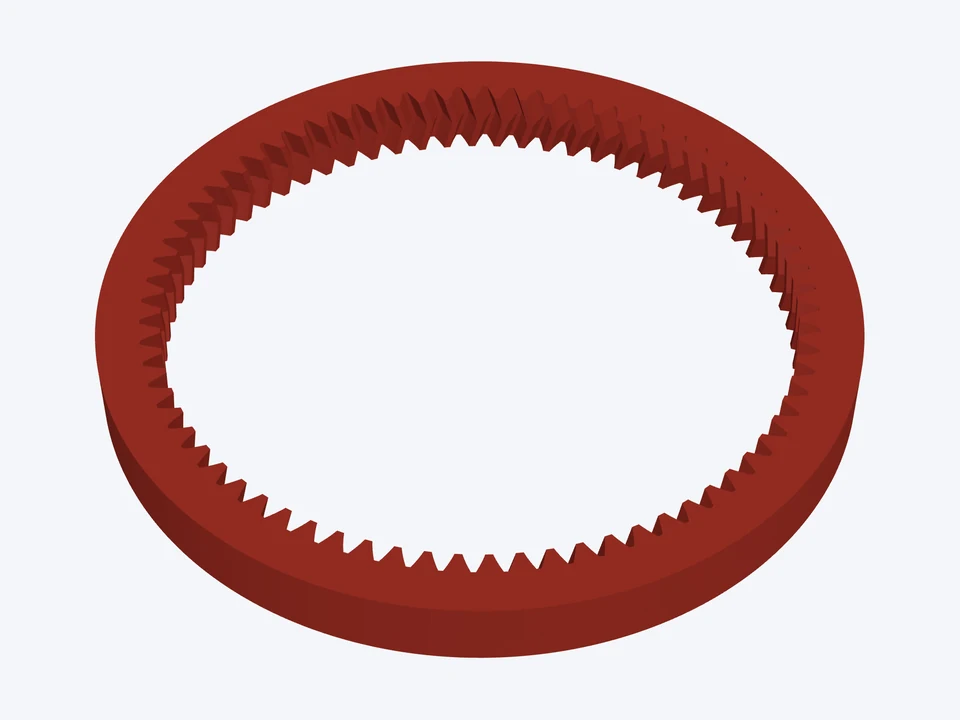

Ring

72 internal teeth · shift −0.4 · outside Ø132.03 mm · rim 7.5 mm below the roots

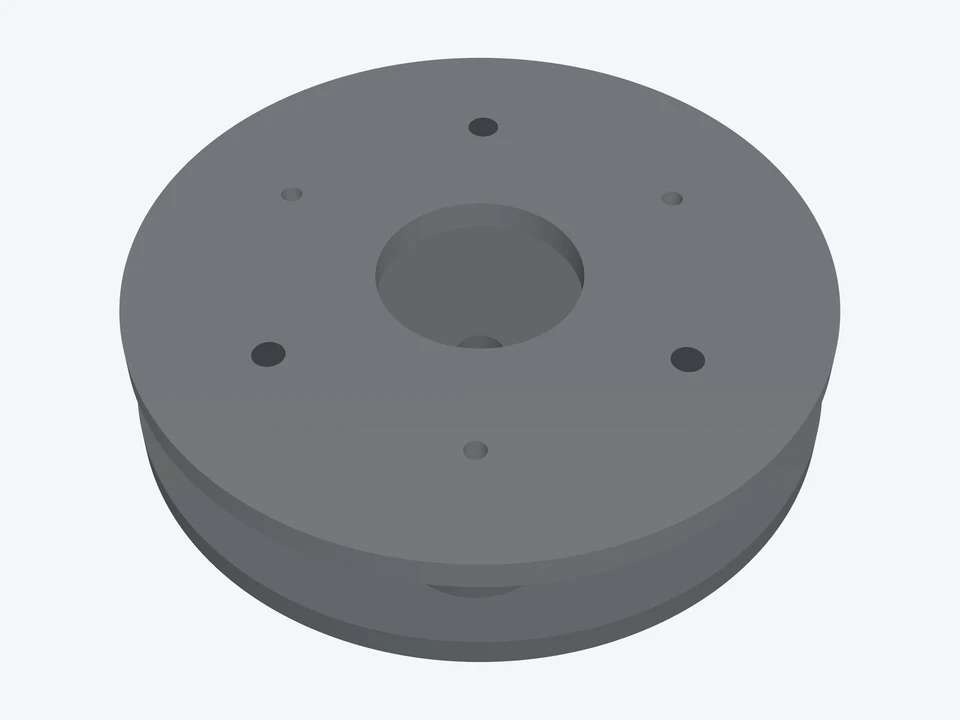

Carrier

straddle (two discs and posts) · disc Ø109.01 × 5 mm · 3 pins Ø5 × 23.0 mm · output bore Ø8 mm

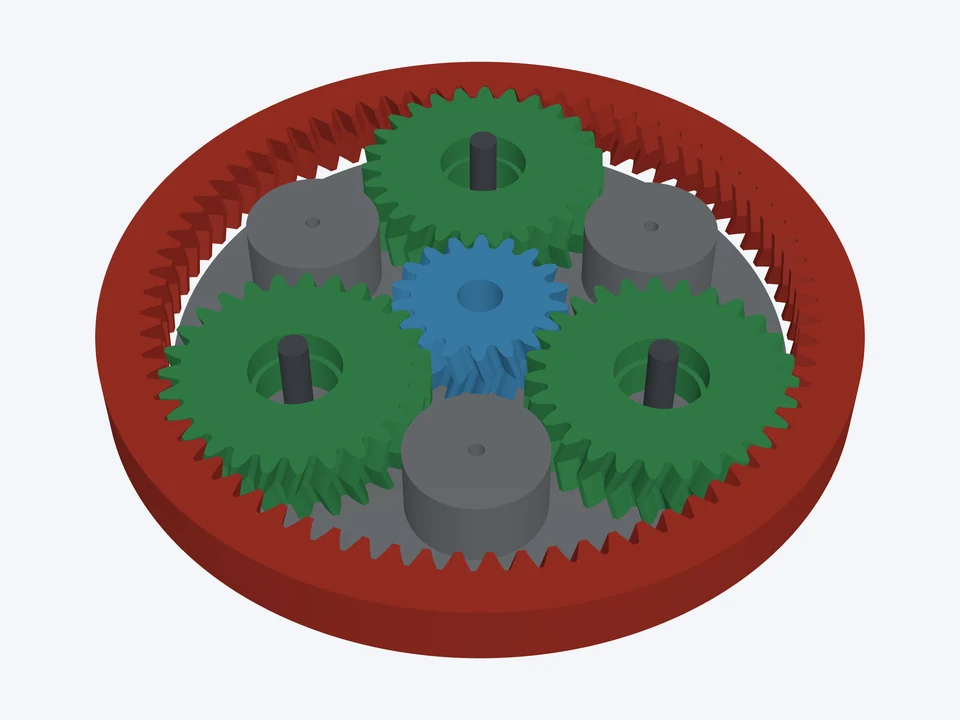

The set · Module 1.5 · 20° · herringbone

5 : 1 reduction: the ring is held, the sun is the input and the carrier the output.

Notes

Hardware: 3 × planet pin Ø5 × 23.0 mm; 3 × ball bearing 625ZZ (NTN), 5 × 16 × 5 mm; 3 × M3 screw, about 11 mm long.
The Strength check rates spur sets only: helical and herringbone sets aren't rated yet.

The link opens the whole set in the Planetary Gear Designer's 3D view. Change the teeth, the number of planets or stages, which member is held, the carrier, bores or hubs, then download STL, STEP or the carrier's DXF and SVG.
