Sample · module 1.5 · 20° · herringbone 30°

16T : 48T · herringbone, 8 mm D-flat

Quiet, thrust-free herringbone gears for a robot joint: 3 : 1 on 8 mm D-flat shafts.

Robotics16 : 48

Build it with your AI

Using the CheapCAD Tools connector, design a two-gear drive in Gear Designer: module 1.5 mm, herringbone, helix angle 30°, face width 12 mm. Gear 1: 16 teeth, an 8 mm bore, D-flat 0.5 mm deep. Gear 2: 48 teeth, an 8 mm bore, D-flat 0.5 mm deep, spokes: 5 of them, Hub OD 20 mm, Width 5 mm, Rim Depth 7 mm, Fillets 3 mm at the rim and 3 mm at the hub. Check the design, apply any Auto-fix it suggests, then export both gears as STL and give me the download link.

Paste it into Claude, ChatGPT or any AI app with the CheapCAD Tools connector, and it designs this gear set with you, checks it and hands you the files. How to connect your AI.

What's in this design

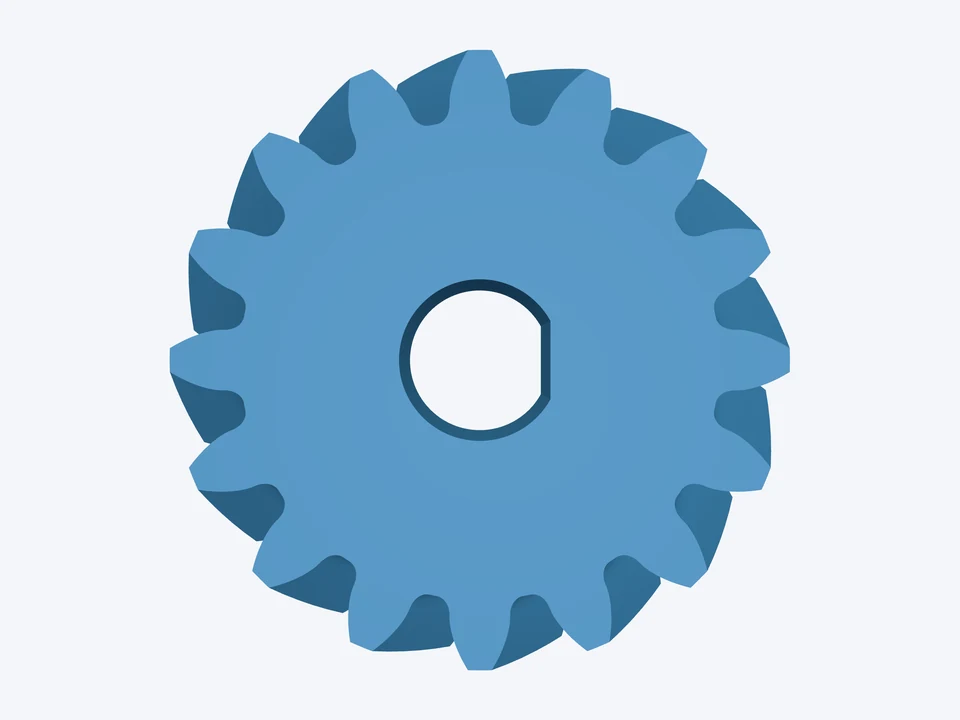

Gear 1 · 16 teeth

16T gear · tip Ø30.7 mm · bore Ø8 mm D-flat

Gear 2 · 48 teeth

48T gear · tip Ø86.1 mm · bore Ø8 mm D-flat · 5 spokes, rim 7

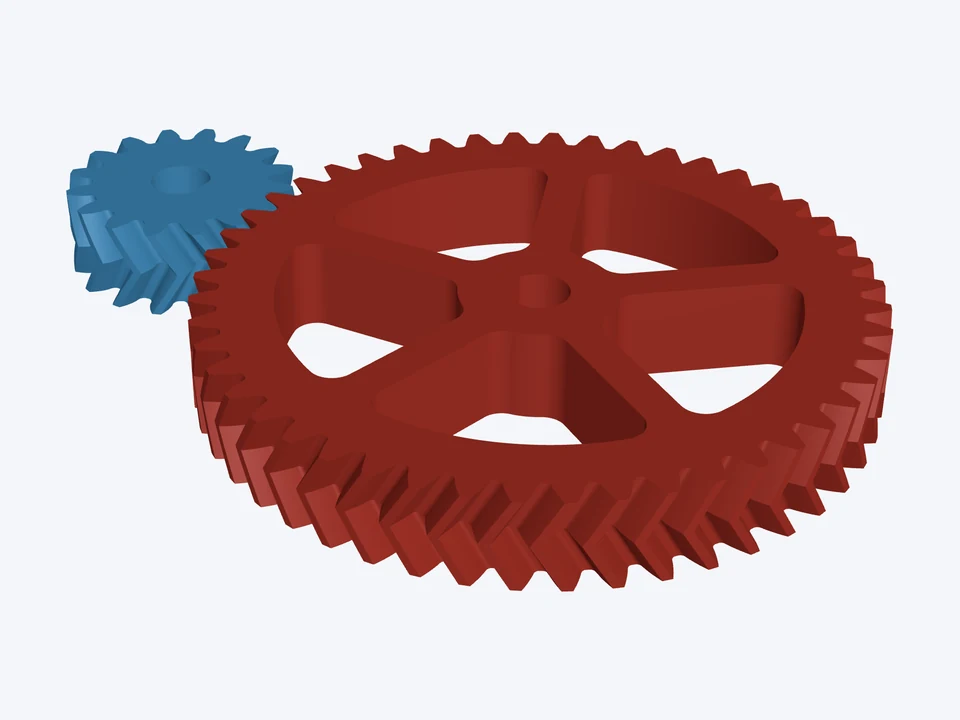

The mesh · module 1.5 · 20° · herringbone 30°

ratio 3 : 1 · centre distance 55.43 mm · contact ratio 1.34 + overlap 1.27 · backlash 0.143–0.27 mm

The link opens both parts in the Gear Designer's 3D Mode. Change the teeth, module or pitch, bore, hub or spokes, then download STL, STEP, DXF or SVG.
