16T : 80T · 5 : 1 extruder

An extruder's 5 : 1 reduction: a 16-tooth pinion, profile-shifted so it isn't undercut.

Printed drives16 : 80

Build it with your AI

Using the CheapCAD Tools connector, design a two-gear drive in Gear Designer: module 1 mm, face width 7 mm. Gear 1: 16 teeth, profile shift x = 0.2, a 5 mm bore, D-flat 0.5 mm deep. Gear 2: 80 teeth, an 8 mm bore, a hub on one face, Hub OD 18 mm, Hub Height 8 mm, 1 M3 set screw with a captured nut. Check the design, apply any Auto-fix it suggests, then export both gears as STL and give me the download link.

Paste it into Claude, ChatGPT or any AI app with the CheapCAD Tools connector, and it designs this gear set with you, checks it and hands you the files. How to connect your AI.

What's in this design

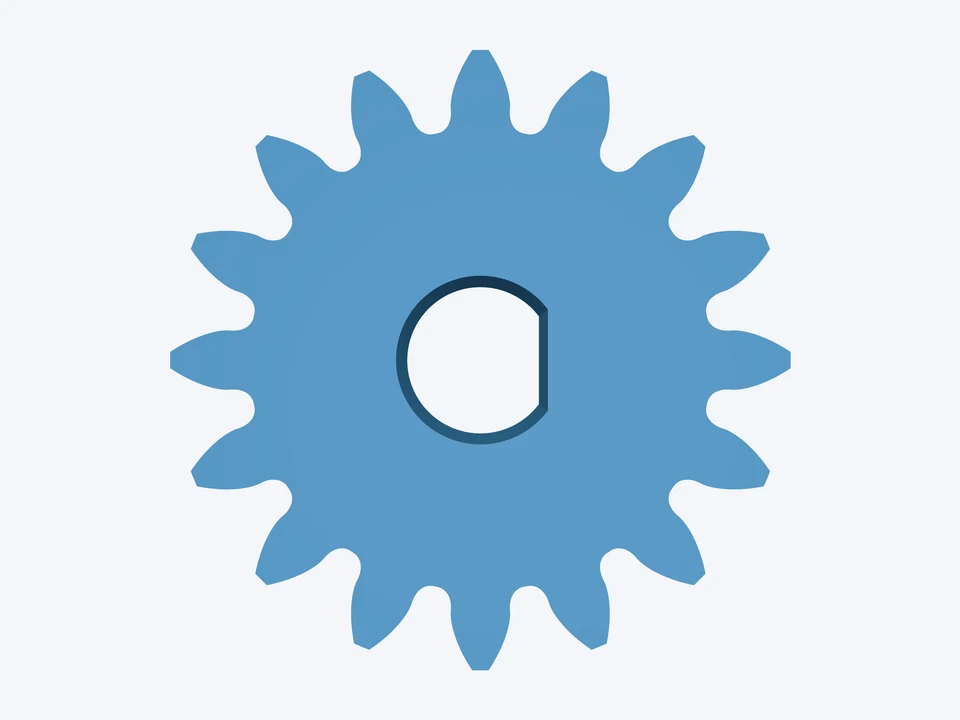

Gear 1 · 16 teeth

16T gear · tip Ø18.4 mm · x = 0.2 · bore Ø5 mm D-flat

Gear 2 · 80 teeth

80T gear · tip Ø82 mm · bore Ø8 mm · hub Ø18, 1 × M3 set screw (captured nut)

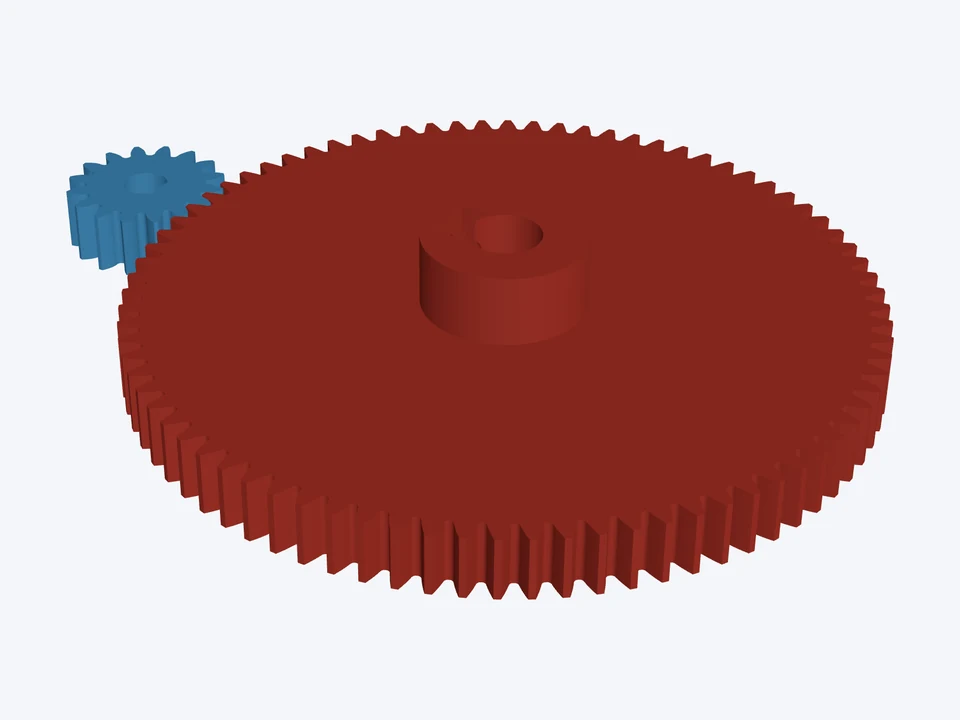

The mesh · module 1 · 20°

ratio 5 : 1 · centre distance 48.2 mm · contact ratio 1.59 · backlash 0.124–0.234 mm

The link opens both parts in the Gear Designer's 3D Mode. Change the teeth, module or pitch, bore, hub or spokes, then download STL, STEP, DXF or SVG.
