Sample · module 1.5 · 20° · helical 15°

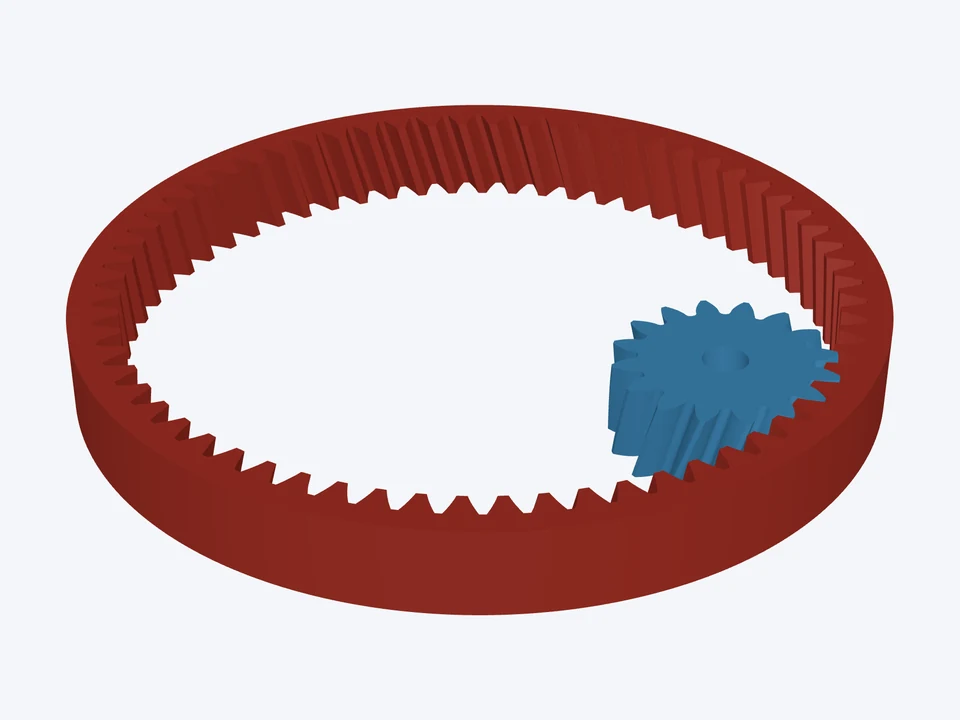

16T in a 64T helical ring

A helical ring gear: the pinion and the ring share one hand.

Rings & racks16 in 64

Build it with your AI

Using the CheapCAD Tools connector, design a pinion and ring gear drive in Gear Designer: module 1.5 mm, helical, helix angle 15°, face width 12 mm. Gear 1: 16 teeth, profile shift x = 0.43, a 6 mm bore. Gear 2: 64 teeth, an internal (ring) gear, rim outside diameter 110 mm. Check the design, apply any Auto-fix it suggests, then export both gears as STL and give me the download link.

Paste it into Claude, ChatGPT or any AI app with the CheapCAD Tools connector, and it designs this gear set with you, checks it and hands you the files. How to connect your AI.

What's in this design

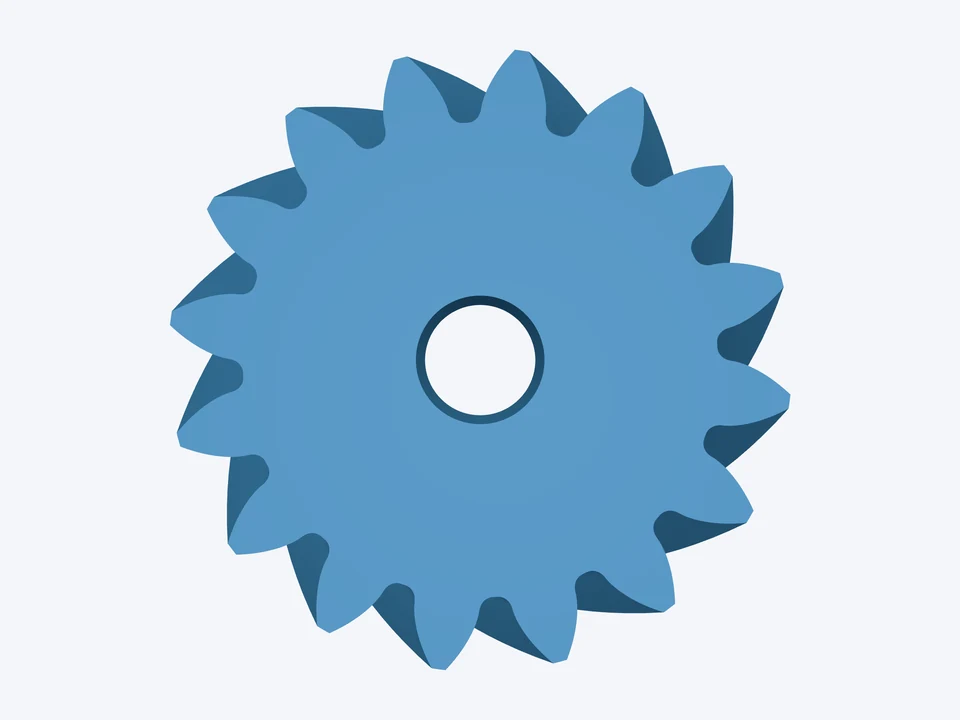

Gear 1 · 16 teeth

16T gear · tip Ø29.1 mm · x = 0.43 · bore Ø6 mm

Ring gear · 64 teeth

64T ring gear · rim Ø110 mm

The mesh · module 1.5 · 20° · helical 15°

ratio 4 : 1 · centre distance 36.58 mm · contact ratio 1.57 + overlap 0.66 · backlash 0.128–0.242 mm

The link opens both parts in the Gear Designer's 3D Mode. Change the teeth, module or pitch, bore, hub or spokes, then download STL, STEP, DXF or SVG.
