Sample · module 1.5 · 20°

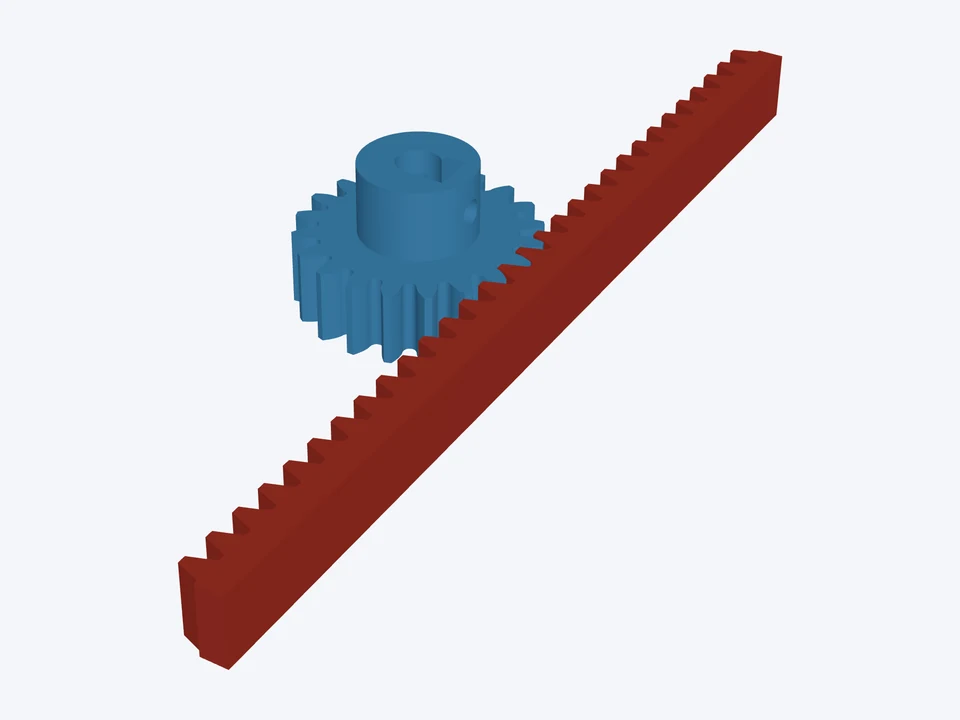

20T pinion and rack · module 1.5

A linear drive: a module 1.5 rack, 94 mm of travel per pinion turn.

Rings & racks20 + rack

Build it with your AI

Using the CheapCAD Tools connector, design a rack and pinion in Gear Designer: module 1.5 mm, face width 10 mm. Gear 1: 20 teeth, a 6 mm bore, D-flat 0.5 mm deep, a hub on one face, Hub OD 16 mm, Hub Height 10 mm, 1 M3 set screw with a captured nut. Gear 2: 30 teeth, a rack. Check the design, apply any Auto-fix it suggests, then export both gears as STL and give me the download link.

Paste it into Claude, ChatGPT or any AI app with the CheapCAD Tools connector, and it designs this gear set with you, checks it and hands you the files. How to connect your AI.

What's in this design

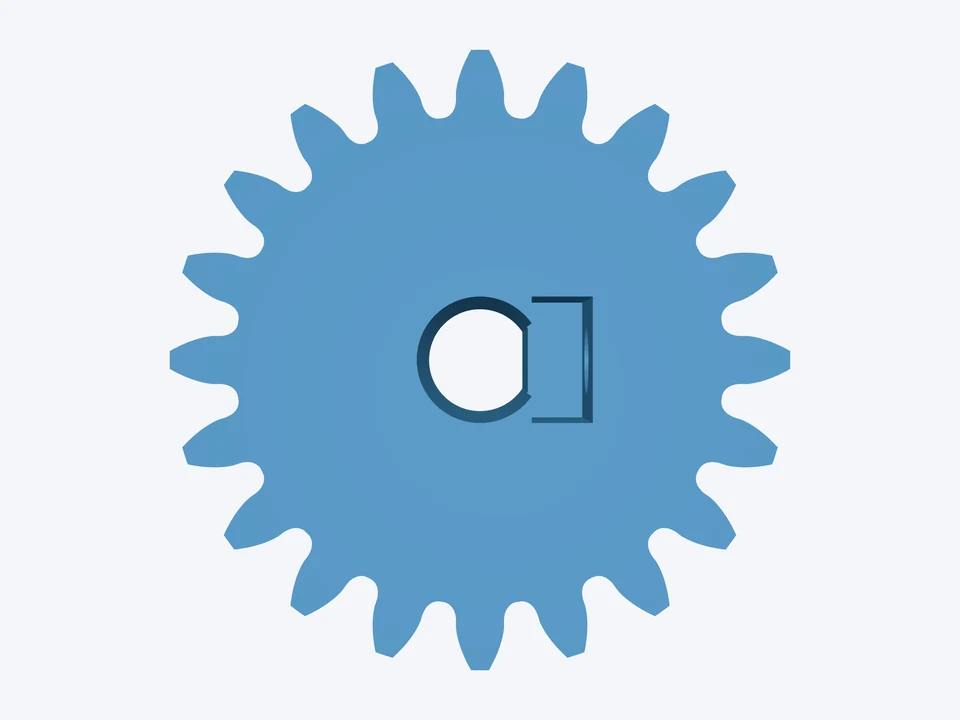

Gear 1 · 20 teeth

20T gear · tip Ø33 mm · bore Ø6 mm D-flat · hub Ø16, 1 × M3 set screw (captured nut)

Rack · 30 teeth

30-tooth rack

The mesh · module 1.5 · 20°

94.2 mm of rack travel per pinion turn · contact ratio 1.77 · backlash 0.108–0.208 mm

The link opens both parts in the Gear Designer's 3D Mode. Change the teeth, module or pitch, bore, hub or spokes, then download STL, STEP, DXF or SVG.
