Sample · m 2.2 · 20° · hypoid, pinion left hand

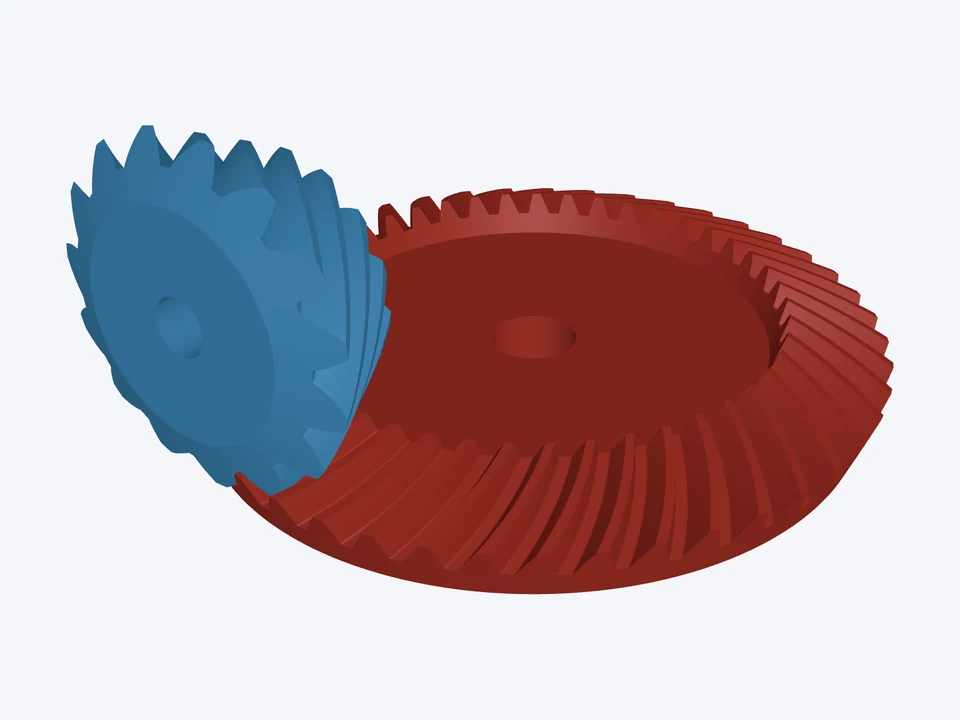

Hypoid · offset pinion
The pinion moved off the gear's axis: a bigger, stronger pinion, as in car axles.
What's in this design

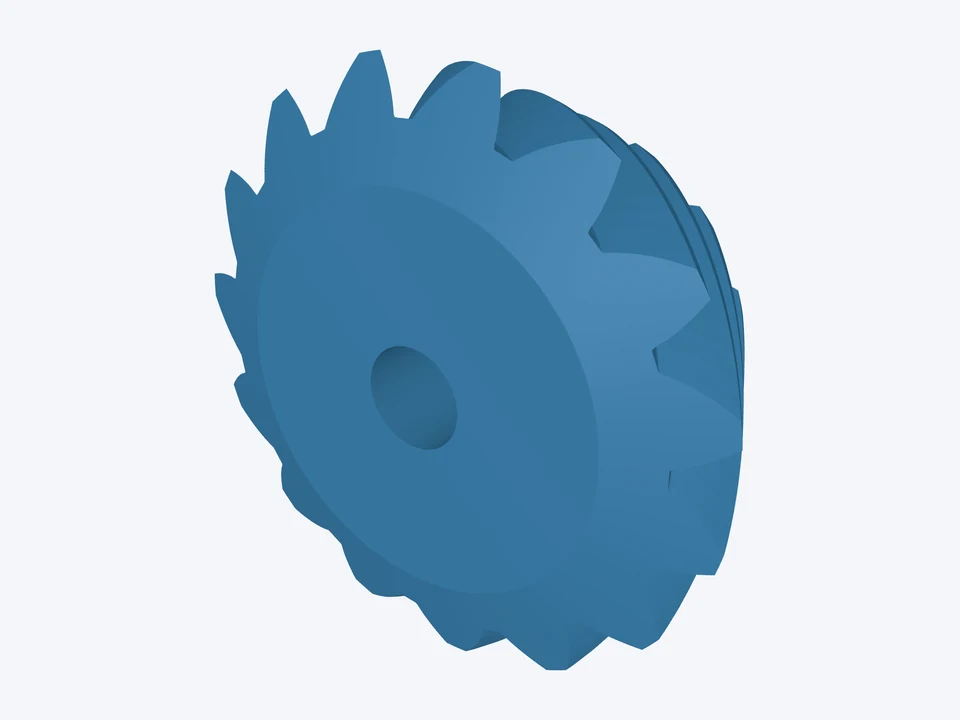

Pinion · 15 teeth
- 15 teeth · outside Ø48.24, pitch Ø42.48 mm at the heel · pitch angle 22.13° · face 17.6 mm · mounting distance 54.5 mm · bore Ø8 mm · no hub
Gear · 45 teeth
- 45 teeth · outside Ø99.81, pitch Ø99 mm at the heel · pitch angle 66.75° · face 15.5 mm · mounting distance 28.61 mm · bore Ø12 mm · no hub
The mesh · m 2.2 · 20° · hypoid, pinion left hand
- ratio 3 : 1 · shaft angle 90° · hypoid offset 14.9 mm · hypoid teeth
Notes
- STL and drawings now; STEP of spiral and hypoid pairs follows
The link opens the pinion and gear in the Bevel Gear Designer's 3D view. Change the teeth, the module or pitch, the shaft angle, the bores or hubs, then download STL or a drawing.
