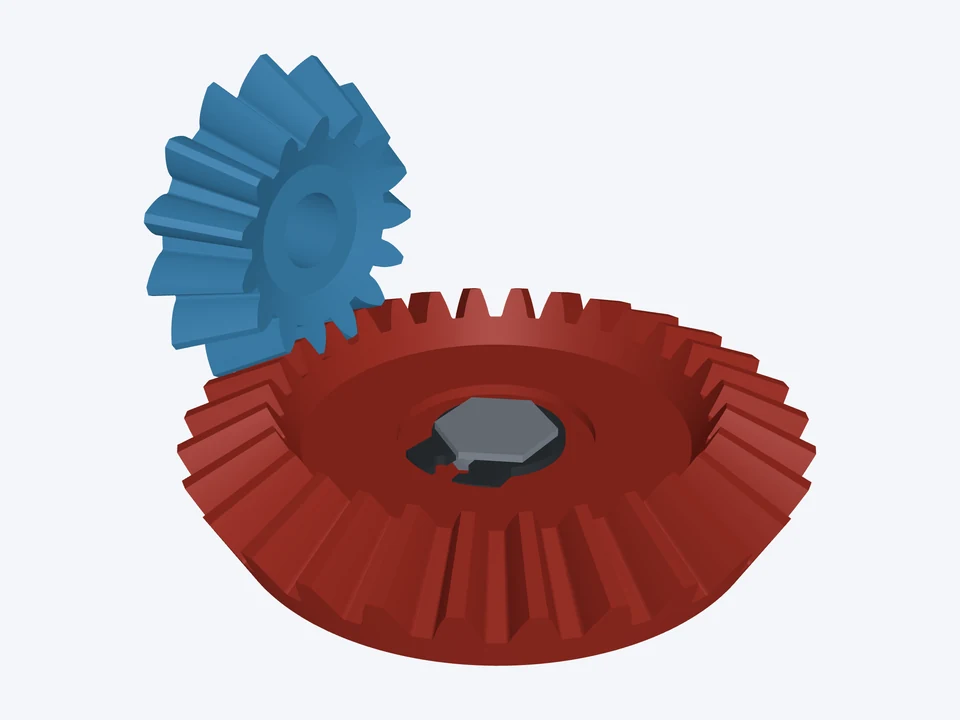

Rotisserie · 2 : 1 on 8 mm hex
A 2 : 1 corner drive for a spit or turntable, the gear on an 8 mm hex bar.
What's in this design

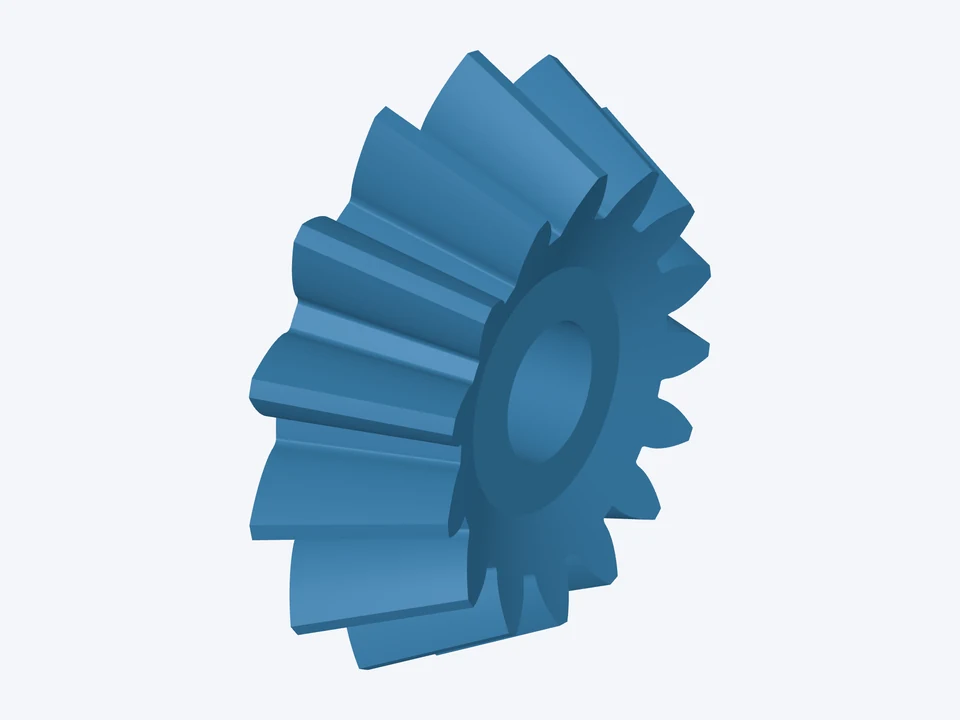

Pinion · 15 teeth
- 15 teeth · outside Ø26.44, pitch Ø22.5 mm at the heel · pitch angle 26.57° · face 7 mm · mounting distance 24.58 mm · bore Ø6 mm · no hub
Gear · 30 teeth
- 30 teeth · outside Ø45.8, pitch Ø45 mm at the heel · pitch angle 63.43° · face 7 mm · mounting distance 16.58 mm · 8 mm hex bar, retaining ring on the top end · no hub
The mesh · m 1.5 · 20° · straight, AGMA 2005 proportions
- ratio 2 : 1 · shaft angle 90° · straight teeth
The link opens the pinion and gear in the Bevel Gear Designer's 3D view. Change the teeth, the module or pitch, the shaft angle, the bores or hubs, then download STL, STEP or a drawing.
