Sample · m 1.5 · 20° · straight, AGMA 2005 proportions

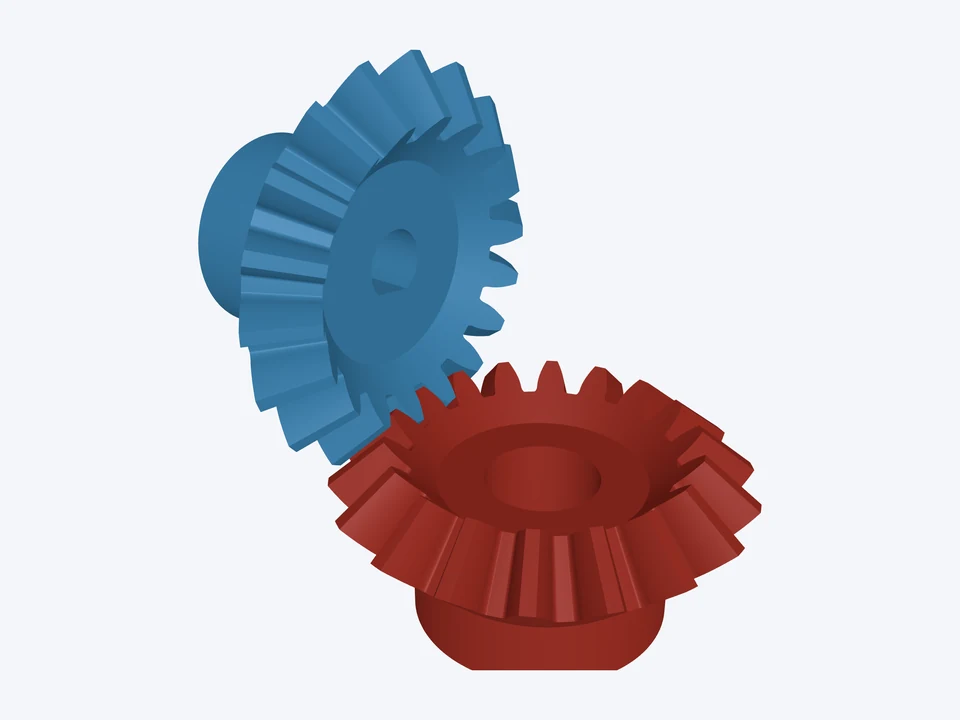

NEMA 17 right-angle drive
Turn a stepper's output 90°: 18-tooth miters, 5 mm D-flat in, 8 mm out, tapped set screws.
What's in this design

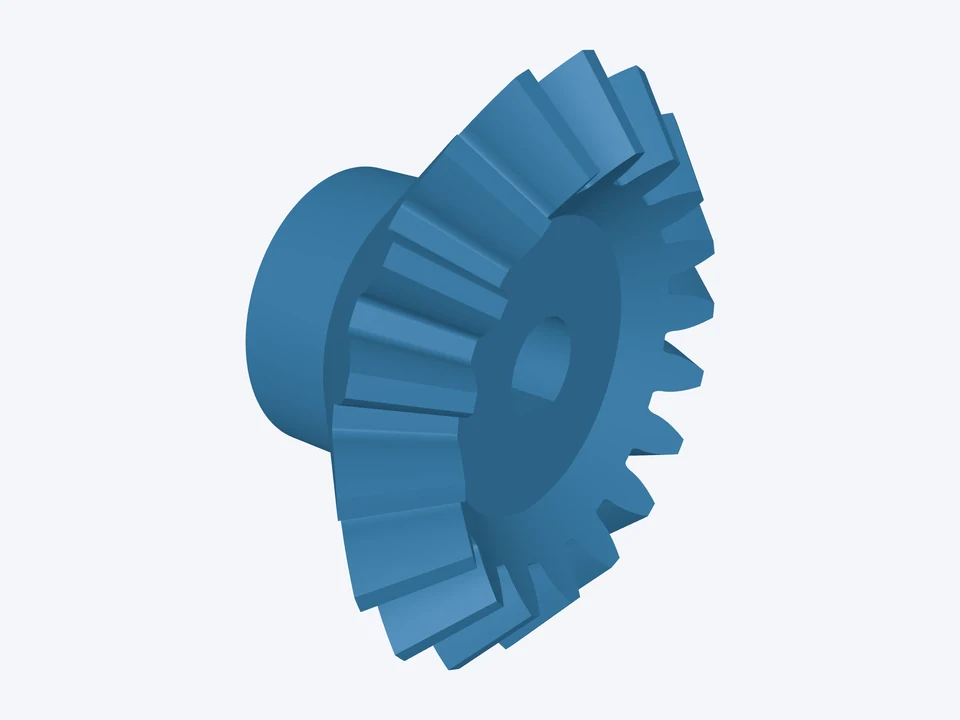

Pinion · 18 teeth
- 18 teeth · outside Ø29.19, pitch Ø27 mm at the heel · pitch angle 45° · face 5 mm · mounting distance 24.65 mm · bore Ø5 mm D-flat · back hub Ø14.5 × 7.4 mm, 1 × M3 set screw (tapped)
Gear · 18 teeth
- 18 teeth · outside Ø29.19, pitch Ø27 mm at the heel · pitch angle 45° · face 5 mm · mounting distance 22.85 mm · bore Ø8 mm · back hub Ø18 × 5.6 mm, 2 × M3 set screws (tapped)
The mesh · m 1.5 · 20° · straight, AGMA 2005 proportions
- ratio 1 : 1 · shaft angle 90° · straight teeth
The link opens the pinion and gear in the Bevel Gear Designer's 3D view. Change the teeth, the module or pitch, the shaft angle, the bores or hubs, then download STL, STEP or a drawing.
