Sample · m 2 · 20° · straight, AGMA 2005 proportions

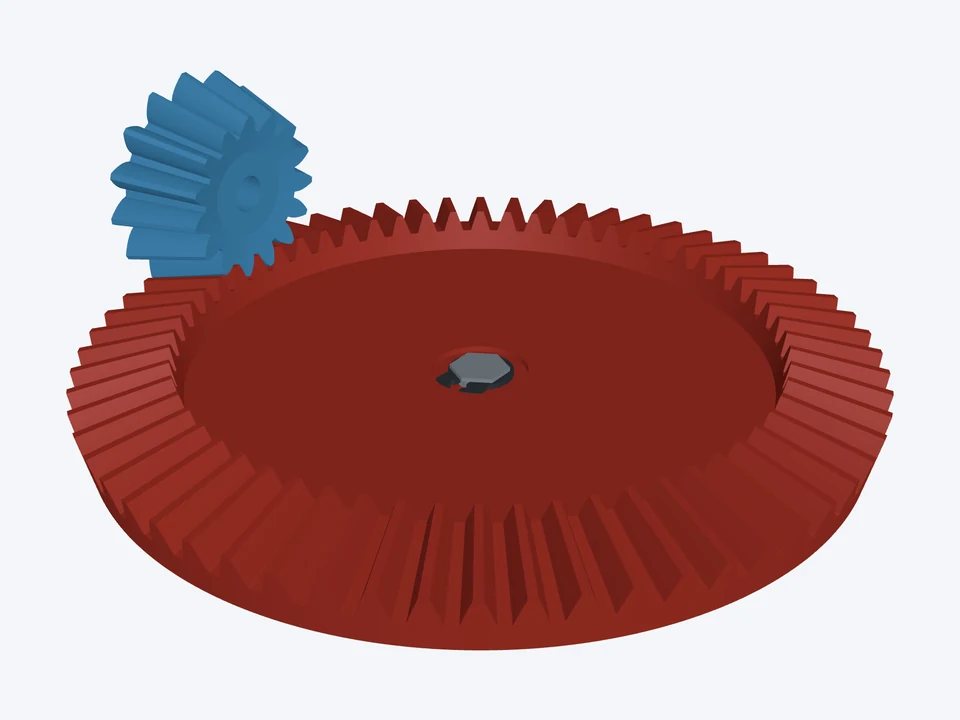

Hand drill · 4 : 1, module 2
The egg-beater drill's drive: a big crank gear spins a 15-tooth pinion four times as fast.
What's in this design

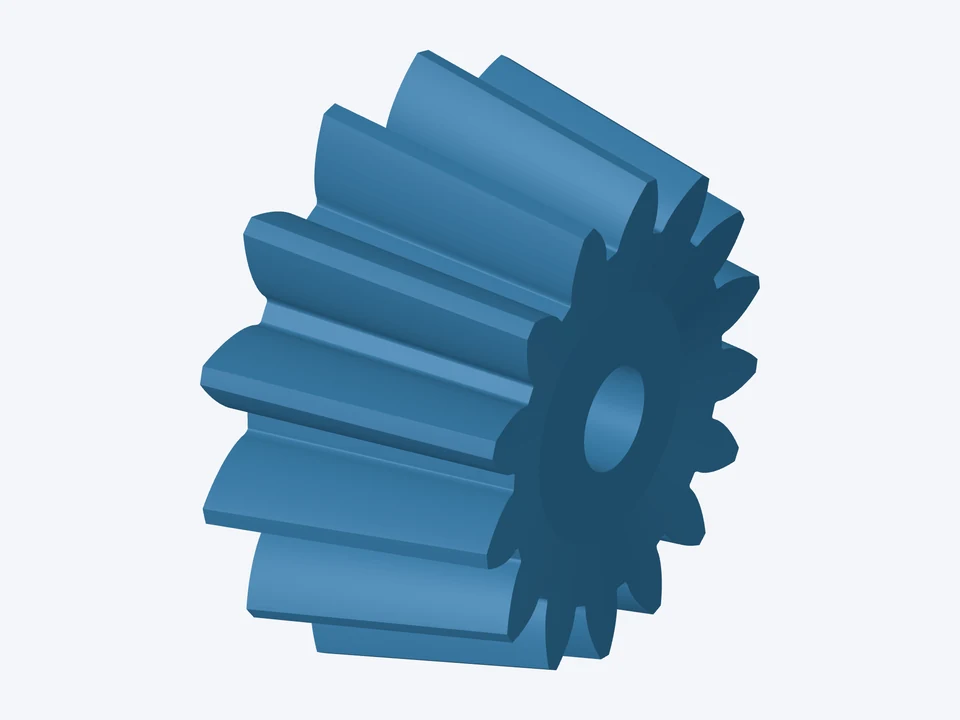

Pinion · 15 teeth
- 15 teeth · outside Ø36.12, pitch Ø30 mm at the heel · pitch angle 14.04° · face 17 mm · mounting distance 61.45 mm · bore Ø6 mm · no hub
Gear · 60 teeth
- 60 teeth · outside Ø120.48, pitch Ø120 mm at the heel · pitch angle 75.96° · face 17 mm · mounting distance 22.91 mm · 8 mm hex bar, retaining ring on the top end · no hub
The mesh · m 2 · 20° · straight, AGMA 2005 proportions
- ratio 4 : 1 · shaft angle 90° · straight teeth
The link opens the pinion and gear in the Bevel Gear Designer's 3D view. Change the teeth, the module or pitch, the shaft angle, the bores or hubs, then download STL, STEP or a drawing.
