Sample · m 0.8 · 20° · straight, AGMA 2005 proportions
Small robot · 2 : 1, 3 mm D-flat
A tiny module 0.8 pair for N20-size gear motors on 3 mm D-flat shafts.
What's in this design

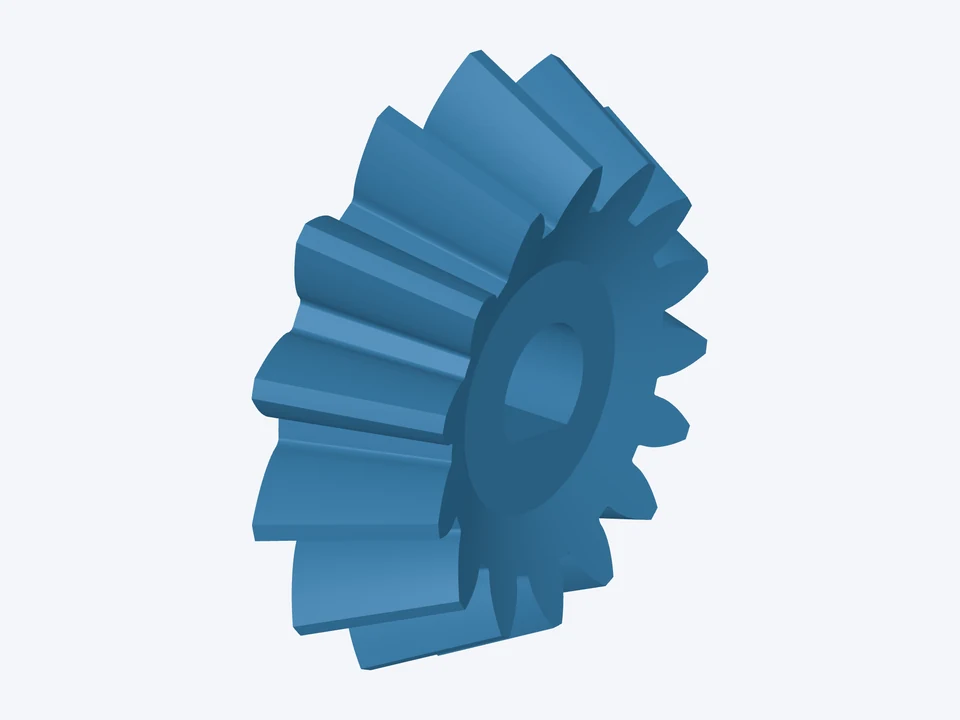

Pinion · 15 teeth
- 15 teeth · outside Ø14.1, pitch Ø12 mm at the heel · pitch angle 26.57° · face 3.5 mm · mounting distance 13.11 mm · bore Ø3 mm D-flat · no hub
Gear · 30 teeth
- 30 teeth · outside Ø24.43, pitch Ø24 mm at the heel · pitch angle 63.43° · face 3.5 mm · mounting distance 8.84 mm · bore Ø4 mm · no hub

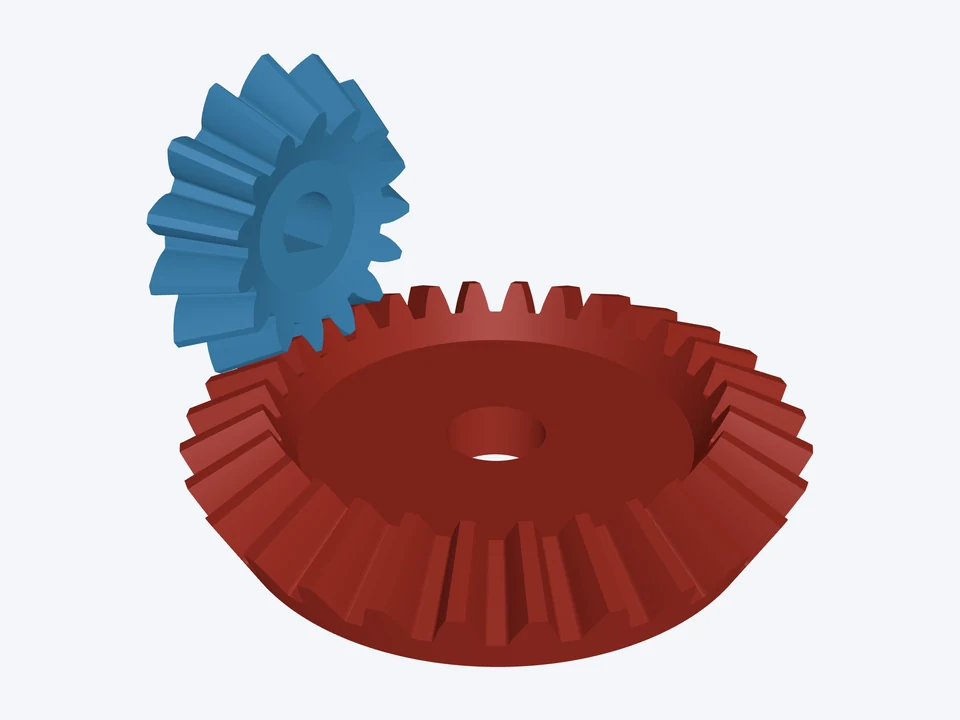

The mesh · m 0.8 · 20° · straight, AGMA 2005 proportions
- ratio 2 : 1 · shaft angle 90° · straight teeth
The link opens the pinion and gear in the Bevel Gear Designer's 3D view. Change the teeth, the module or pitch, the shaft angle, the bores or hubs, then download STL, STEP or a drawing.
