Sample · m 1 · 20° · straight, AGMA 2005 proportions

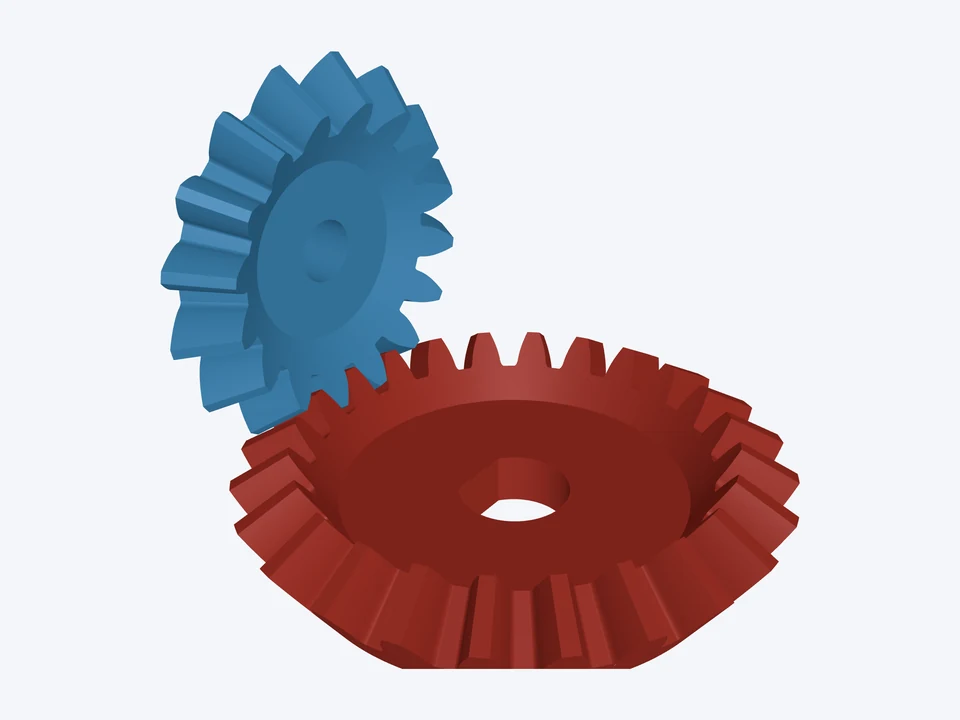

RC differential · spider and side gear
The pair inside an open differential: a 16-tooth spider gear on a 24-tooth side gear.
What's in this design

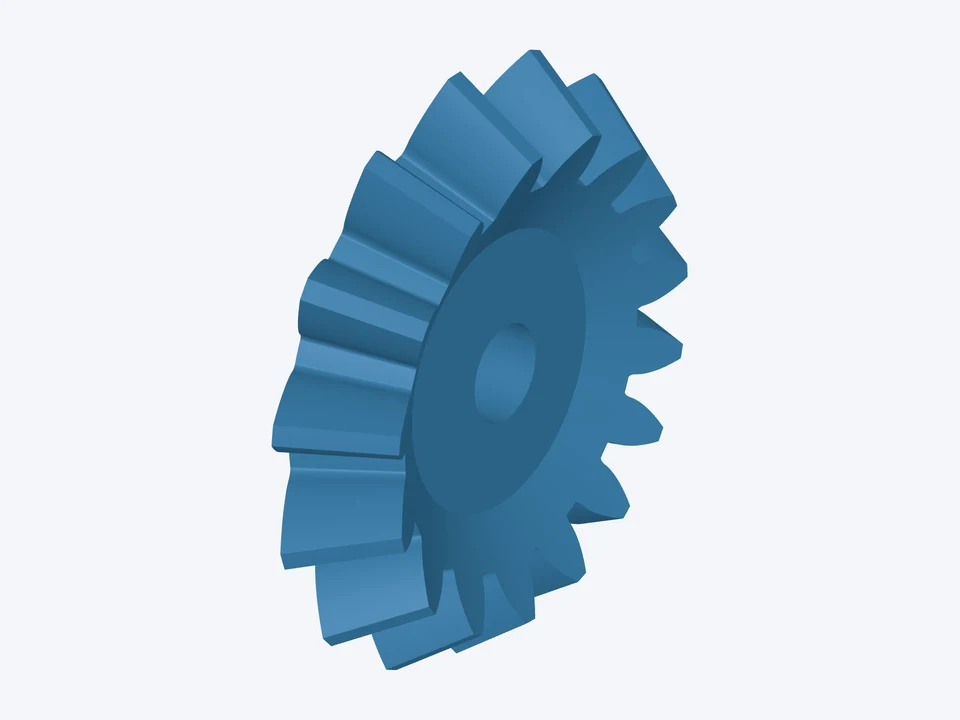

Pinion · 16 teeth
- 16 teeth · outside Ø18.26, pitch Ø16 mm at the heel · pitch angle 33.69° · face 4 mm · mounting distance 13.78 mm · bore Ø3 mm · no hub
Gear · 24 teeth
- 24 teeth · outside Ø24.79, pitch Ø24 mm at the heel · pitch angle 56.31° · face 4 mm · mounting distance 11.21 mm · bore Ø5 mm D-flat · no hub
The mesh · m 1 · 20° · straight, AGMA 2005 proportions
- ratio 1.5 : 1 · shaft angle 90° · straight teeth
The link opens the pinion and gear in the Bevel Gear Designer's 3D view. Change the teeth, the module or pitch, the shaft angle, the bores or hubs, then download STL, STEP or a drawing.
