16 : 24
RC differential · spider and side gear
m 1 · 20° · straight, AGMA 2005 proportions
The pair inside an open differential: a 16-tooth spider gear on a 24-tooth side gear.
Sample · m 1.5 · 20° · straight, AGMA 2005 proportions
RC axle · 16 : 47 ring and pinion
A straight-cut ring and pinion for a 1/10 crawler axle, about 2.9 : 1.
What's in this design

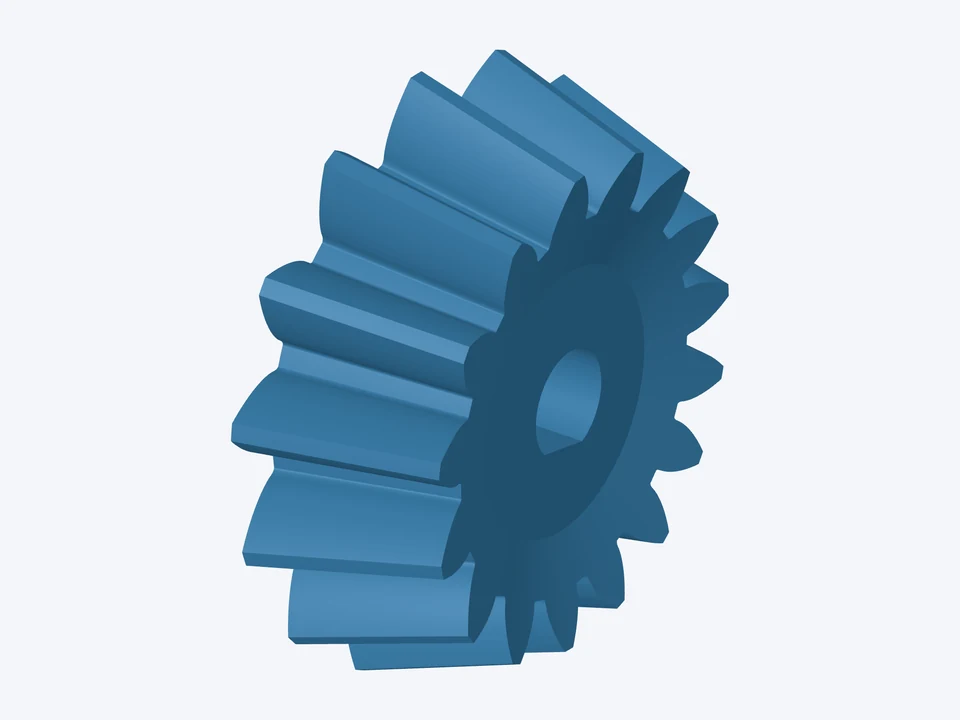

Pinion · 16 teeth
- 16 teeth · outside Ø28.39, pitch Ø24 mm at the heel · pitch angle 18.8° · face 10 mm · mounting distance 36.71 mm · bore Ø5 mm D-flat · no hub
Gear · 47 teeth
- 47 teeth · outside Ø71, pitch Ø70.5 mm at the heel · pitch angle 71.2° · face 10 mm · mounting distance 17.75 mm · bore Ø10 mm · no hub

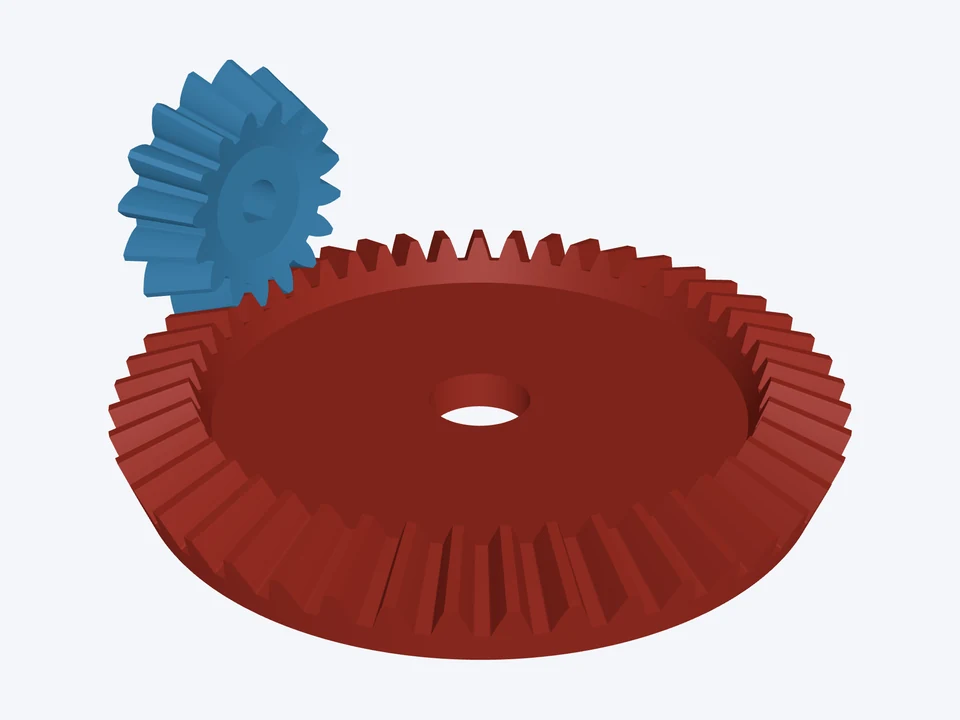

The mesh · m 1.5 · 20° · straight, AGMA 2005 proportions
- ratio 2.938 : 1 · shaft angle 90° · straight teeth
The link opens the pinion and gear in the Bevel Gear Designer's 3D view. Change the teeth, the module or pitch, the shaft angle, the bores or hubs, then download STL, STEP or a drawing.
More samples
Related bevel pairs
20 : 40
2 : 1 · module 4, splined gear
m 4 · 20° · straight, Gleason proportions
A heavy 2 : 1: keyed pinion, ISO 14 6 × 23 × 26 spline in the gear.
15 : 45
Straight bevel · AGMA 2005
m 2.2 · 20° · straight, AGMA 2005 proportions
The 15 : 45 pair (module 2.2, 3 : 1) with AGMA 2005's mid-face proportions.
15 : 45
Straight bevel · Gleason
m 2.2 · 20° · straight, Gleason proportions
The same pair in Gleason's heel-based proportions, the ones catalogue gears use.
