Sample · 24 DP · 20° · straight, AGMA 2005 proportions

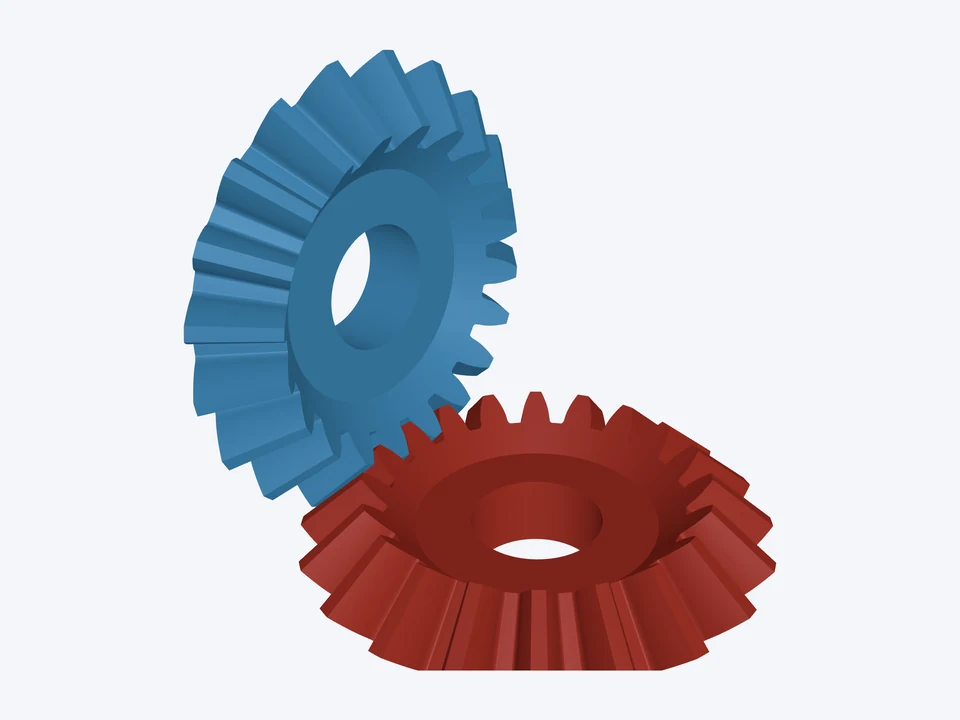

Miter pair · 24 DP, ¼" bores
Small inch miters: 24 DP, 20 teeth, ¼" bores.
What's in this design

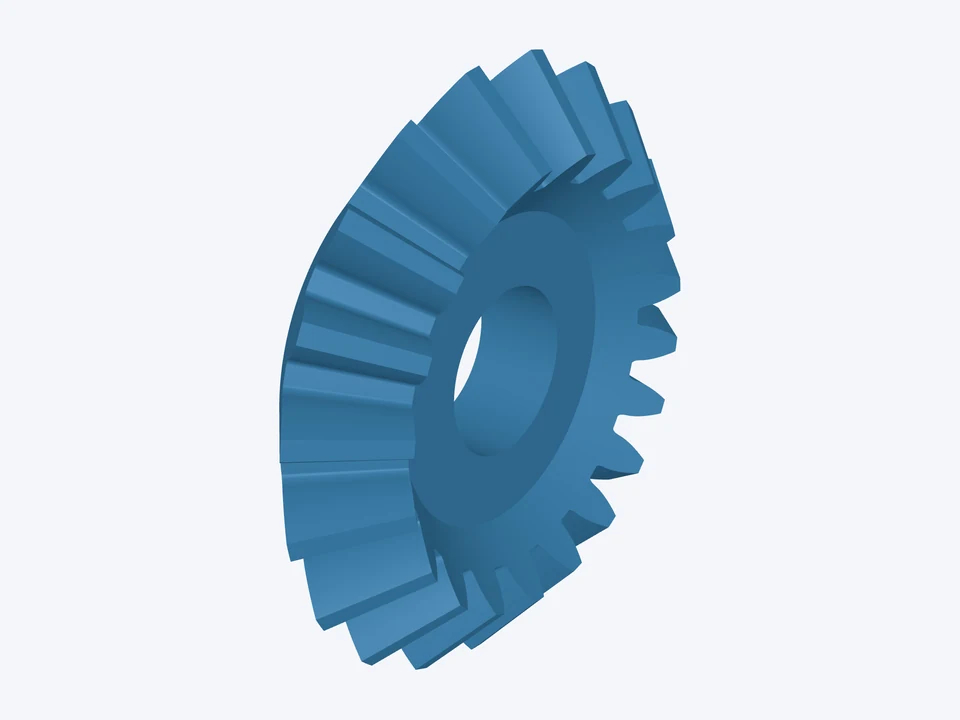

Pinion · 20 teeth
- 20 teeth · outside Ø22.71, pitch Ø21.17 mm at the heel · pitch angle 45° · face 4 mm · mounting distance 13.23 mm · bore ؼ" · no hub
Gear · 20 teeth
- 20 teeth · outside Ø22.71, pitch Ø21.17 mm at the heel · pitch angle 45° · face 4 mm · mounting distance 13.23 mm · bore ؼ" · no hub
The mesh · 24 DP · 20° · straight, AGMA 2005 proportions
- ratio 1 : 1 · shaft angle 90° · straight teeth
The link opens the pinion and gear in the Bevel Gear Designer's 3D view. Change the teeth, the module or pitch, the shaft angle, the bores or hubs, then download STL, STEP or a drawing.
