Miter pair · 24 DP, ¼" bores
24 DP · 20° · straight, AGMA 2005 proportions
Small inch miters: 24 DP, 20 teeth, ¼" bores.
Sample · 10 DP · 20° · straight, AGMA 2005 proportions
2 : 1 · 10 DP, keyed
An inch pair: 10 DP, ½" keyed pinion, ¾" keyed gear.
What's in this design

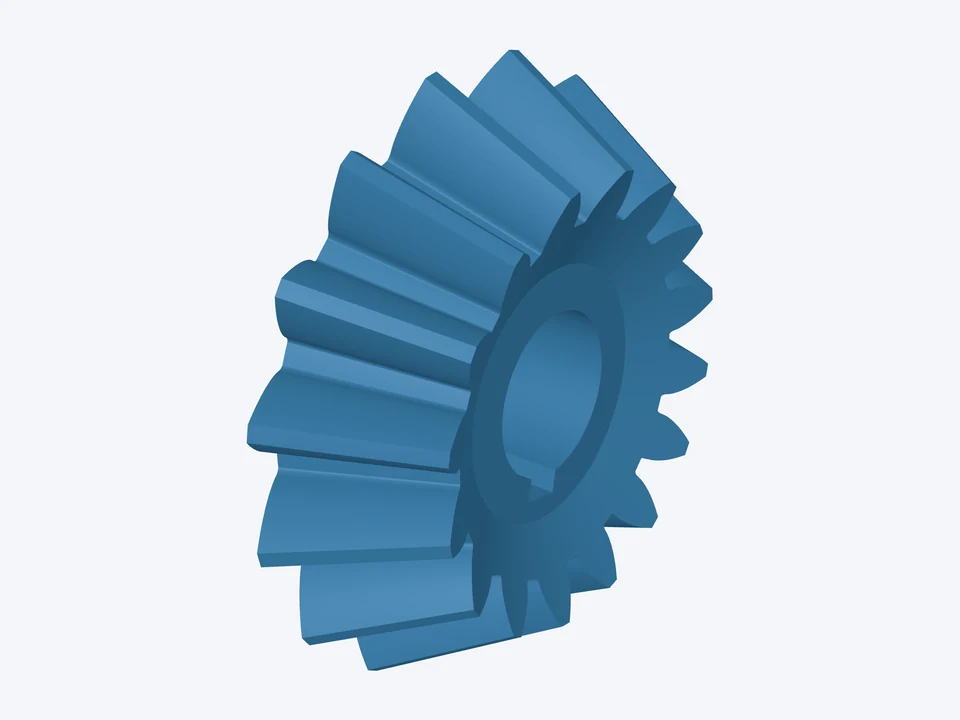

Pinion · 16 teeth
- 16 teeth · outside Ø47.32, pitch Ø40.64 mm at the heel · pitch angle 26.57° · face 12.5 mm · mounting distance 44.16 mm · bore ؽ", keyway ⅛" wide · no hub
Gear · 32 teeth
- 32 teeth · outside Ø82.64, pitch Ø81.28 mm at the heel · pitch angle 63.43° · face 12.5 mm · mounting distance 29.34 mm · bore ؾ", keyway 4.76 mm wide · no hub
The mesh · 10 DP · 20° · straight, AGMA 2005 proportions
- ratio 2 : 1 · shaft angle 90° · straight teeth

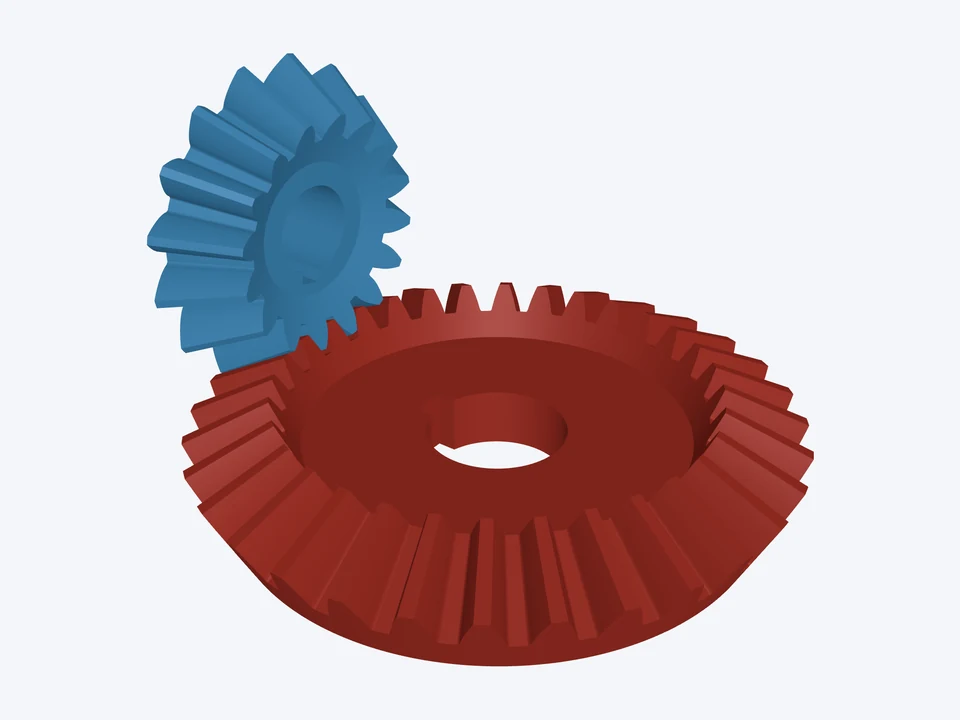

The link opens the pinion and gear in the Bevel Gear Designer's 3D view. Change the teeth, the module or pitch, the shaft angle, the bores or hubs, then download STL, STEP or a drawing.
More samples
Related bevel pairs
15 : 45
Straight bevel · AGMA 2005
m 2.2 · 20° · straight, AGMA 2005 proportions
The 15 : 45 pair (module 2.2, 3 : 1) with AGMA 2005's mid-face proportions.
15 : 45
Straight bevel · Gleason
m 2.2 · 20° · straight, Gleason proportions
The same pair in Gleason's heel-based proportions, the ones catalogue gears use.
15 : 45
Spiral bevel · 35°
m 2.2 · 20° · spiral 35°, pinion left hand
Curved teeth at a 35° spiral angle: more teeth in contact, smoother and quieter.
