Sample · m 1 · 20° · straight, AGMA 2005 proportions

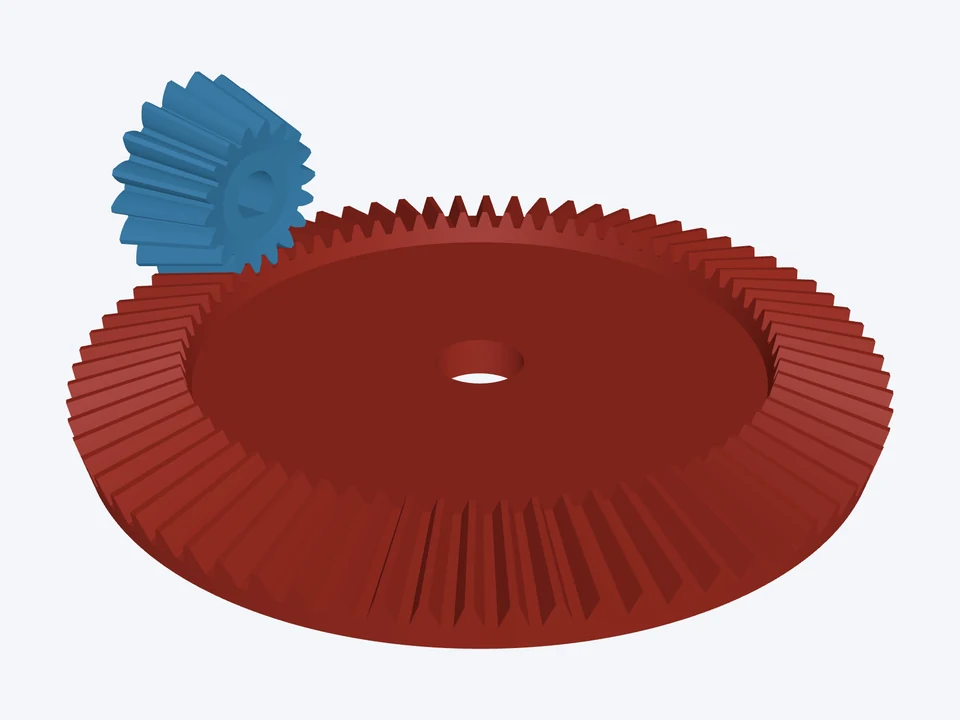

Camera pan head · 4 : 1
A 4 : 1 right-angle drive for a motorised pan head or turntable.
What's in this design

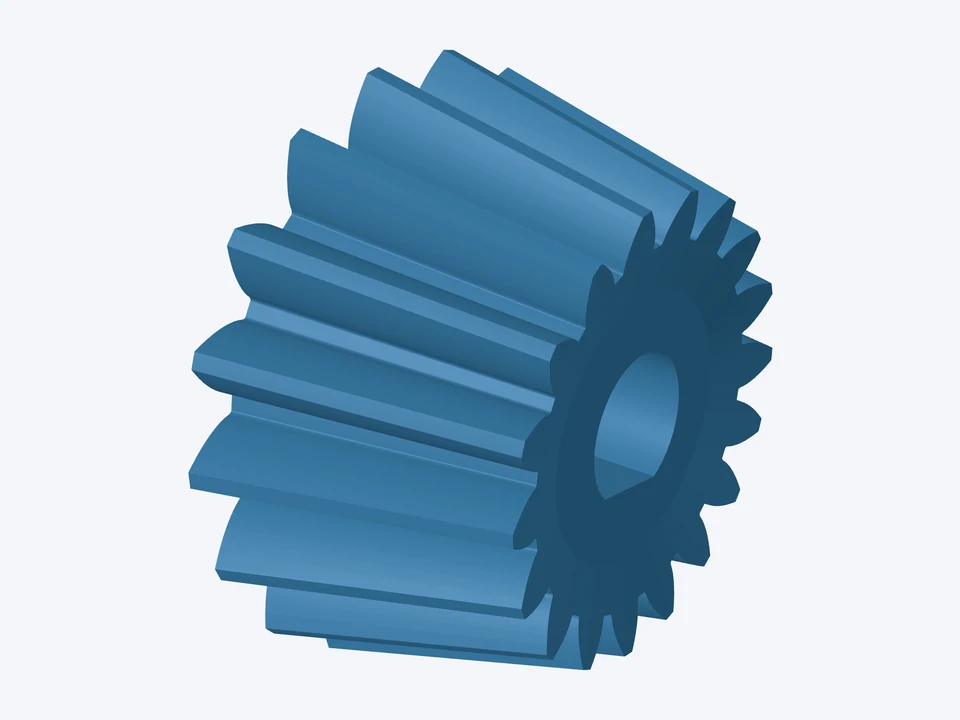

Pinion · 18 teeth
- 18 teeth · outside Ø21.06, pitch Ø18 mm at the heel · pitch angle 14.04° · face 10 mm · mounting distance 36.73 mm · bore Ø5 mm D-flat · no hub
Gear · 72 teeth
- 72 teeth · outside Ø72.24, pitch Ø72 mm at the heel · pitch angle 75.96° · face 10 mm · mounting distance 12.96 mm · bore Ø8 mm · no hub
The mesh · m 1 · 20° · straight, AGMA 2005 proportions
- ratio 4 : 1 · shaft angle 90° · straight teeth
The link opens the pinion and gear in the Bevel Gear Designer's 3D view. Change the teeth, the module or pitch, the shaft angle, the bores or hubs, then download STL, STEP or a drawing.
