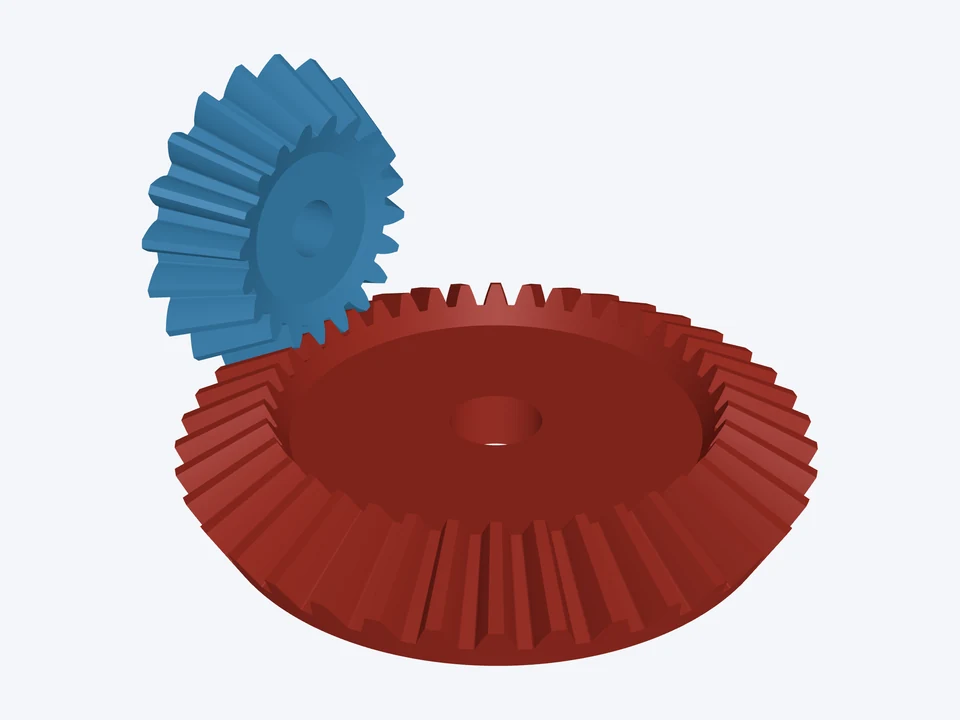

2 : 1 · module 2, 20 : 40
The classic 2 : 1 bevel pair, as stocked by gear catalogues.
What's in this design

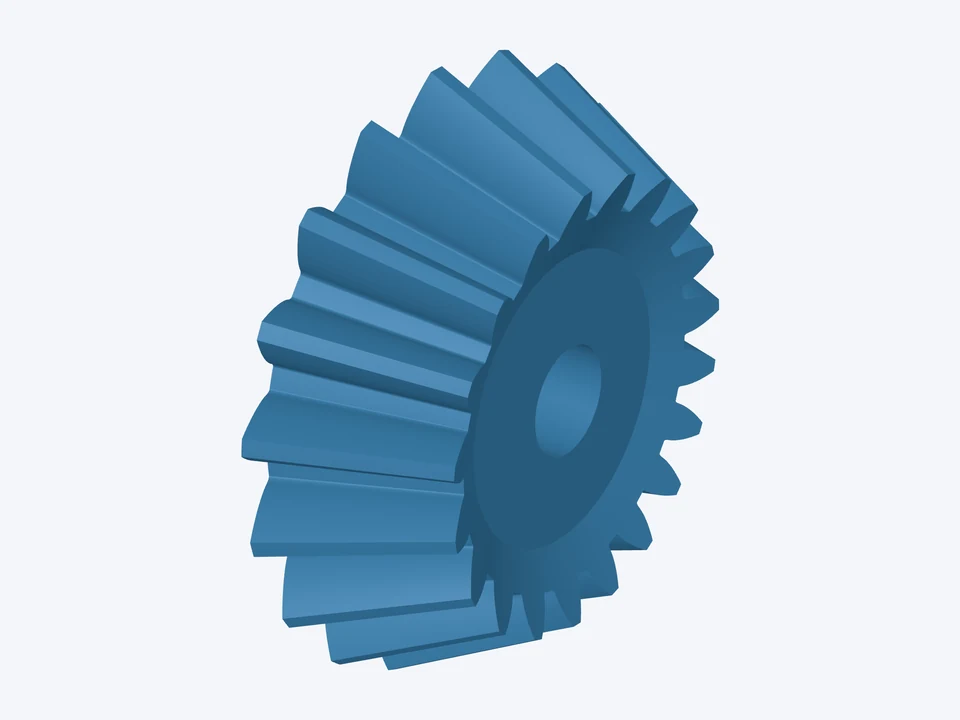

Pinion · 20 teeth
- 20 teeth · outside Ø44.81, pitch Ø40 mm at the heel · pitch angle 26.57° · face 12.5 mm · mounting distance 42.71 mm · bore Ø8 mm · no hub
Gear · 40 teeth
- 40 teeth · outside Ø81.17, pitch Ø80 mm at the heel · pitch angle 63.43° · face 12.5 mm · mounting distance 26.66 mm · bore Ø12 mm · no hub
The mesh · m 2 · 20° · straight, Gleason proportions
- ratio 2 : 1 · shaft angle 90° · straight teeth
The link opens the pinion and gear in the Bevel Gear Designer's 3D view. Change the teeth, the module or pitch, the shaft angle, the bores or hubs, then download STL, STEP or a drawing.
