Sample · m 1.5 · 20° · straight, AGMA 2005 proportions

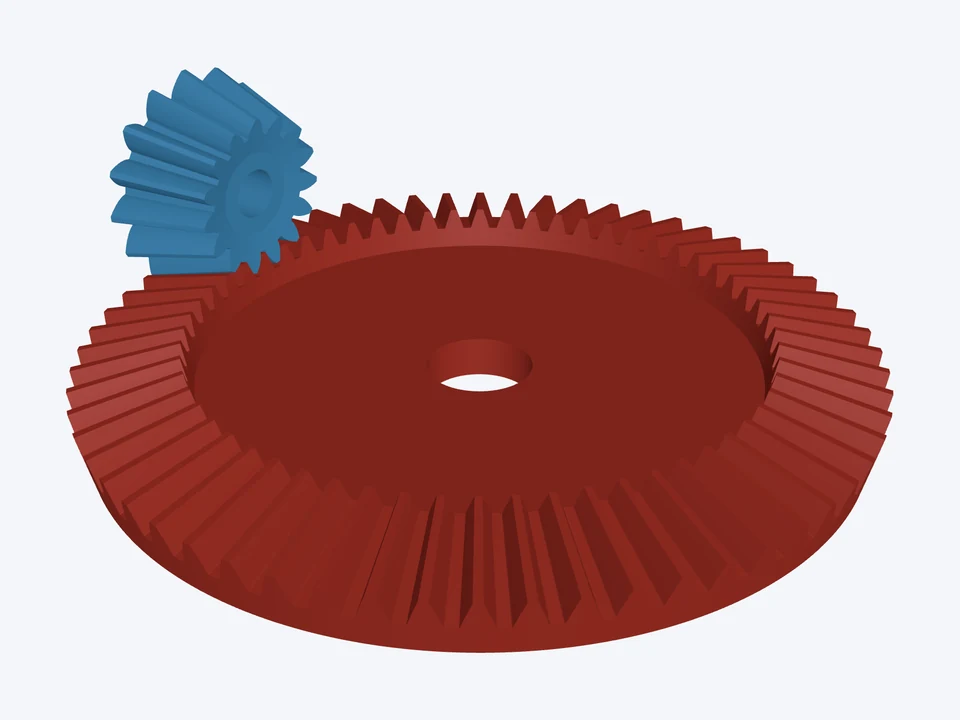

4 : 1 · module 1.5, 15 : 60
4 : 1 in one bevel pair, for slow right-angle outputs.
What's in this design

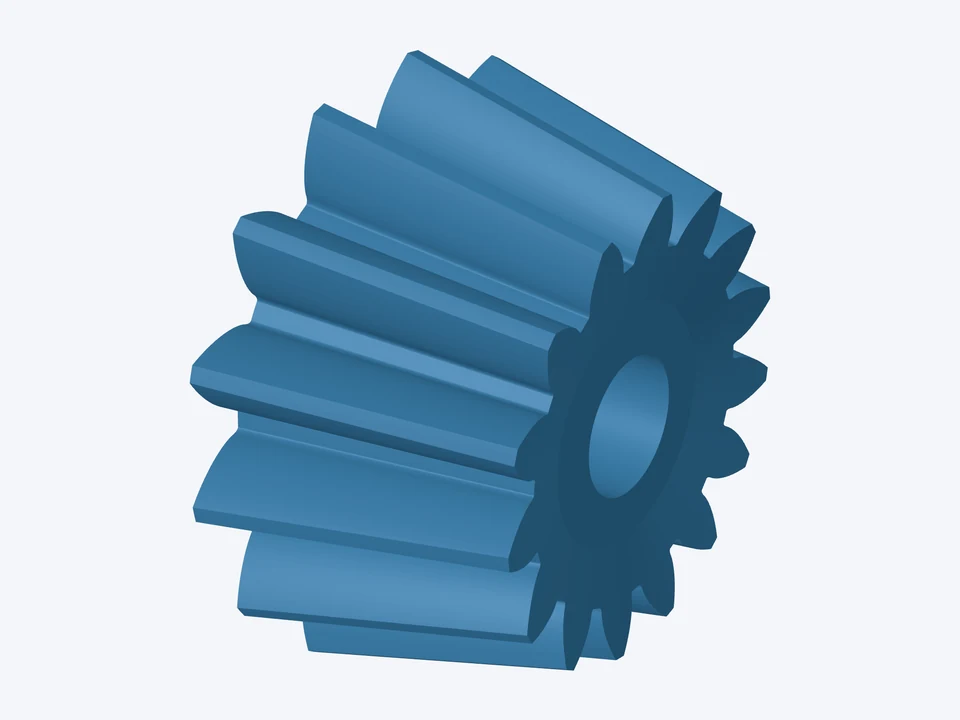

Pinion · 15 teeth
- 15 teeth · outside Ø27.09, pitch Ø22.5 mm at the heel · pitch angle 14.04° · face 12.5 mm · mounting distance 46.09 mm · bore Ø6 mm · no hub
Gear · 60 teeth
- 60 teeth · outside Ø90.36, pitch Ø90 mm at the heel · pitch angle 75.96° · face 12.5 mm · mounting distance 17.18 mm · bore Ø12 mm · no hub
The mesh · m 1.5 · 20° · straight, AGMA 2005 proportions
- ratio 4 : 1 · shaft angle 90° · straight teeth
The link opens the pinion and gear in the Bevel Gear Designer's 3D view. Change the teeth, the module or pitch, the shaft angle, the bores or hubs, then download STL, STEP or a drawing.
