1.5 : 1 · module 2, 20 : 30
A gentle right-angle reduction, Gleason proportions.
What's in this design

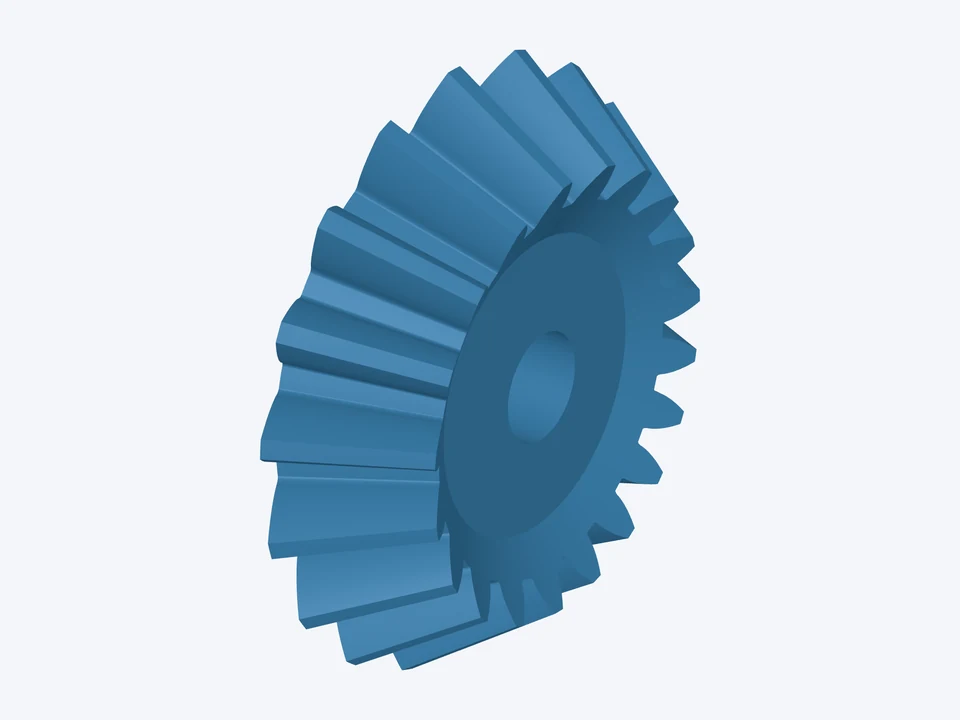

Pinion · 20 teeth
- 20 teeth · outside Ø44.18, pitch Ø40 mm at the heel · pitch angle 33.69° · face 10 mm · mounting distance 33.46 mm · bore Ø8 mm · no hub
Gear · 30 teeth
- 30 teeth · outside Ø61.65, pitch Ø60 mm at the heel · pitch angle 56.31° · face 10 mm · mounting distance 26.04 mm · bore Ø12 mm · no hub

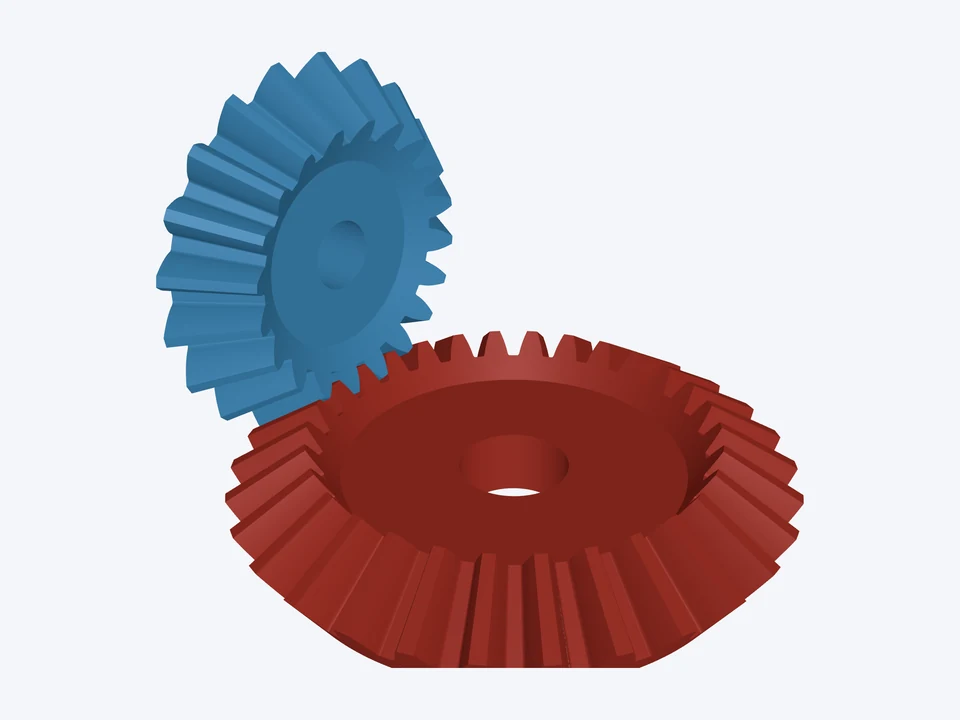

The mesh · m 2 · 20° · straight, Gleason proportions
- ratio 1.5 : 1 · shaft angle 90° · straight teeth
The link opens the pinion and gear in the Bevel Gear Designer's 3D view. Change the teeth, the module or pitch, the shaft angle, the bores or hubs, then download STL, STEP or a drawing.
