Sample · 10 DP · 14½°

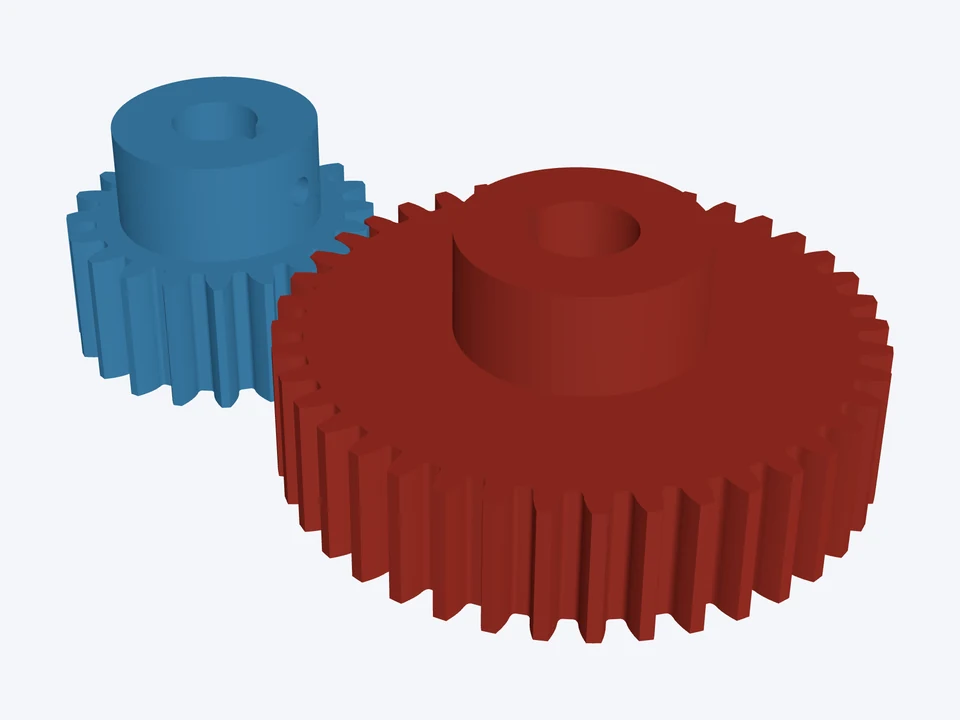

20T : 40T · 10 DP, 14½°

The classic catalogue pair: 10 DP, 14½° pressure angle, keyed inch bores and hubs.

Inch (diametral pitch)20 : 40

Build it with your AI

Using the CheapCAD Tools connector, design a two-gear drive in Gear Designer: diametral pitch 10, 14.5° pressure angle, face width 25.4 mm. Gear 1: 20 teeth, profile shift x = 0.45, a 15.875 mm bore with a keyway 4.7625 mm wide and 2.38 mm deep, a hub on one face, Hub OD 38 mm, Hub Height 19 mm, 1 1/4-20 set screw in a tapped hole. Gear 2: 40 teeth, a 19.05 mm bore with a keyway 4.7625 mm wide and 2.38 mm deep, a hub on one face, Hub OD 44 mm, Hub Height 19 mm, 1 1/4-20 set screw in a tapped hole. Check the design, apply any Auto-fix it suggests, then export both gears as STL and give me the download link.

Paste it into Claude, ChatGPT or any AI app with the CheapCAD Tools connector, and it designs this gear set with you, checks it and hands you the files. How to connect your AI.

What's in this design

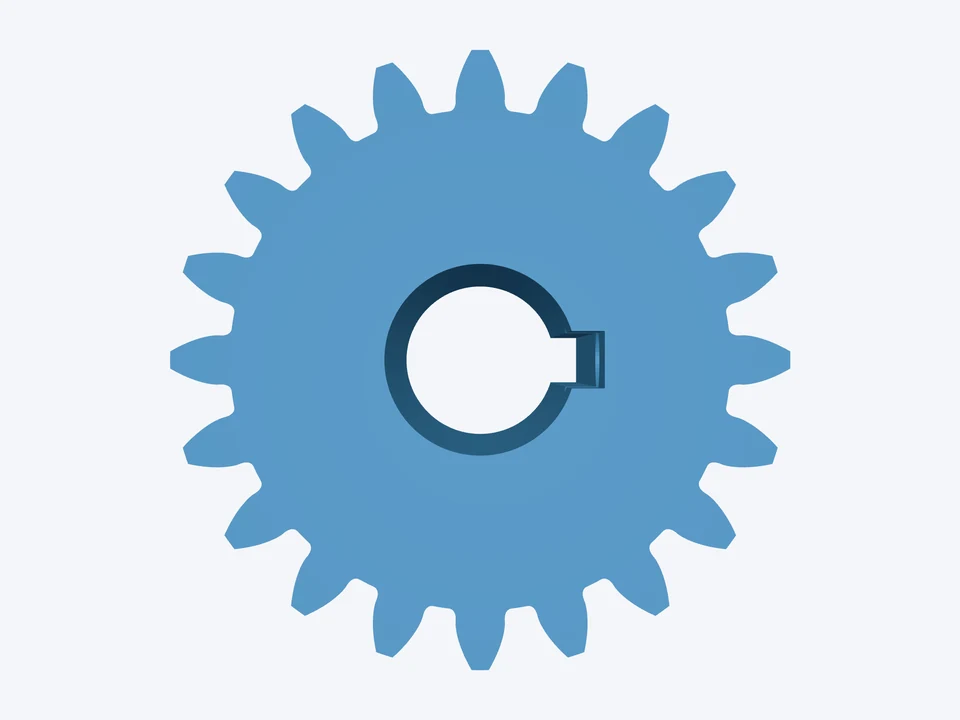

Gear 1 · 20 teeth

20T gear · tip Ø58 mm · x = 0.45 · bore Ø⅝", keyway 4.76 mm wide · hub Ø38, 1 × 1/4-20 set screw (tapped)

Gear 2 · 40 teeth

40T gear · tip Ø106.5 mm · bore Ø¾", keyway 4.76 mm wide · hub Ø44, 1 × 1/4-20 set screw (tapped)

The mesh · 10 DP · 14½°

ratio 2 : 1 · centre distance 77.24 mm · contact ratio 1.66 · backlash 0.14–0.26 mm

The link opens both parts in the Gear Designer's 3D Mode. Change the teeth, module or pitch, bore, hub or spokes, then download STL, STEP, DXF or SVG.
